Board To Board Connector

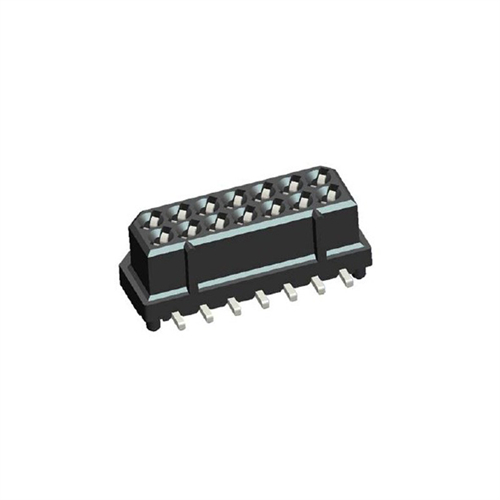

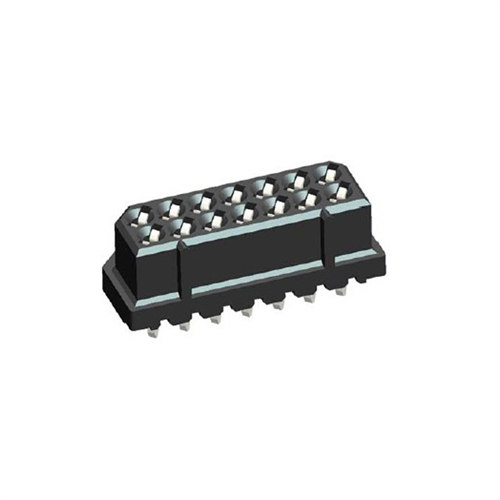

WL 3652-S XXX-042 XX ROX

Technical parameters: 1. Rated current: 1.0A AC/DC 2. Rated voltage: 50V AC/DC 3. Operating temperature: -40C ~ +85C 4. Storage temperature: -40C ~ +85C 5. Contact Impedance: 100m ohms max. 6. Withstand voltage: 500V AC / 1 minute 7. Insulation resistance: 1000M ohms min./500VDC 8. Durability: 1500 times 9. Product temperature resistance: 2605C 10S 10. Flatness: 0.10mm MAX. 11. RoHS compliant 12. Stable and superior performance Product Description: 1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.; 2. Inspection of this product Process is: IQC feed inspection - into the warehouse - before the on-line self-test - IPQC inspection - FQC final inspection - OQC out of the cargo inspection 3. This product produ
INQUIRY EMAIL

Technical parameters:
1. Rated current: 1.0A AC/DC
2. Rated voltage: 50V AC/DC
3. Operating temperature: -40°C ~ +85°C
4. Storage temperature: -40°C ~ +85°C
5. Contact Impedance: 100m ohms max.
6. Withstand voltage: 500V AC / 1 minute
7. Insulation resistance: 1000M ohms min./500VDC
8. Durability: 1500 times
9. Product temperature resistance: 260±5°C 10S
10. Flatness: 0.10mm MAX.
11. RoHS compliant
12. Stable and superior performance
Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

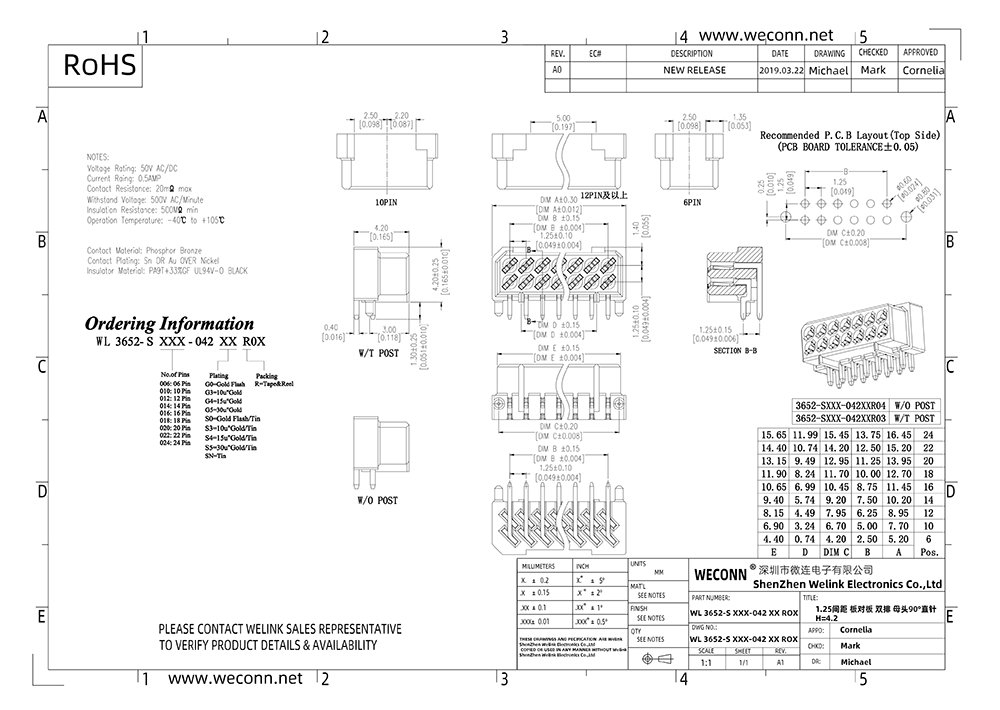

Drawing:
