Board To Board Connector

WL-BTB331-MXXX059XXXX0X

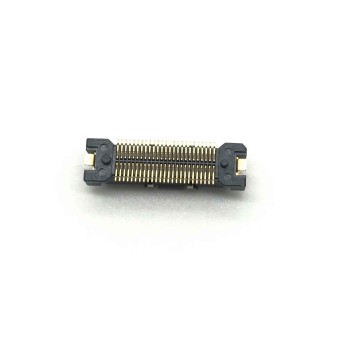

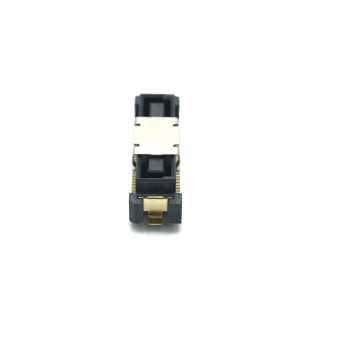

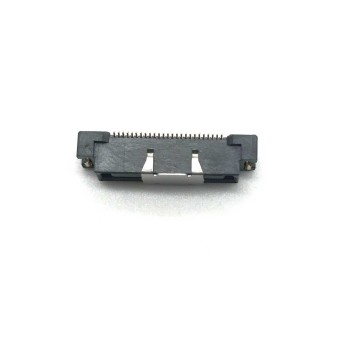

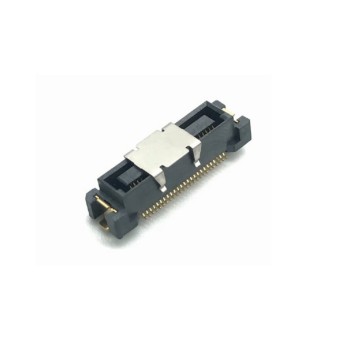

Product name: Board To Board Connector.
Number:WL-BTB331-MXXX059XXXX0X
Specifications: 0.635mm pitch/Male header/5.9H/SMT/30/40/50/52Pin
INQUIRY EMAIL

Technical Parameters:

1.Electical Rating:AC/DC 50V 0.5A

2.Insulation Resistance:500MΩ

3.Withstang Volt:200V AC/minute

4.Operating Temperature:-40℃ to+105℃

5.Contact:Phosphor Bronze

6.Plating:Au or Sn Over Ni

7.Housing:LCP

8.Max.Processing Temp: 260°C±5°C 5S

Product Description:

1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

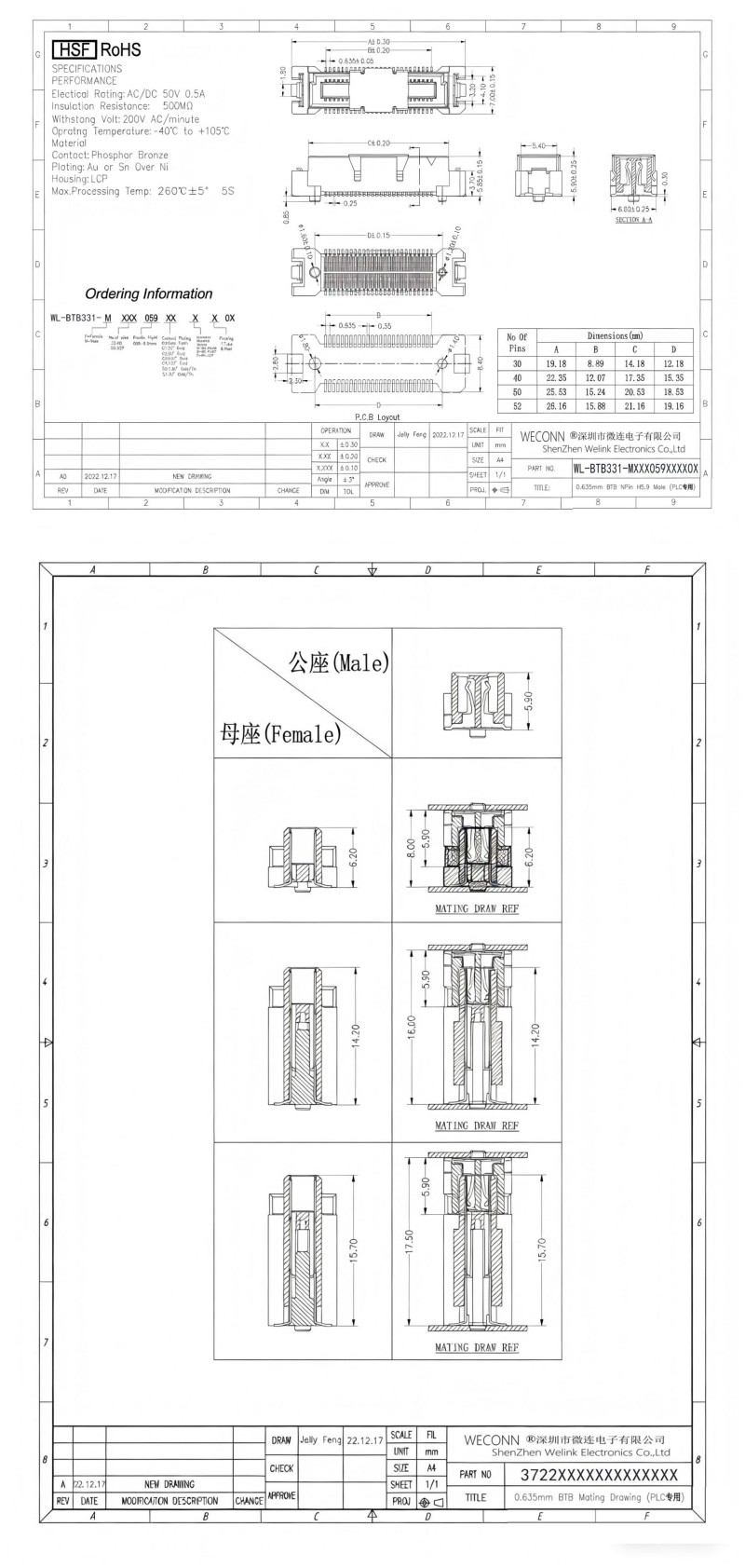

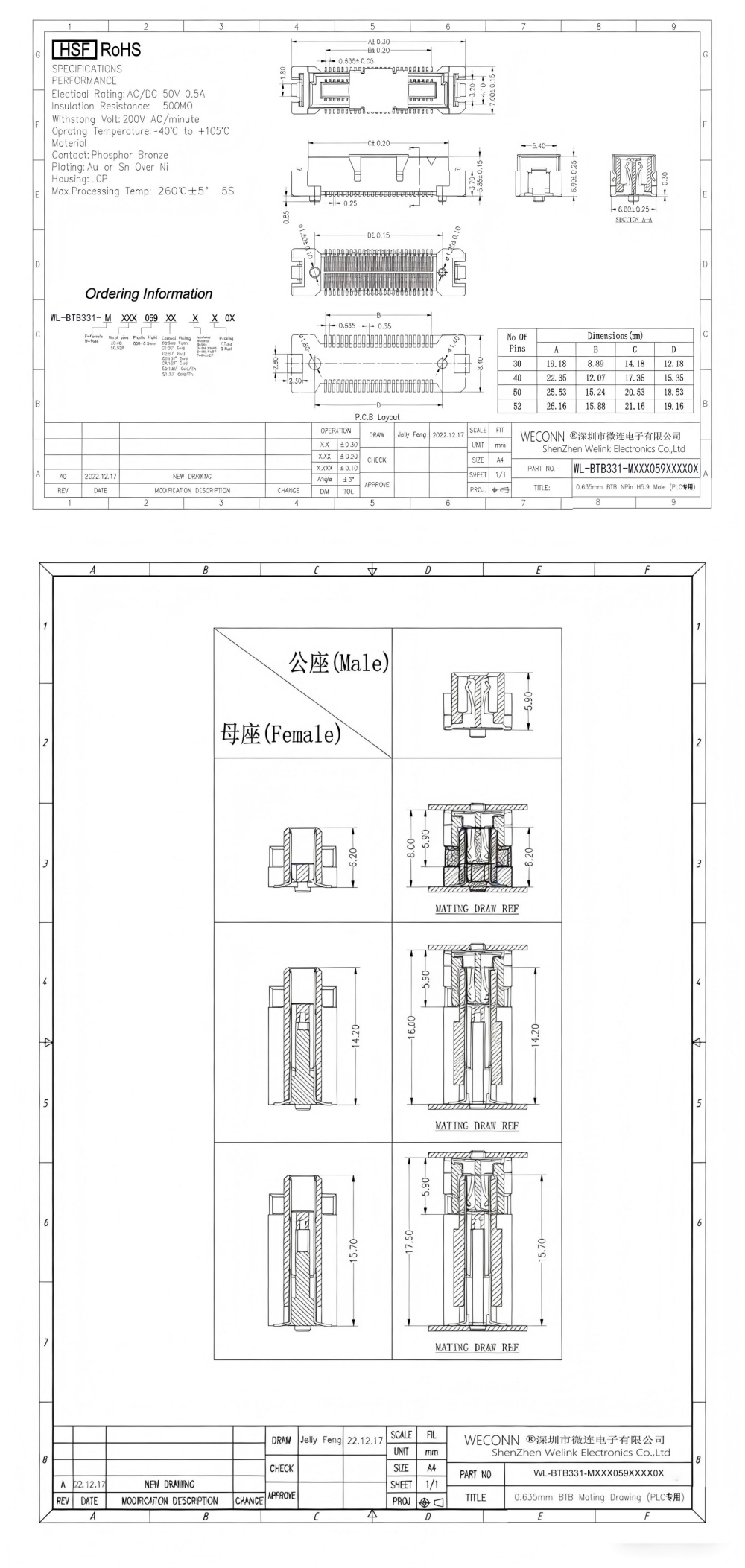

Drawing:
