Technical parameters:
1.Current rating: 0.4A
2.Voltoge rating: 100V AC
3.Insulation Resistance: 1000MΩ min
4.Withstanding voltage: 300V AC/1 min
5.Contact Resistonce: 45mΩ max
6.Operating Temperature: -40℃ to +105°C
7.Contact: Phosphor Bronze
8.Housing:PA9T, UL94-V0
9.Soldering temperature: 260℃±5℃ 5S
Product Description:
1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

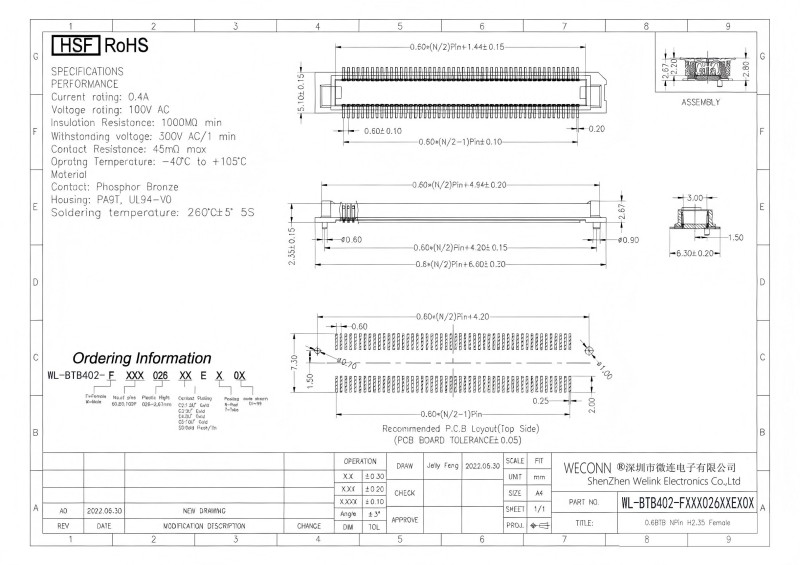

Drawing:
