Technical parameters:
1.Electiool Roting: AC/DC 50V 0.5A
2.Insulation Resistonce: 500MΩ Min
3.Withstond Volt: 200V AC/minute
4.Contoct Resistonce:50mΩ Mox
5.Oprotng Temperature:-40C to +105℃Material
6.Contoct: Phosphor Bronze Gold-Plated
7.Housing:LCP UL94V0 Mox.Processing
8.Ternp: 260℃±5℃ 5S
Product Description:
1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

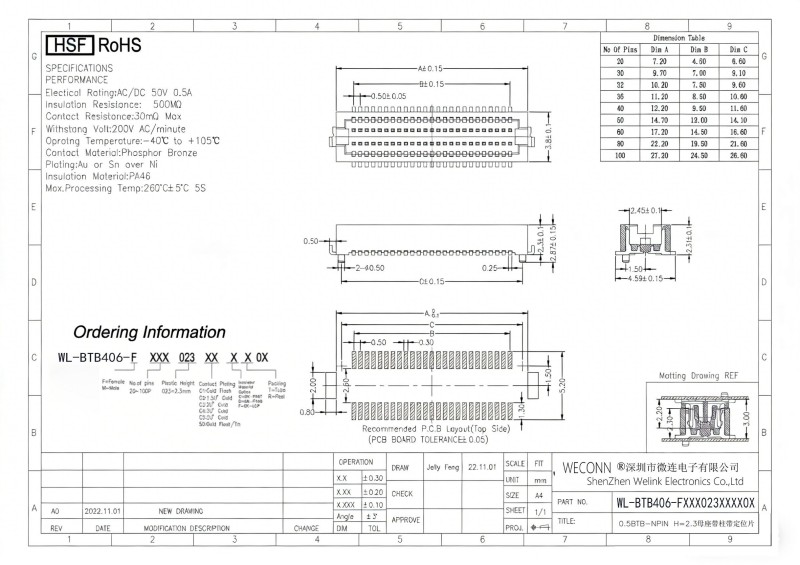

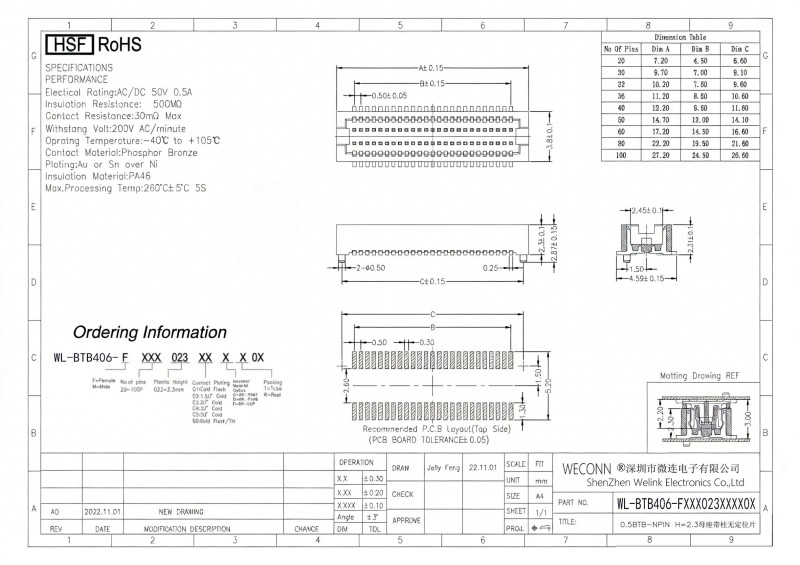

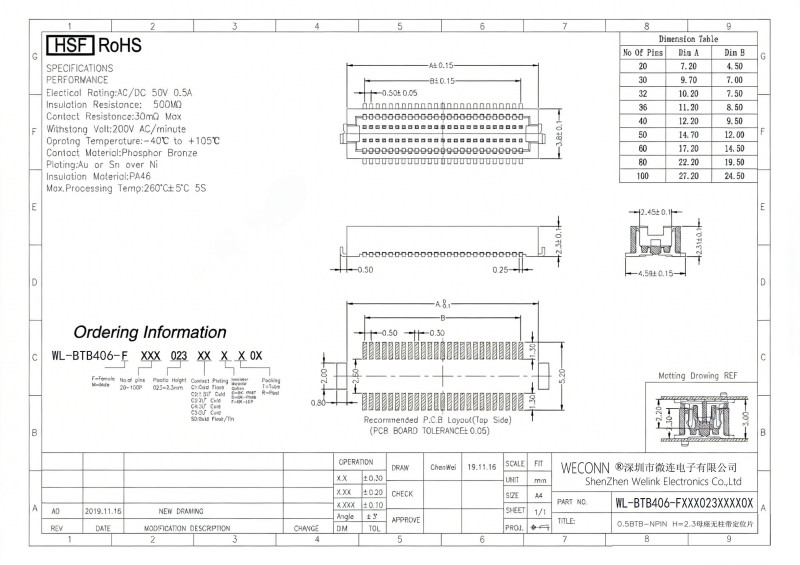

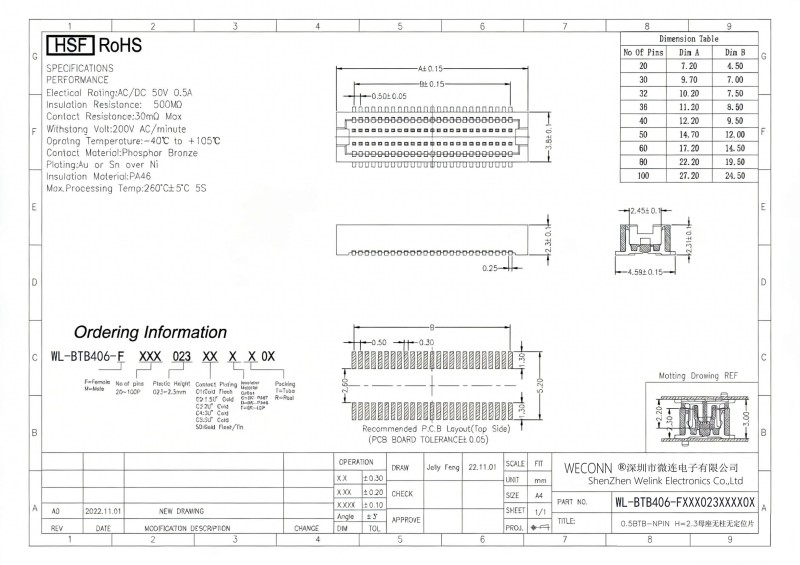

Drawing:
