Board To Board Connector

WL-EBTB428-MXXX067XXFX0X

Product name: E-Type Board to Board connector.
Number:WL-EBTB428-MXXX067XXFX0X
Specifications: 1.27mm E-type connector NPin H6.7 Male
INQUIRY EMAIL

Technical parameters:

1.Rated Current:1.0AMP
2.Contact Resistance:25MΩ Max

3.Withstand Voltage:500V

4.Insulation Resistance:1000MΩ Min

5.Operation Temperature:-55°c to +125°c

6.Contact Material:Phosphor Bronze
7.Contact Plating:Sn and Au over Ni
8.Tail Material:Phosphor Bronze
9.Tail Plating: Sn over Ni
10.Main Body Material: LCP UL94V0
11.Cover Material:LCP UL94V0
12.Resistance To Soldering Heat:260° C+5° C, 10s(LCP insulator)

Product Description:

1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

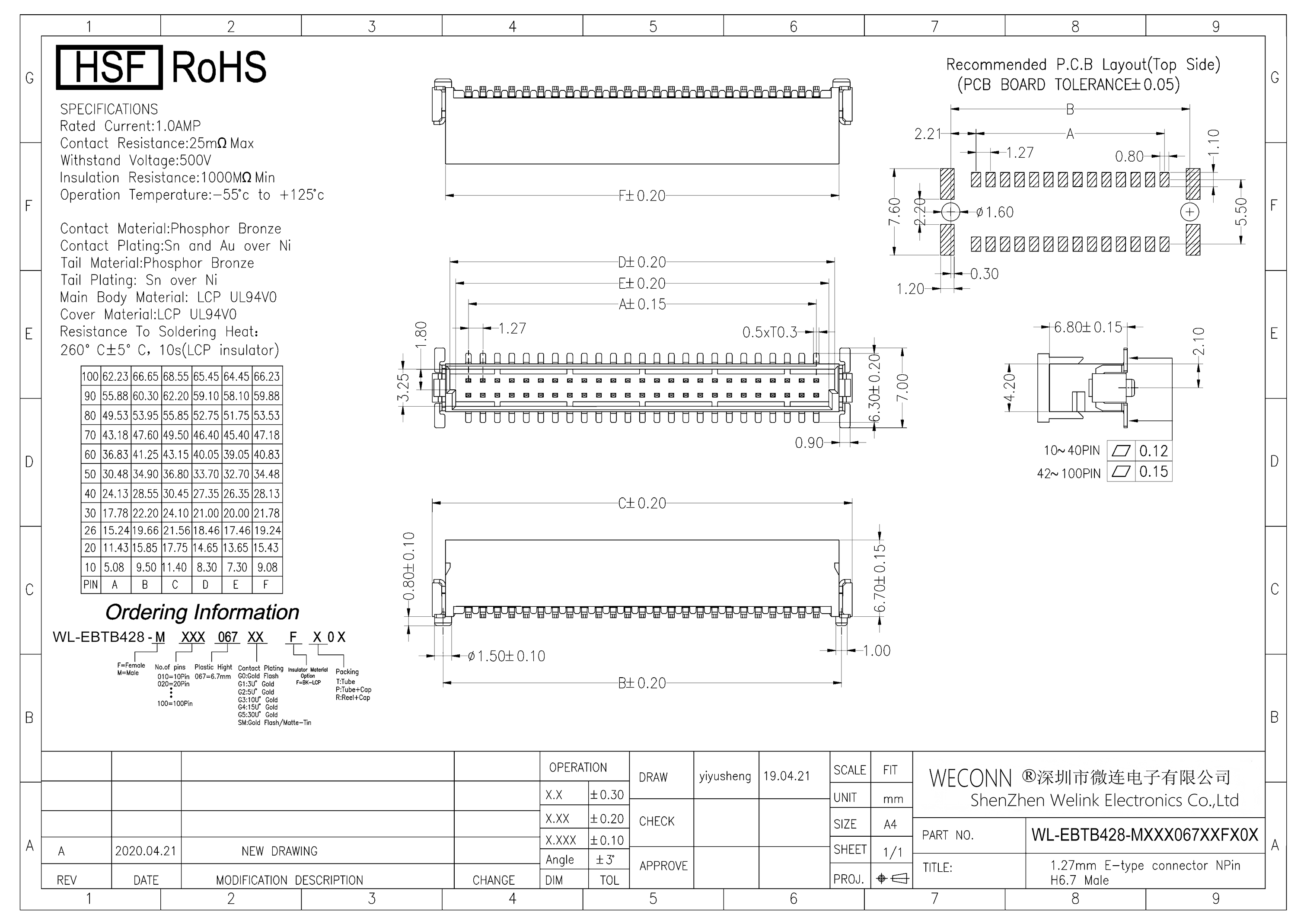

Drawing:
