Board To Board Connector

WL-FBTB422-FXXX060XXFR0X

Product name: Floating Board to Board connector.
Number: WL-FBTB422-FXXX060XXFR0X
Specifications: 0.5mm Pitch / Female header/6.0H /SMT /40/60/80Pin
INQUIRY EMAIL

Technical parameters:

1.Signal terminal Current Rating: 0.5A

2.Power terminal Current Rating:5A

3.Contoct Resistonce: 80mΩ Max

4.Insulation Resistonce: 500MΩ Min

5.Withstond Volt: 200V AC/minute

6.Oprotng Temperature:-40C to +105℃Material

7.Contact:Phosphor Bronze,3u"MIN Gold Plated In Contact Aera,Gold Flash Plated In Solder Area,

50u"~240u” Nickel Underplated Over all.

8.Ground: Brass,8Ou” Min Matte Tin Plated Over50u” Min Nickel Underplated Over all.

9.Housing:LCP UL94V0 Max.Processing

10.Temp:230°C for 30-60 seconds (260C for 10 seconds)

Product Description:

1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

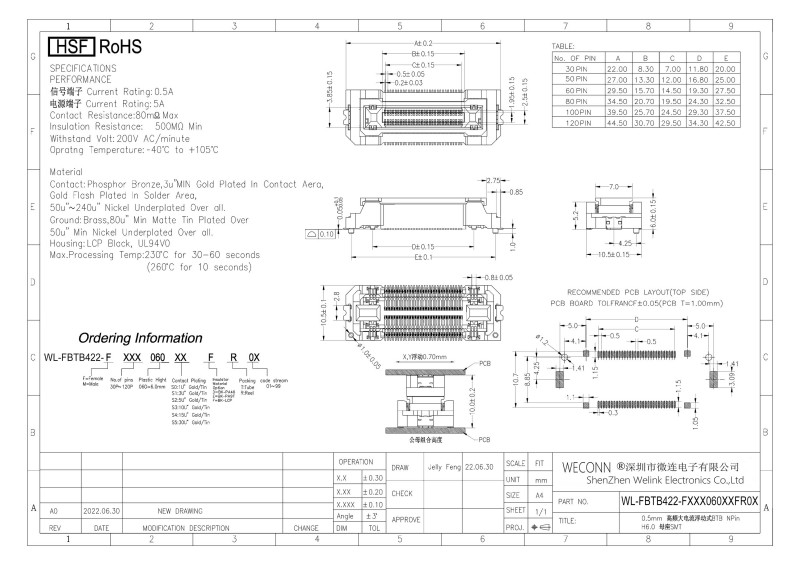

Drawing:
