Technical parameters:
1.Rated Current:1.0AMP
2.Contact Resistance:25mΩ Max
3.Withstand Voltage:500V
4.Insulation Resistance:1000MΩ Min
5.Operation Temperature:-55°C to +125°C
6.Contact Material:Phosphor Bronze
7.Contact Plating:Sn and Au over Ni
8.Tail Material:Phosphor Bronze
9.Tail Plating: Sn over Ni
10.Main Body Material: LCP UL94V0
11.Resistance To Soldering Heat: 260° C+5° C, 10s(LCP insulator)
Product Description:
1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

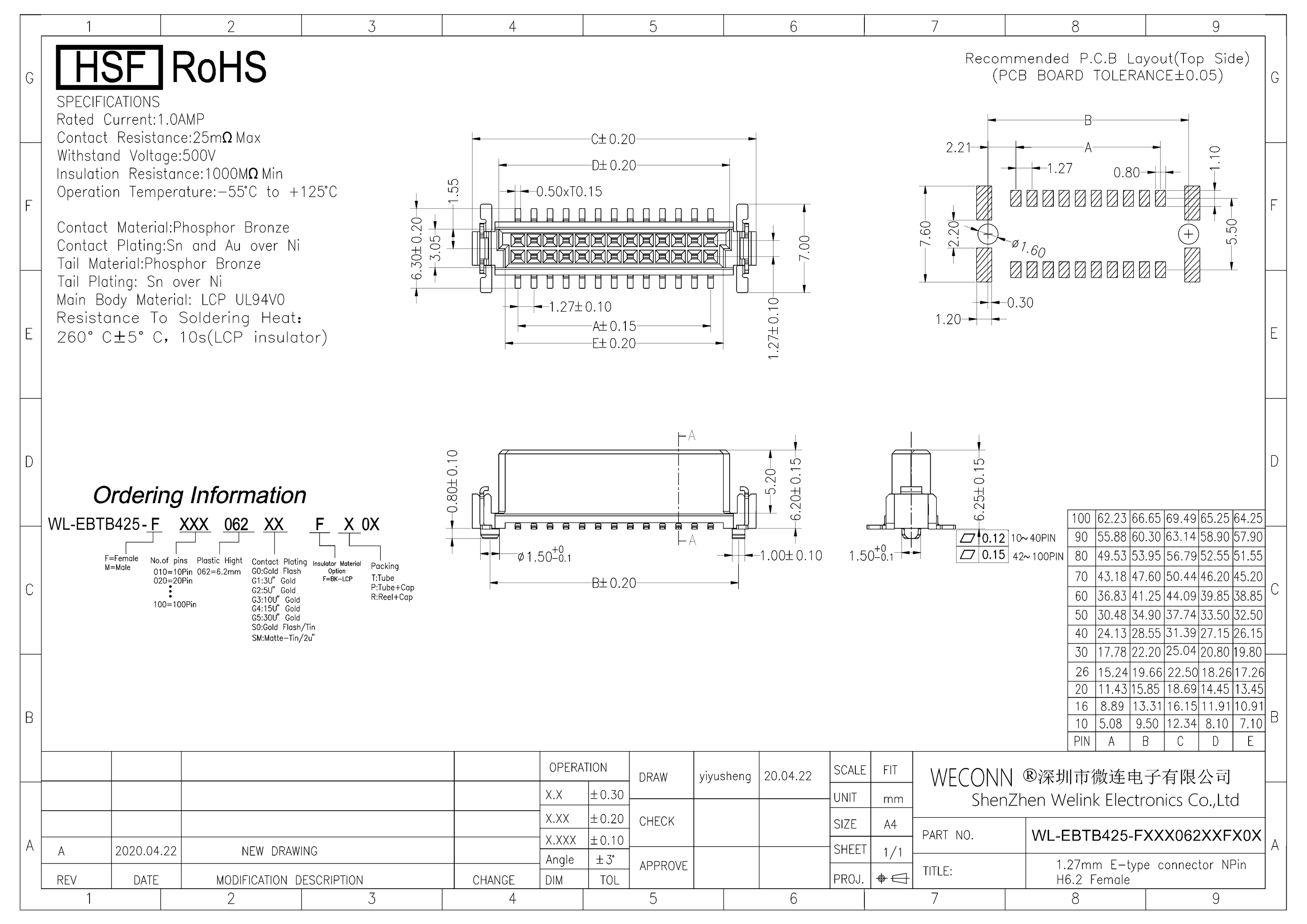

Drawing:
