Automotive connector

WL-AC525-203XXAB0X

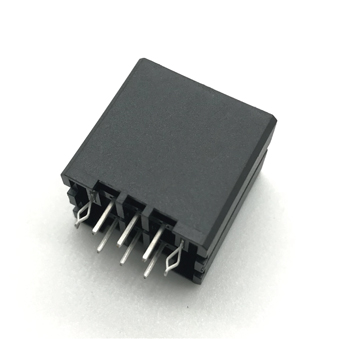

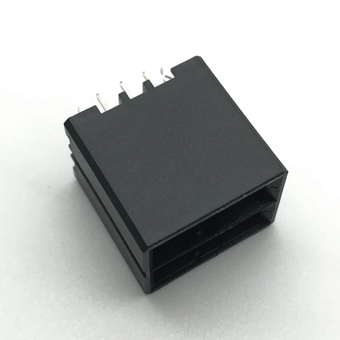

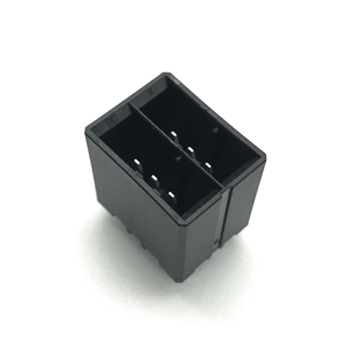

Product name: Type A Connector Housing(1-178141-5)
Number: WL-AC525-203XXAB0X
Specifications: 6Pin/3.81mm Pitch/ST
INQUIRY EMAIL

Technical parameters:
1.Rated Current:5.0A MP
2.Contoct Resistance:20mΩ Max
3.Withstand Voltage:1000v AC/DC
4.Insulation Resistance:1000MΩ Min
5.Operation Temperature;-40C to +105℃
6.Contoct Matericl:Phosphor Bronze
7.Contoct Plating:Au or Sn Over Ni
8.Retention LEG:Copper Alloy
9.Retention LEG Plating:Tin Over Ni
10.Insulator Material:Polyester(UL94V-0)
11.Standard:PBT
12.Max.Processing Temp: 230C±5C 5S

Product Description:
1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

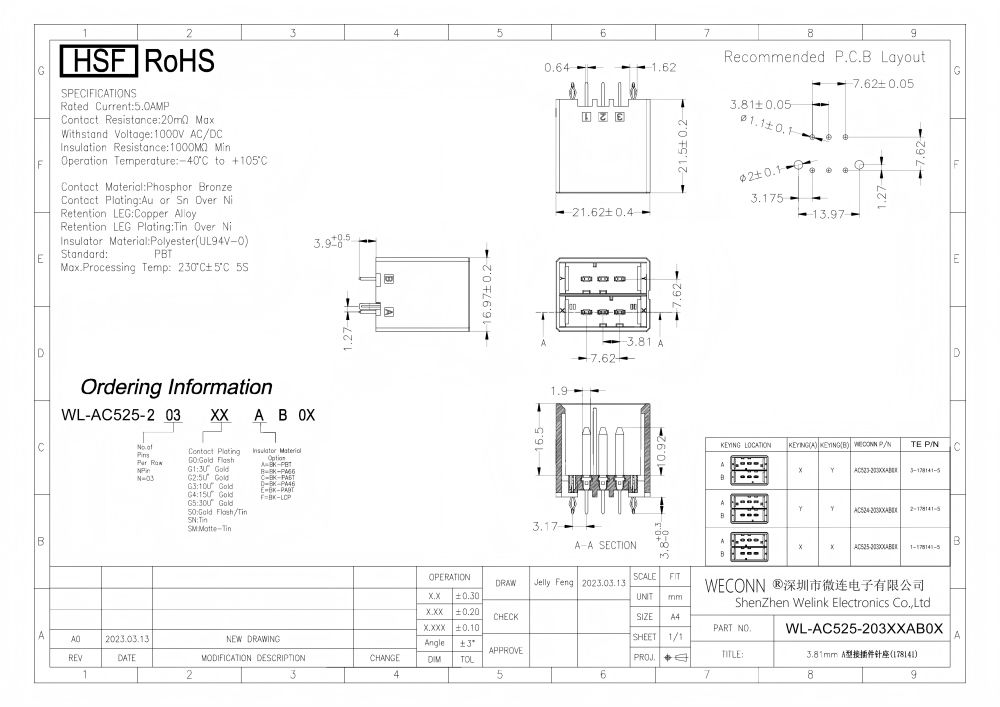

Drawing:
