Automotive connector

WL-AC518-A5083-03B0X

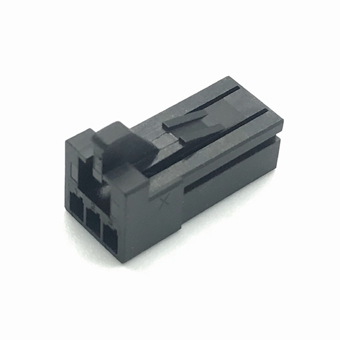

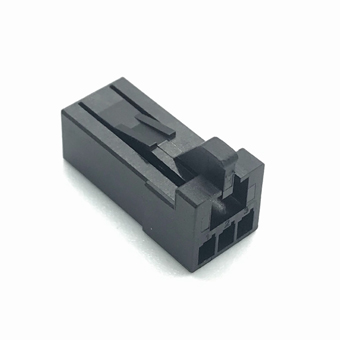

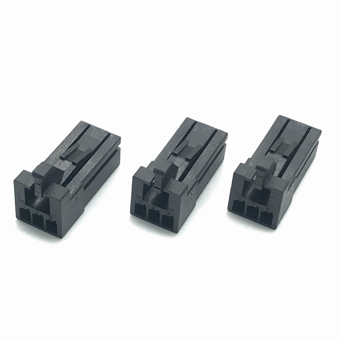

Product name: Type A Connector Housing(1-1318120-3)
Number: WL-AC518-A5083-03B0X
Specifications: 3Pin, 2.5mm Pitch,Crimp
INQUIRY EMAIL

Technical parameters:

1.Rated Current: 3.0A AMP
2.Contact Resistance: 20 mΩ Max
3.WithstandVoltage: 250AC/DC
4.Insulation Resistance: 1000 MΩ Min
5.Operating Temperature:-55C~ +105°C
6.Contact Material: Phosphor Bronze
7.Contact Plating: Gold
8.Insulation Material:Polyester(UL94-0)
9.Housing:PBT
10.Max. Processing Temp: 245±5°C For 30-60 Seconds;245±5°C For 10 Seconds

Product Description:

1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

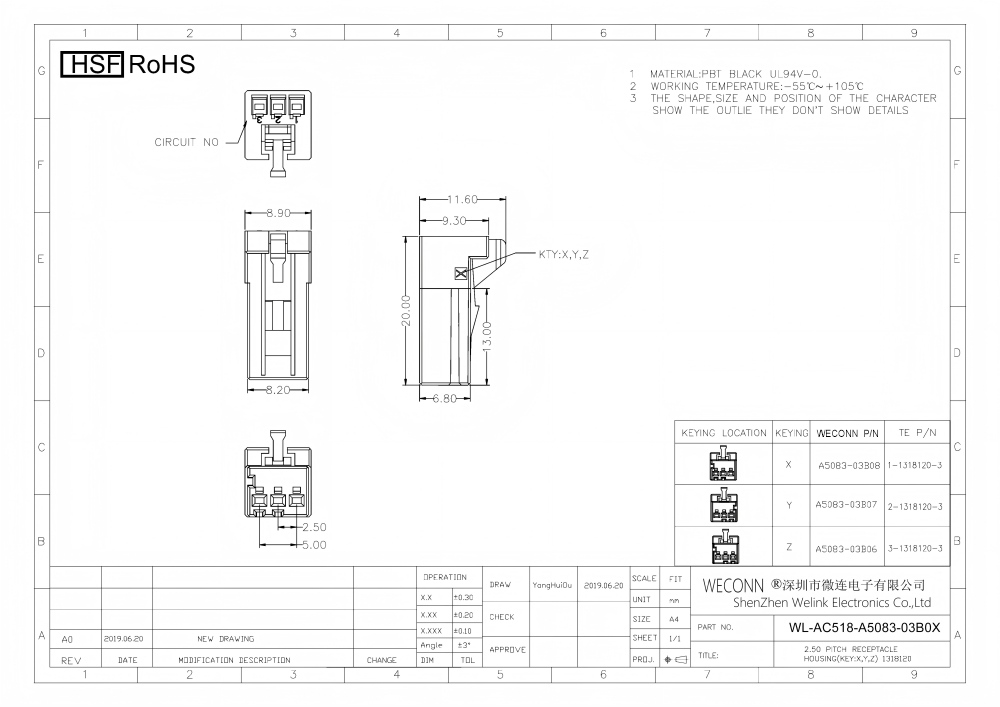

Drawing:
