Inquiry:
Technical parameters:
1.Electical Rating: AC/DC 50V 0.5A
2.Insulation Resistance: 500MΩ Min
3.Withstand Volt: 200V AC/minute
4.Contact Resistance:30mΩ Max
5.Operating Temperature:-40℃ to +105℃
6.Contact: Phosphor Bronze Gold-Plated
7.Housing:LCP UL94V0
8.Max.Processing Temp: 260℃±5℃ 5S
9.Flatness:<80Pins The "M" Is 0.12mm Max
≥80Pins The "M" Is 0.15mm Max
Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

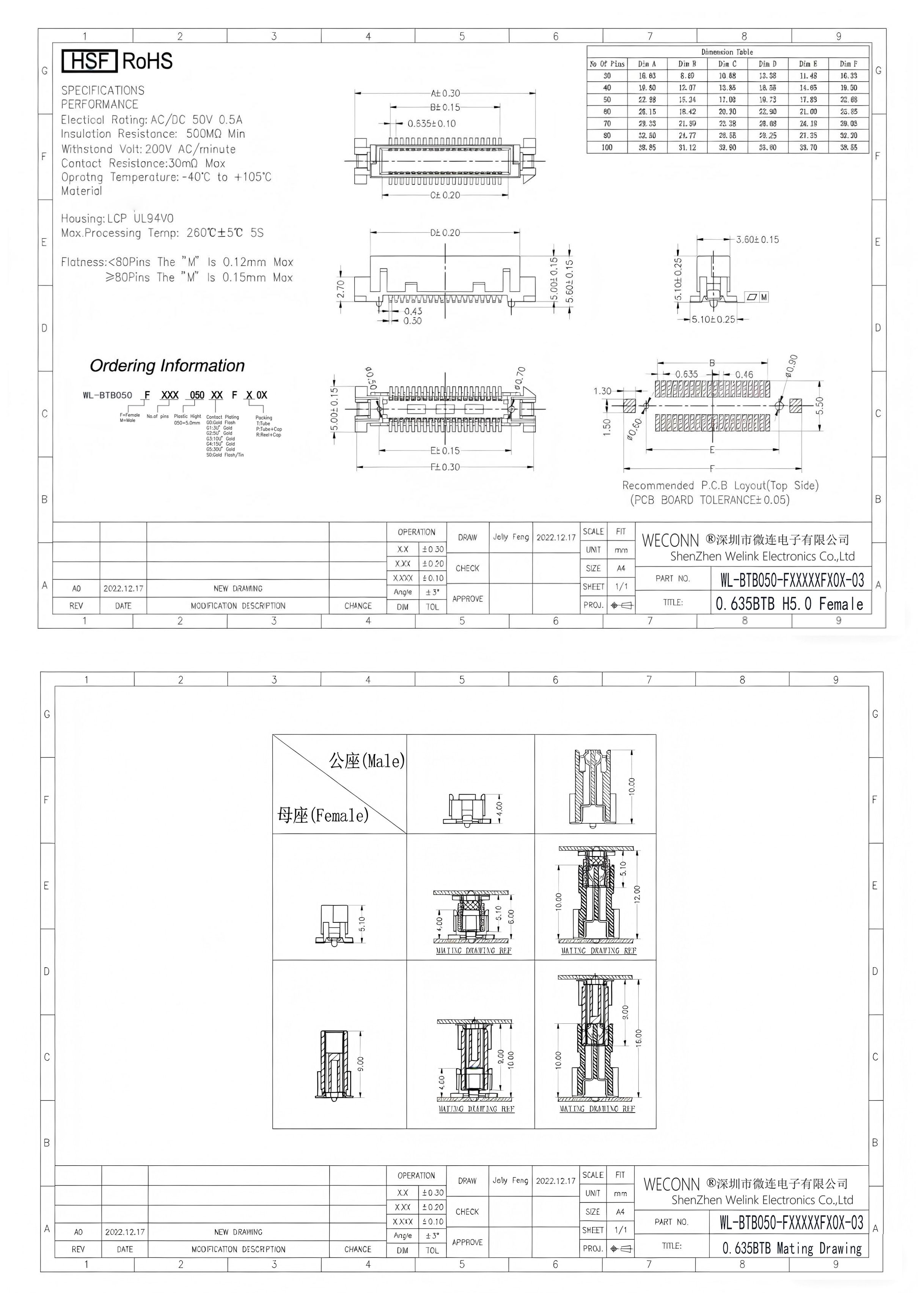

Drawing:
