Board To Board Connector

WL-BTB373-FXXXXXXXXXR0X

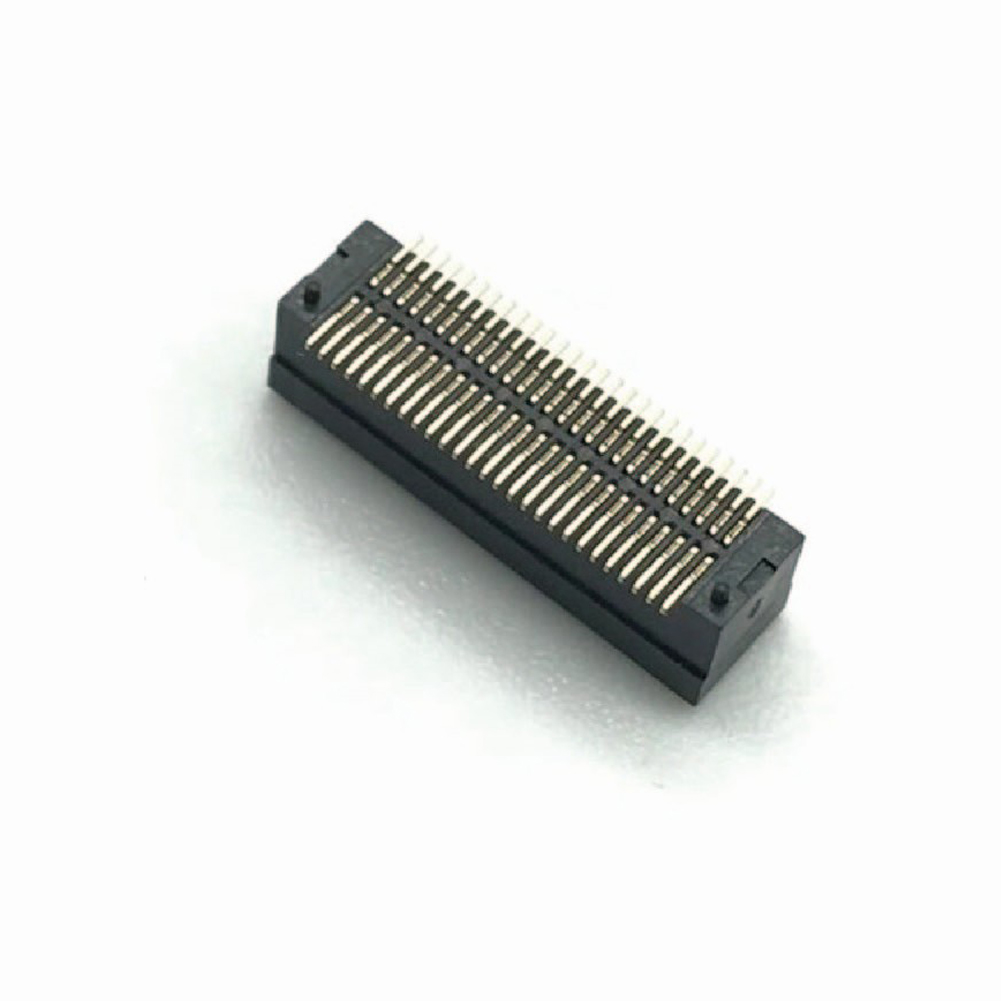

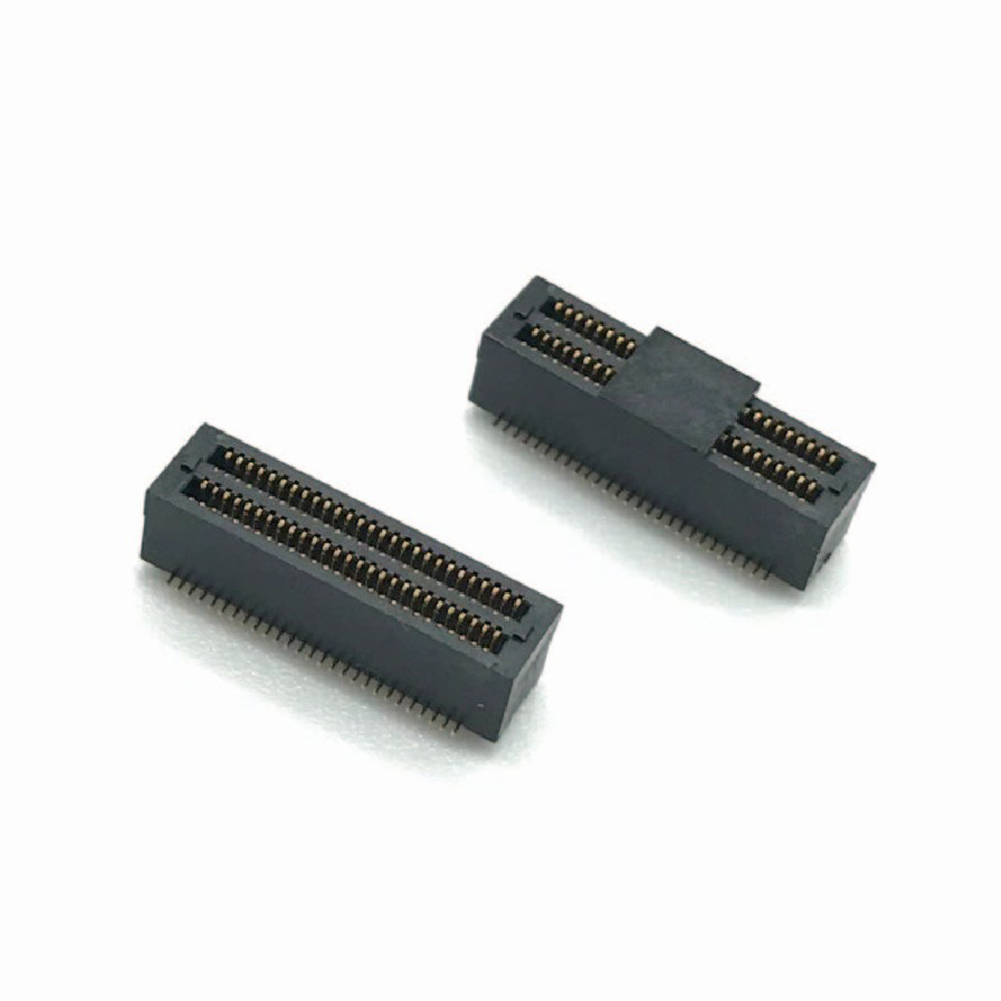

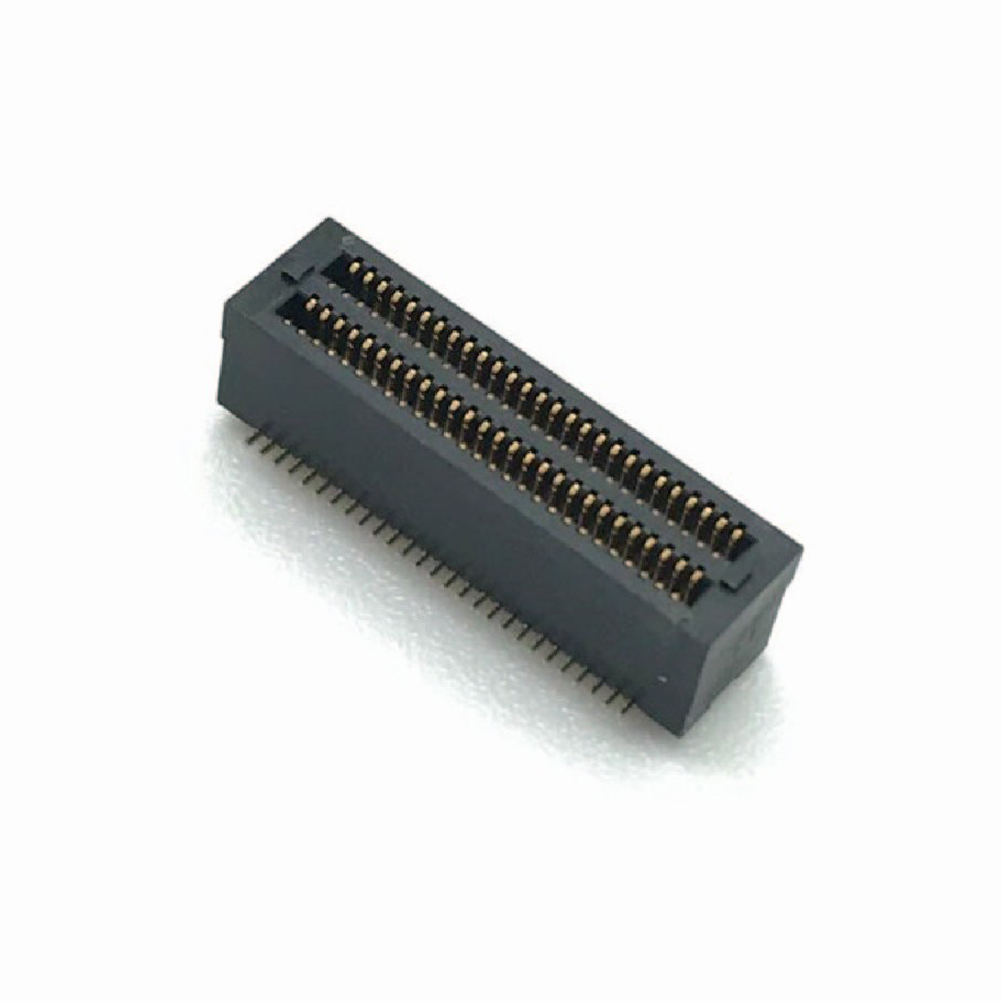

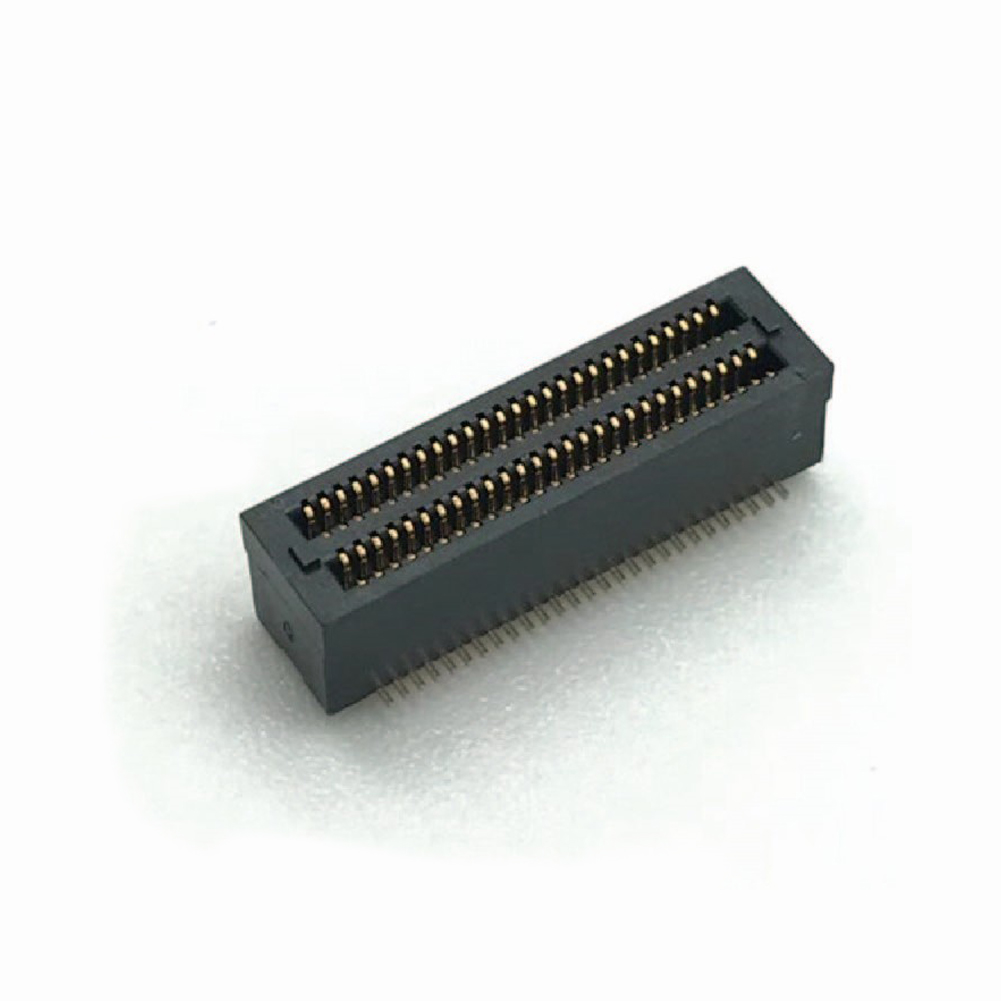

Product name: Automotive connector Board To Board Connector.
Number:WL-BTB373-FXXXXXXXXXR0X.
Specifications:female connector,0.5mm pitch,4.5H,SMT,double groove
INQUIRY EMAIL

Technical Parameters:
1. Current Rating: 0.5A
2. Voltage Rating: 50V AC/DC
3. Operating Temperature: -40°C ~ +105°C
4. Contact Resistance: 50MΩ max.
5. Withstand Voltage: 200V AC / 1 minute
6. Insulation Resistance: 500MΩ Min
7. Contact:Phosphor Bronze
8. Contact:Au Over Ni
9. Housing:PA9T,UL94-V0
10. Soldering Temperature: 260°C±5°C 5S

Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

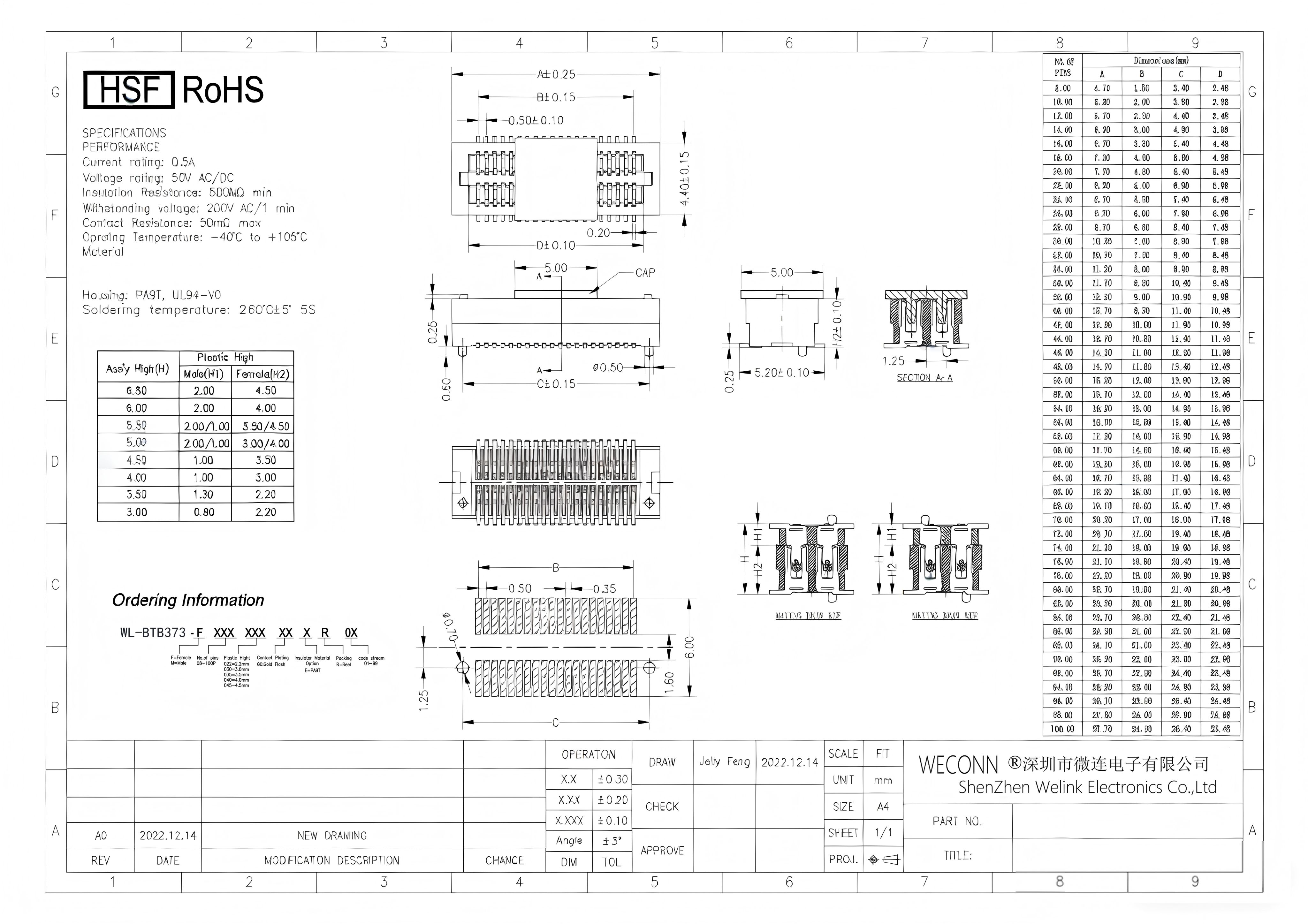

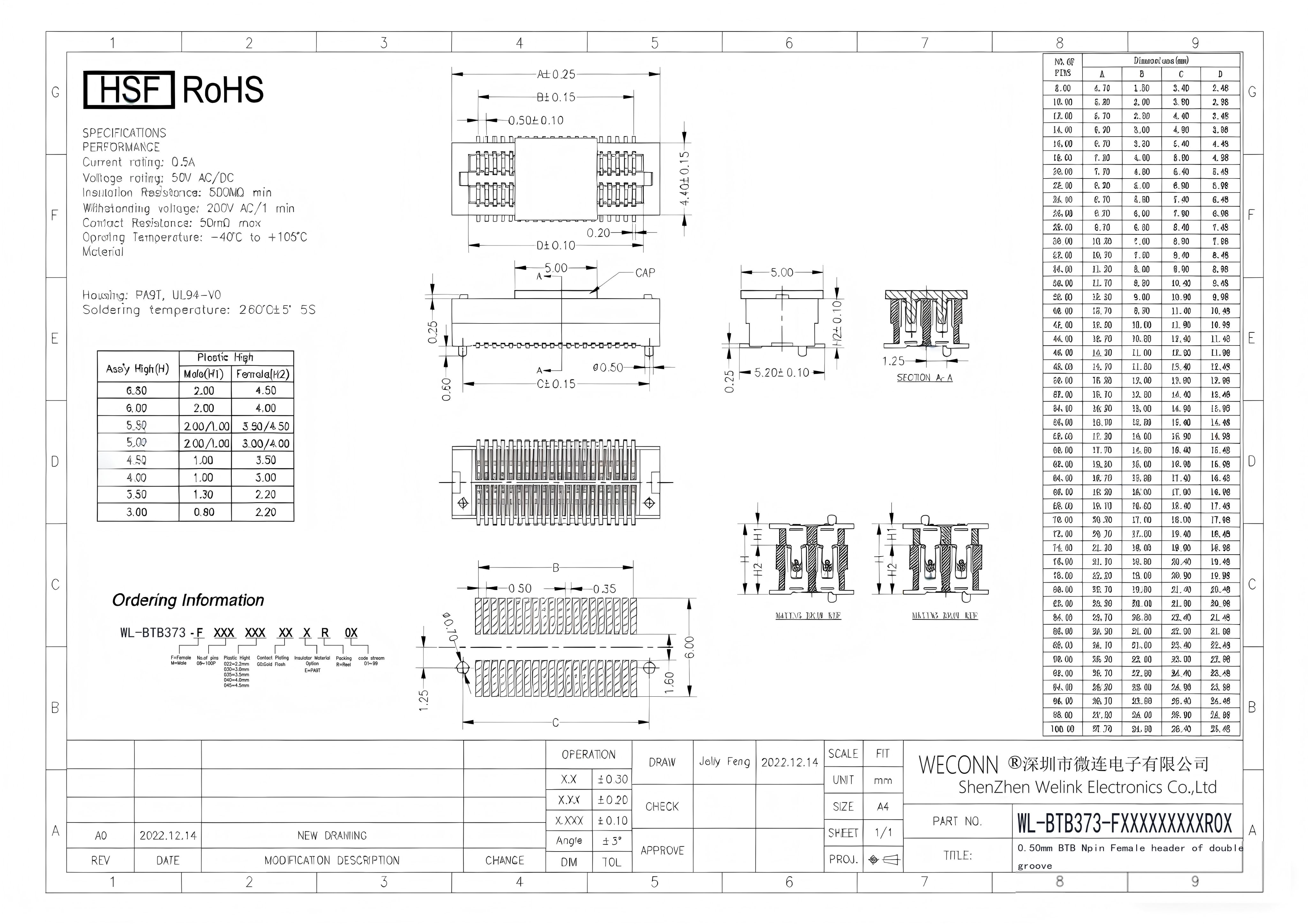

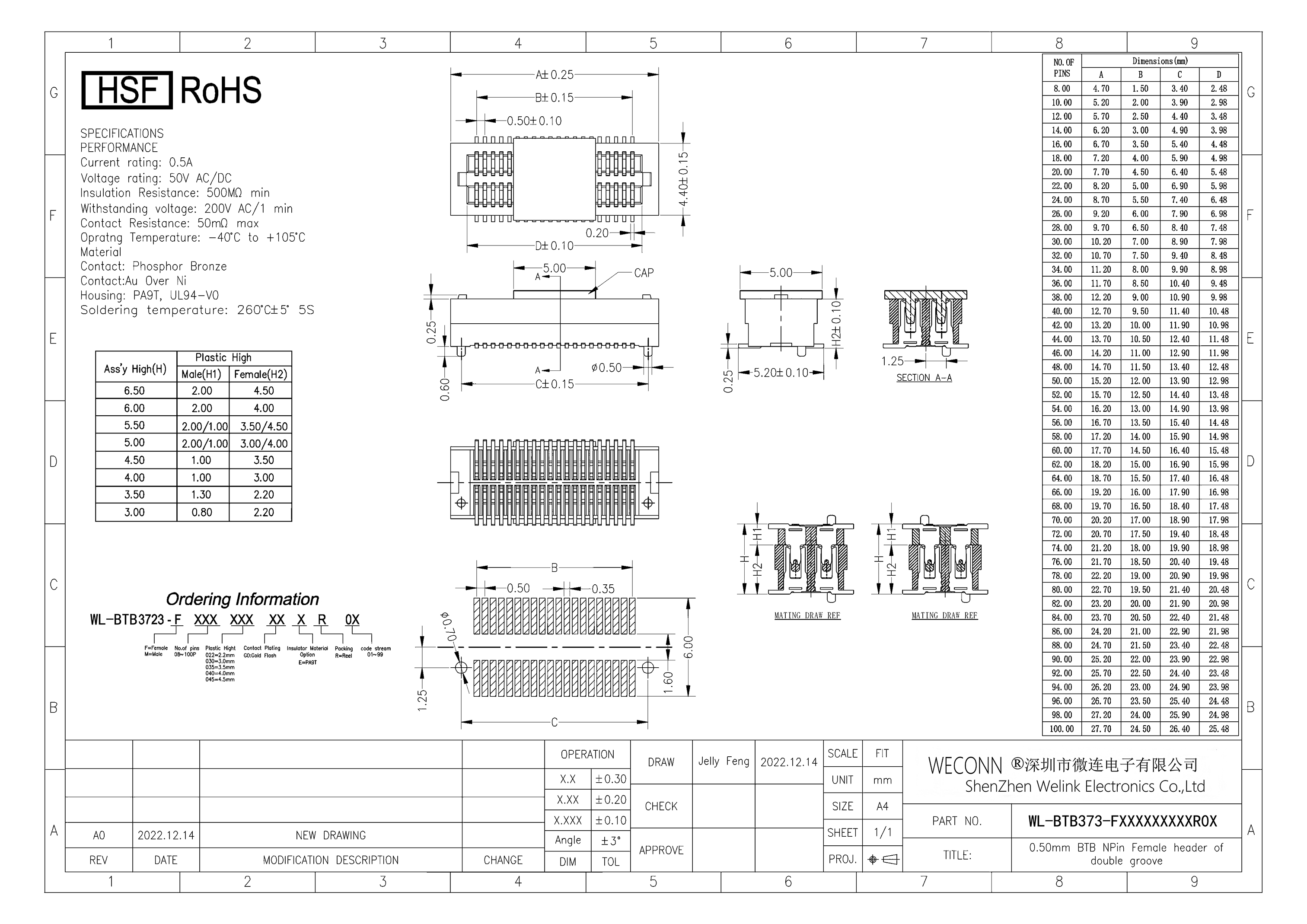

Drawing:
