HDMI connector

WL-HD19P-085

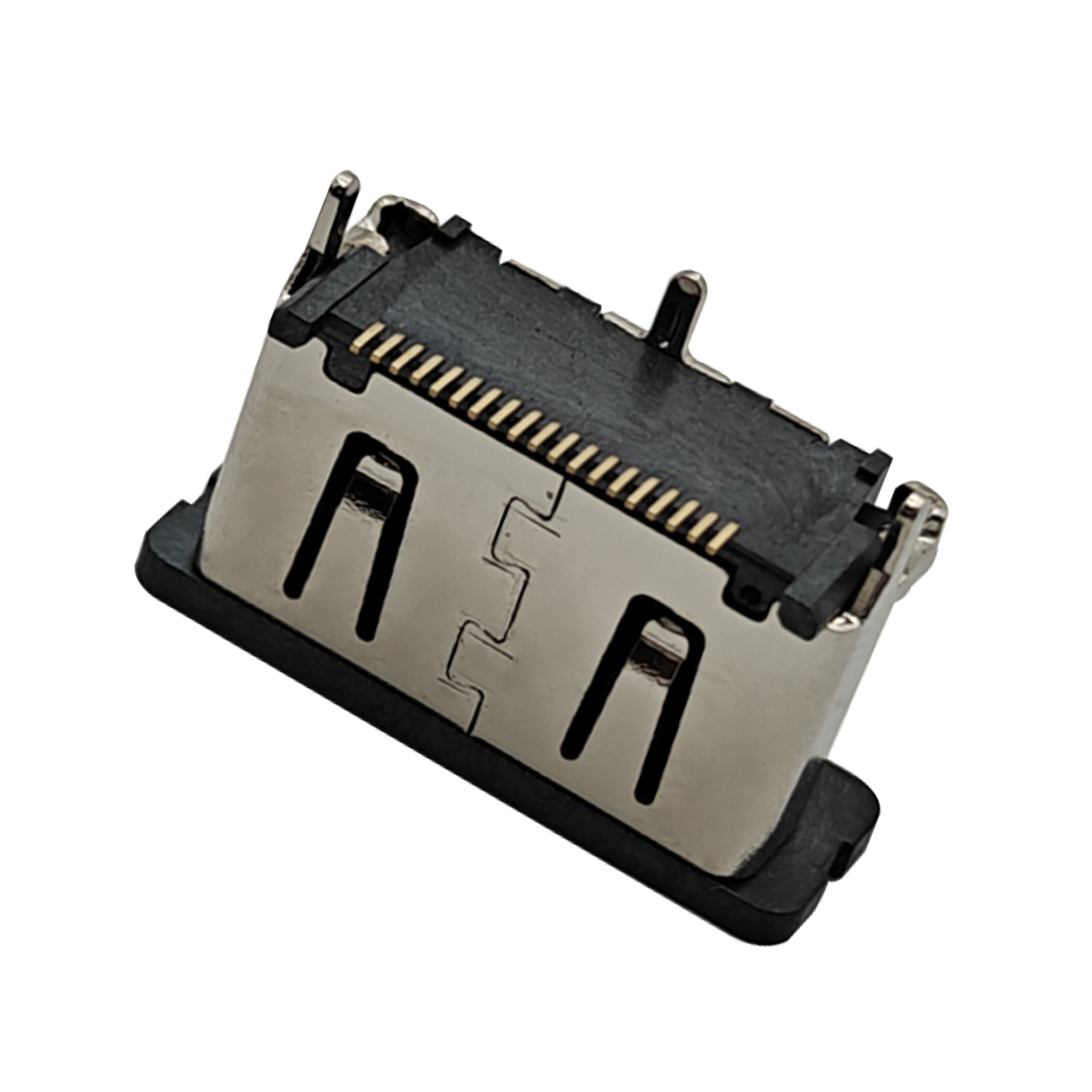

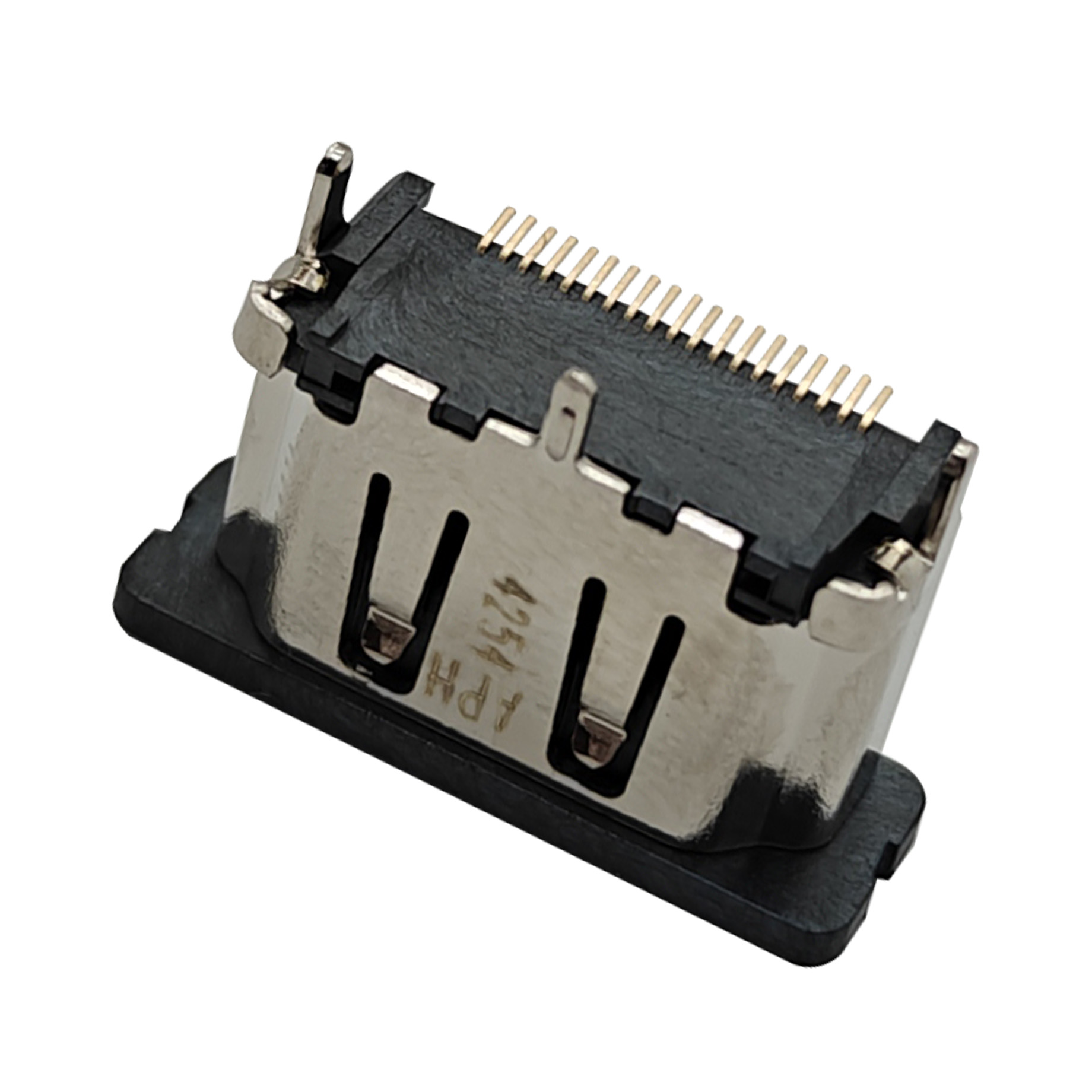

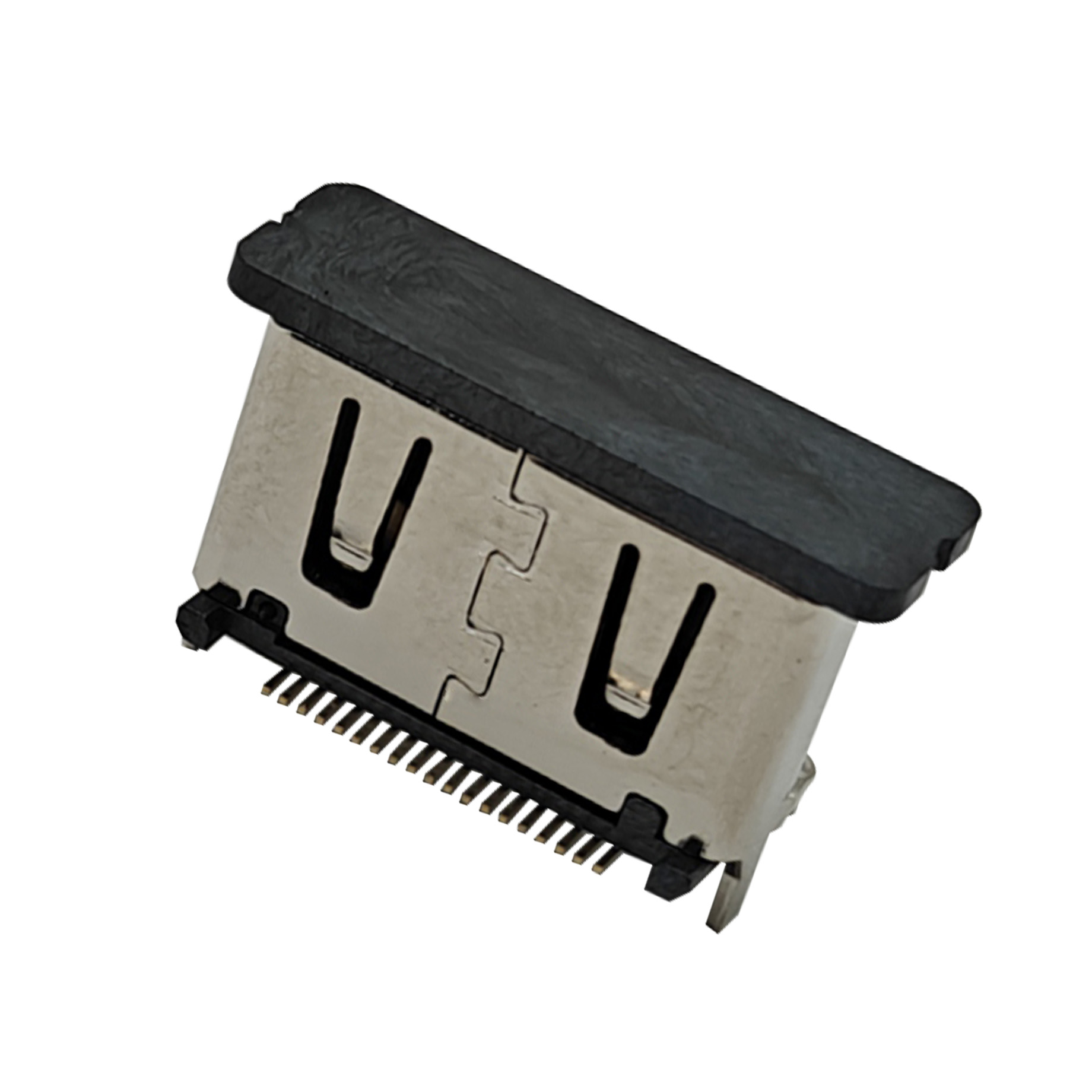

Product name: HDMI connector
Number:WL-HD19P-085
Specifications: Vertical SMT, Short Body, Tape & Reel with Cover,19P，8.5H
INQUIRY EMAIL

Technical Parameters:

1.Material

1.1 Insulator: Lcp, Ul94v-0, Color: Black.

1.2 Cap: Lcp, Ul94v-0, Color: Black.

1.3 Contact: Brass.

1.4 Shell: Brass.

2.Finish:

2.1 Contact: 15u" Min. Gold In Contact Area,Gold Flash In Solder Area,

30u" Min. Nickel Under Plated Overall.

2.2 Shell: 30u" Min. Nickel Plated Overall.

3.Specification:

3.1 Current Rating: 0.5amps.

3.2 Voltage Rating: 40vac.

3.3 Contact Resistance: 10mΩ Max. (Excluding Conductor Resistance)

3.4 Insulation Resistance: 100mΩ Min.

3.5 Dielectric Withstanding Voltage: 500 V Ac/60sec

3.6 Insertion Force: 4.5kgf Max.

3.7 Withdrawal Force:1.0kgf~4.0kgf

3.8 Durability: 10000 Cycle.

3.9 Tempertature Operating: -25°c To +85°c.

4.Notes:

4.1 All Components Are Rohs2.0 & Reach & Halogen Free Compliant.

4.2 Resistance To Soldering Heat: 265°c For 10 Seconds.

Product Description:

1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

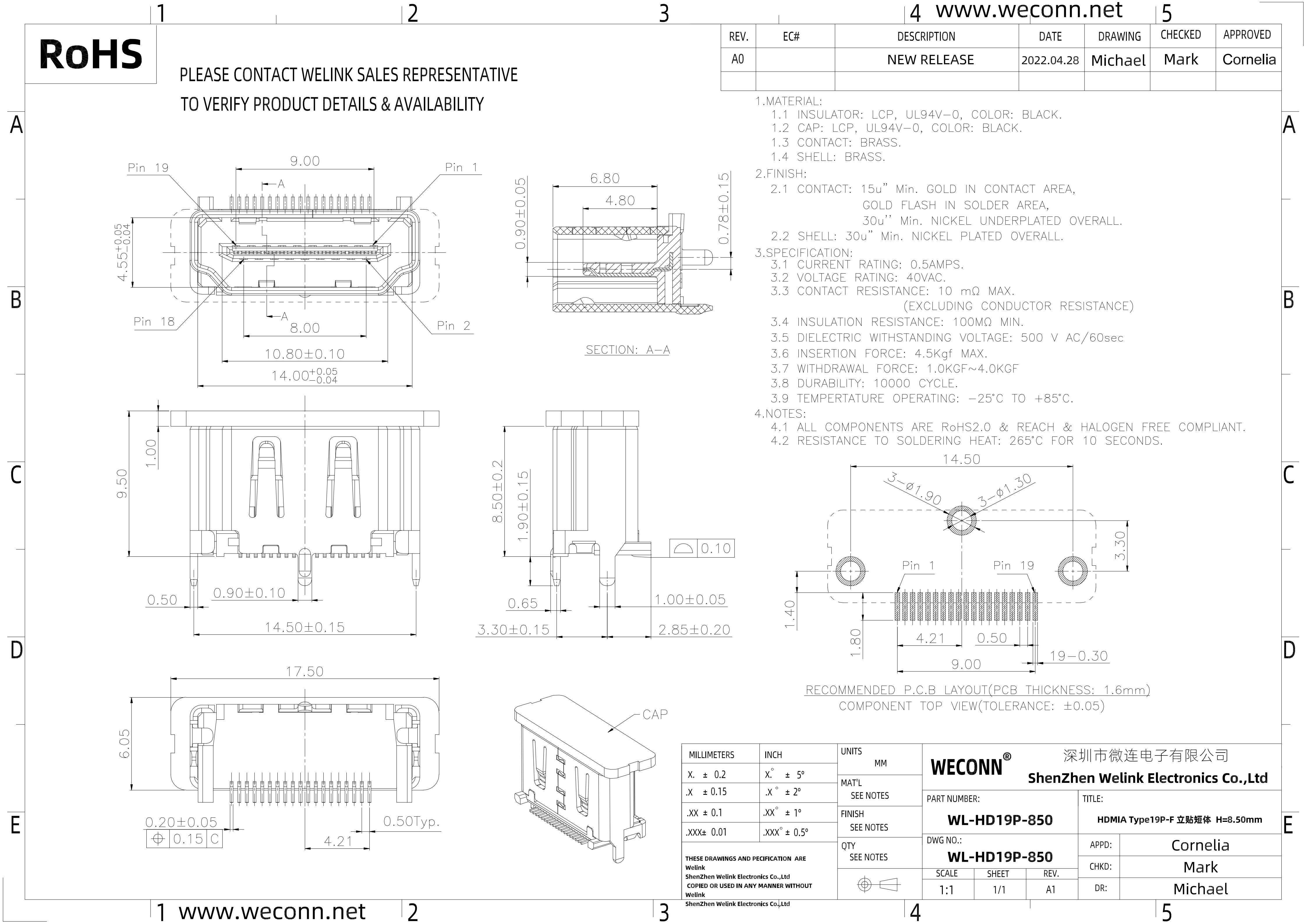

Drawing:
