Battery connector

WL-HCP413-26FS1CSA0X

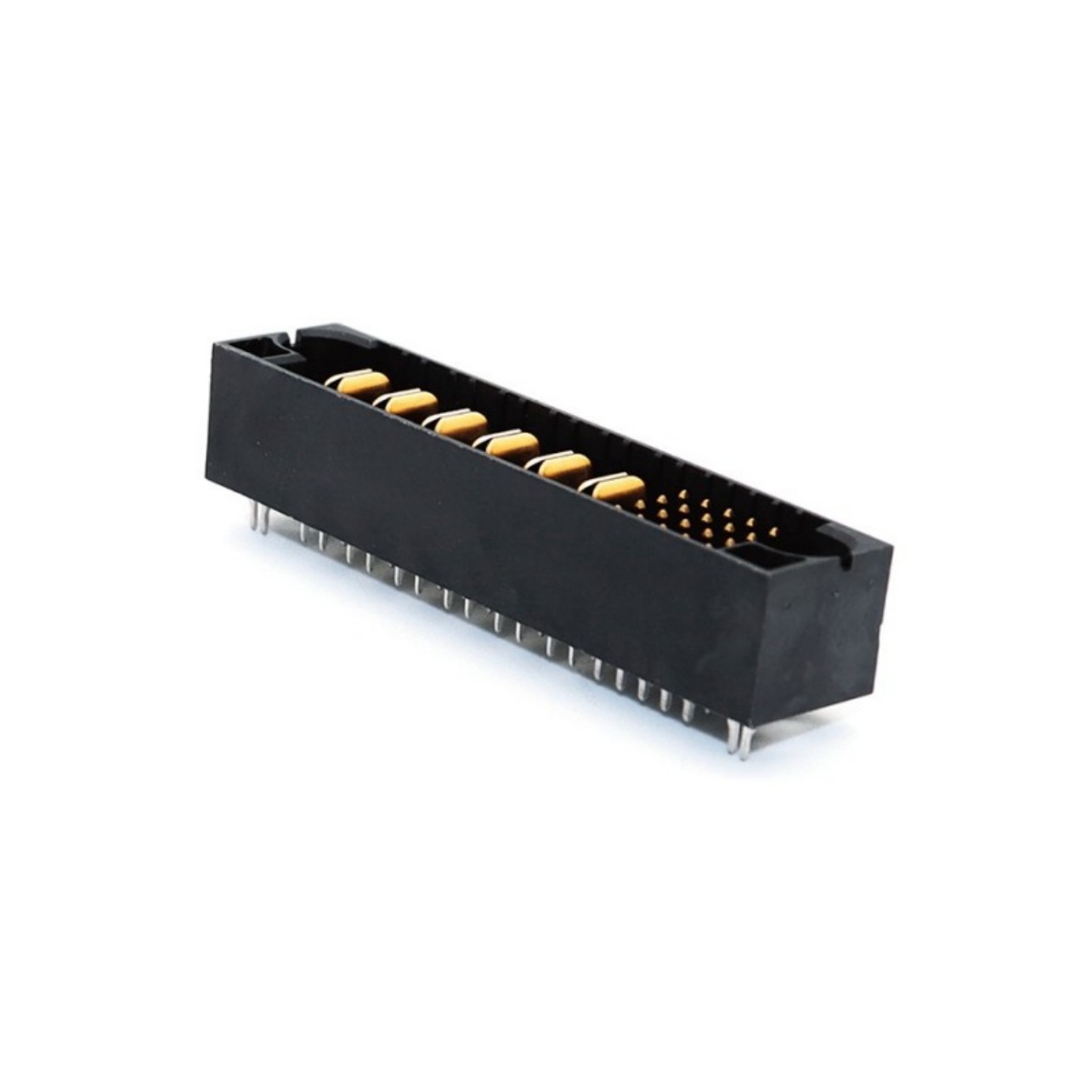

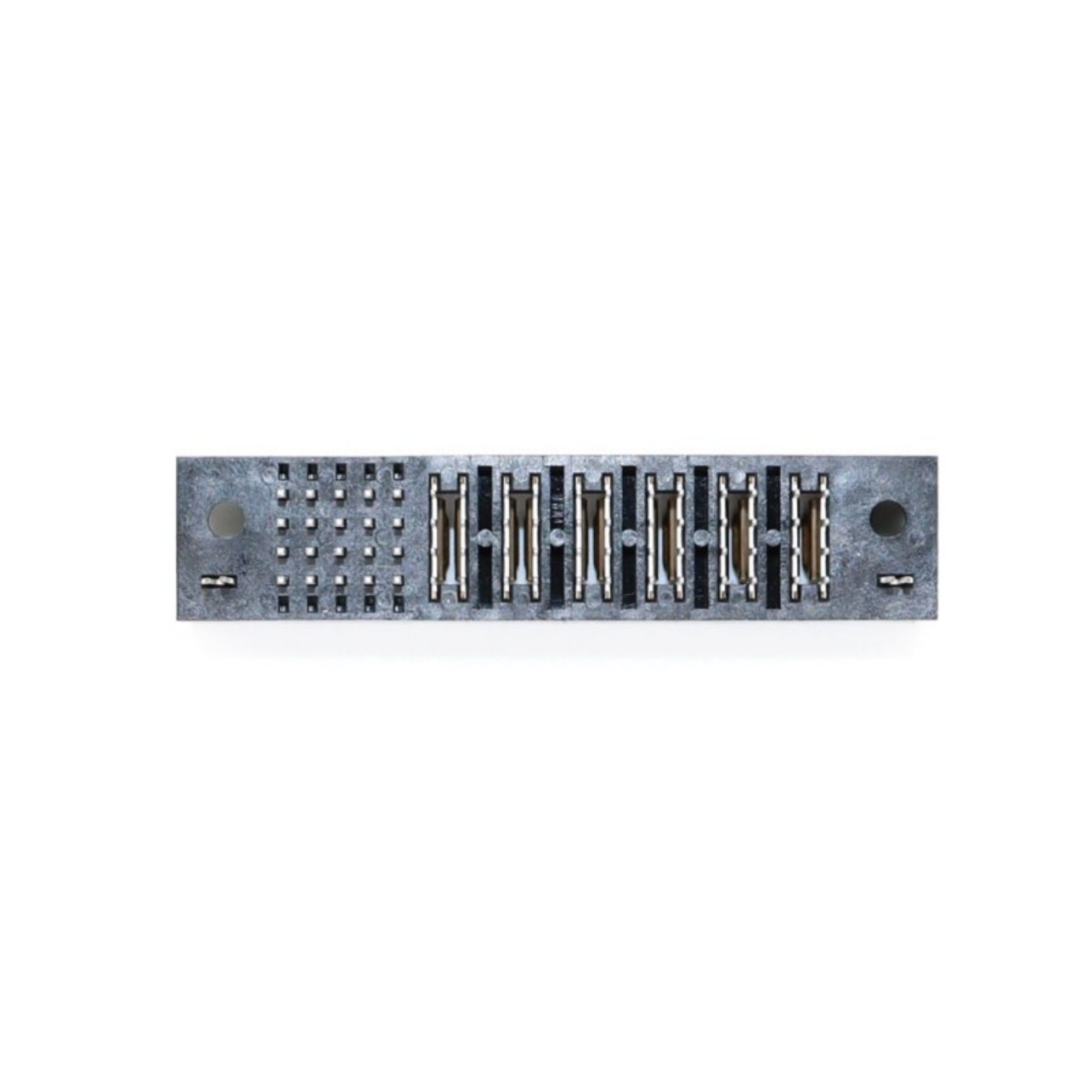

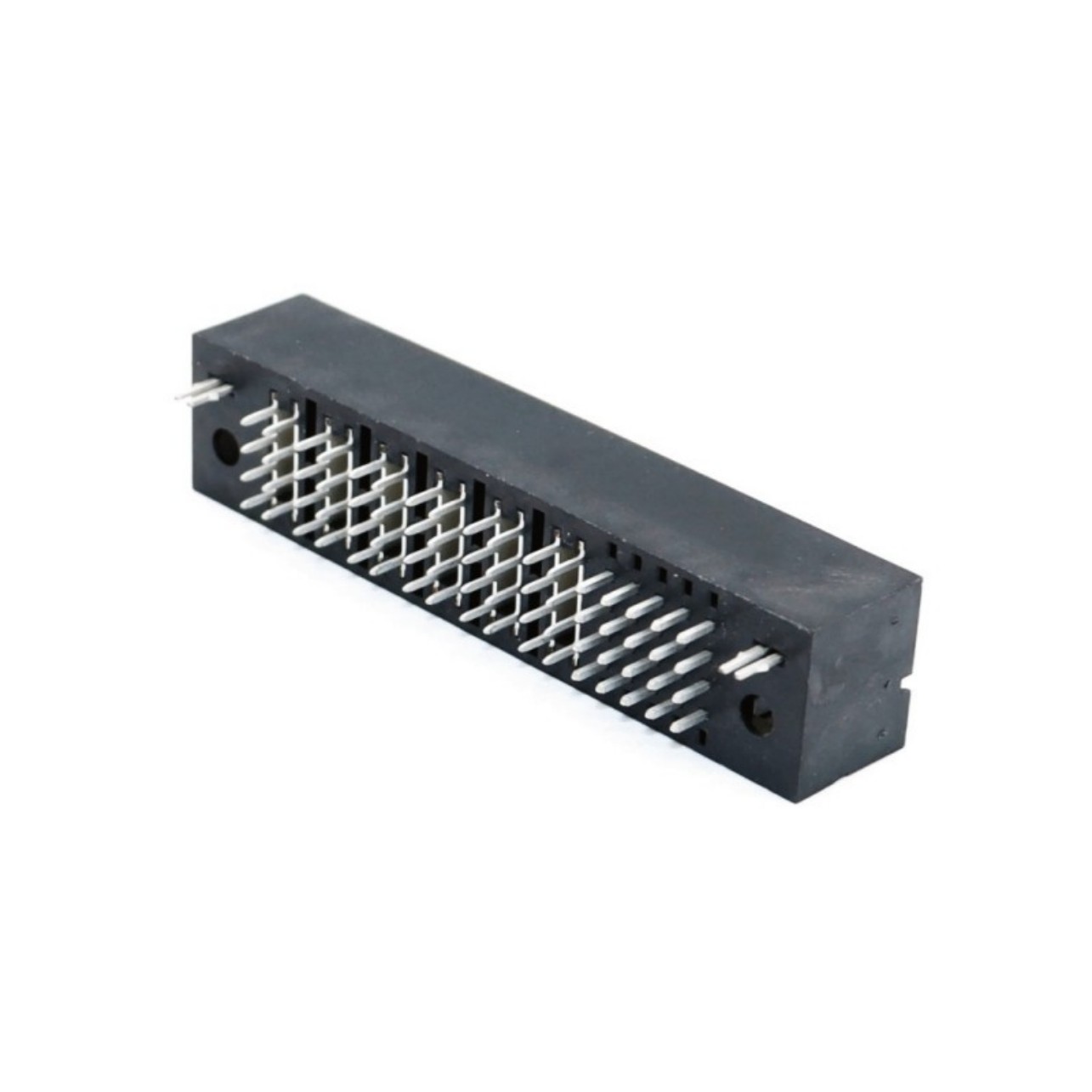

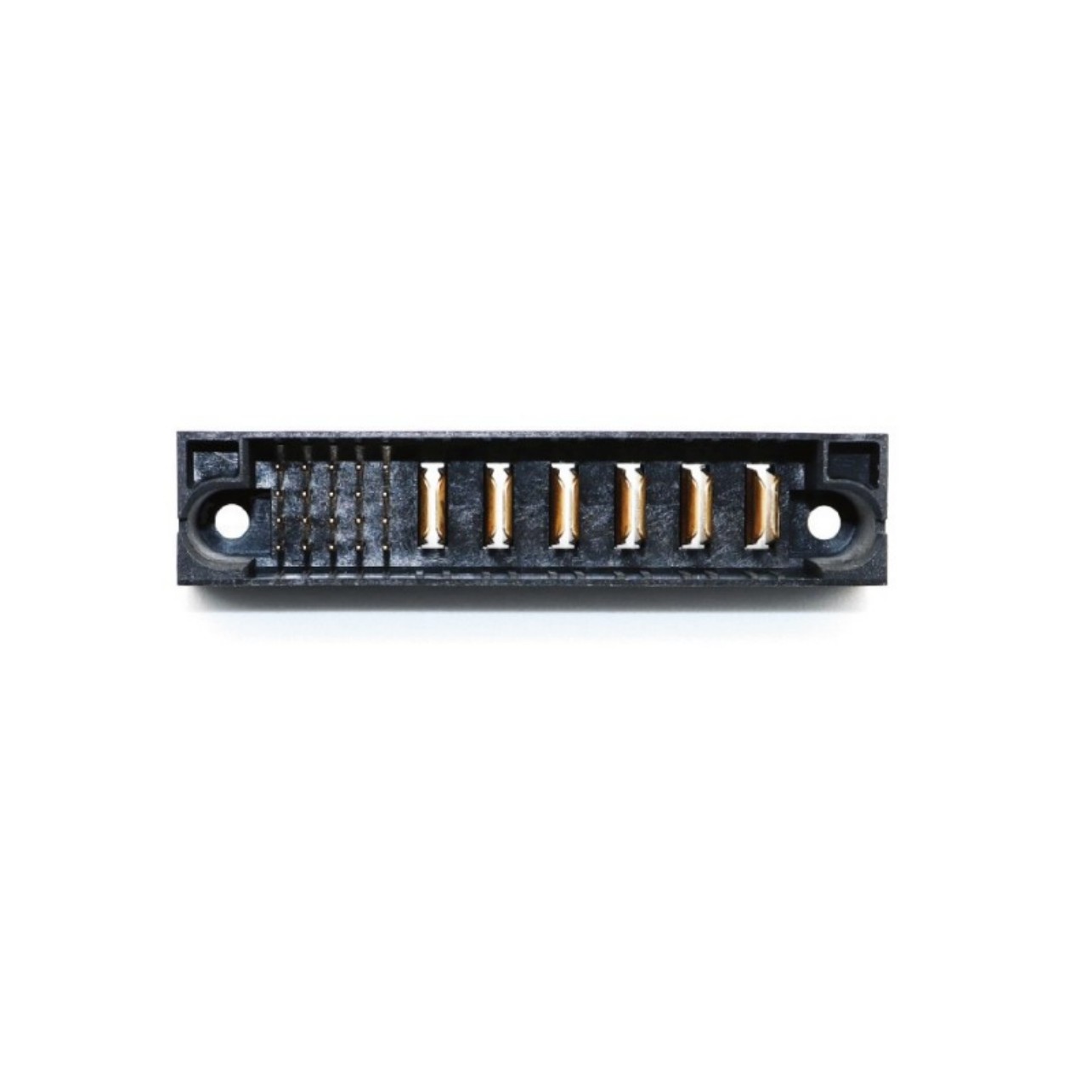

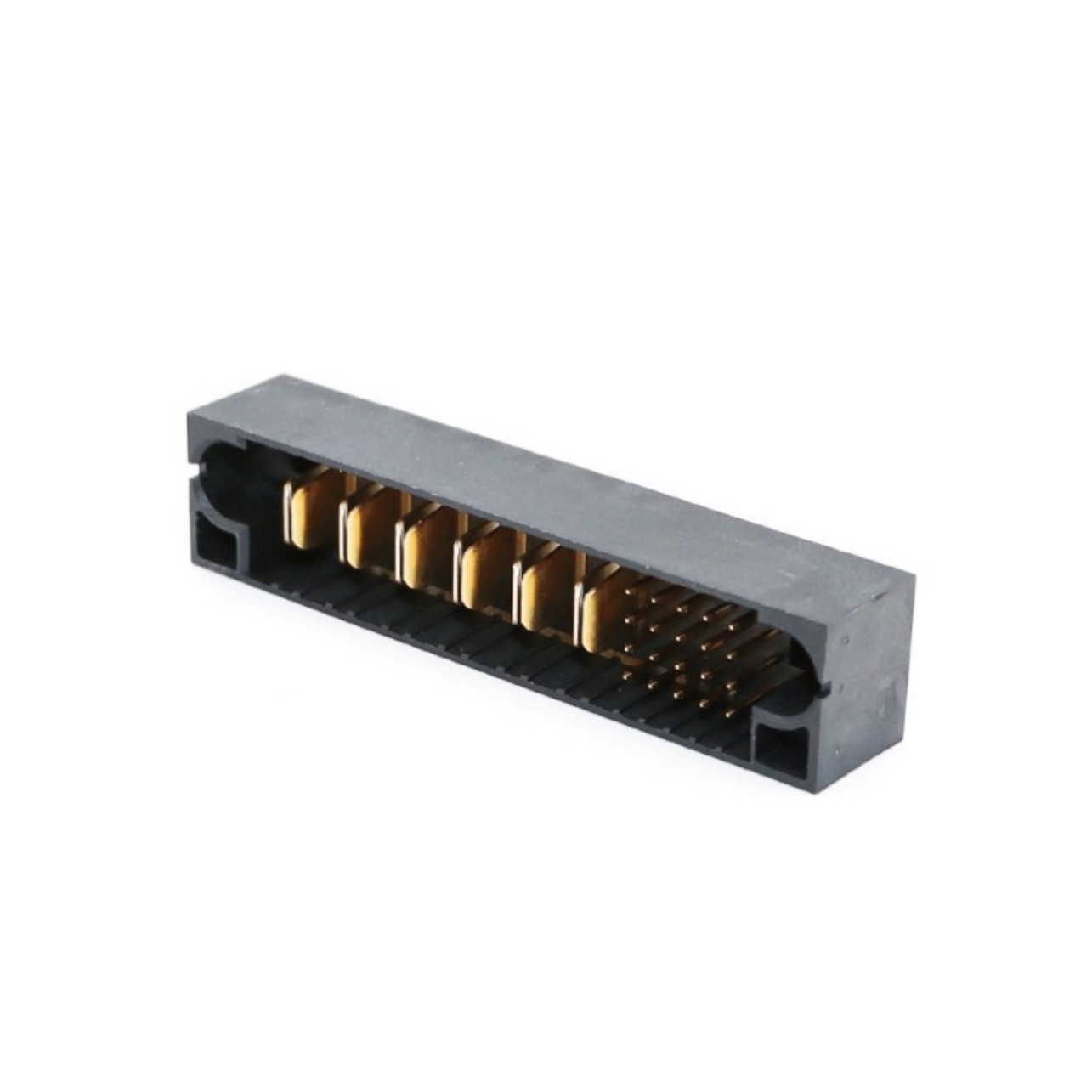

Product name: HCP power connector
Number: WL-HCP413-26FS1CSA0X
Specifications: Power port :5.08mm/ Signal port :2.54mm/20S signal pin+6P power pin/straight female/with harpoon/180 ° plug-in board
INQUIRY EMAIL

Technical parameters:

1.Signal Rated Current:2.5AMP

2.Power Rated Current:30AMP

3.Signal Rated Voltage:50V AC

4.Power Rated Voltage:250V AC

5.Signal Contact Resistance:20mΩ Max

6.Power Contact Resistance:2mΩ Max

7.Signal Contact Withstand Voltage:1000V AC For 1 Minute

8.Power Contact Withstand Voltage:2500V AC For 1 Minute

9.Insulation Resistance:1000MΩ Min

10.Operation Temperature:-40°C to +105°C

11.Power Contact Material:Copper Alloy

12.Signal Contact Material:Copper Alloy

13.Contact Plating:Au or Sn Over Ni

14.PEG Material:Copper Alloy

15.PEG Plating:Tin Over Ni

16.Insulator Material:PA6T(UL94V-0)

17.Max.Processing Temp: 260℃±5℃ For 5~10 Second

Product Description:

1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

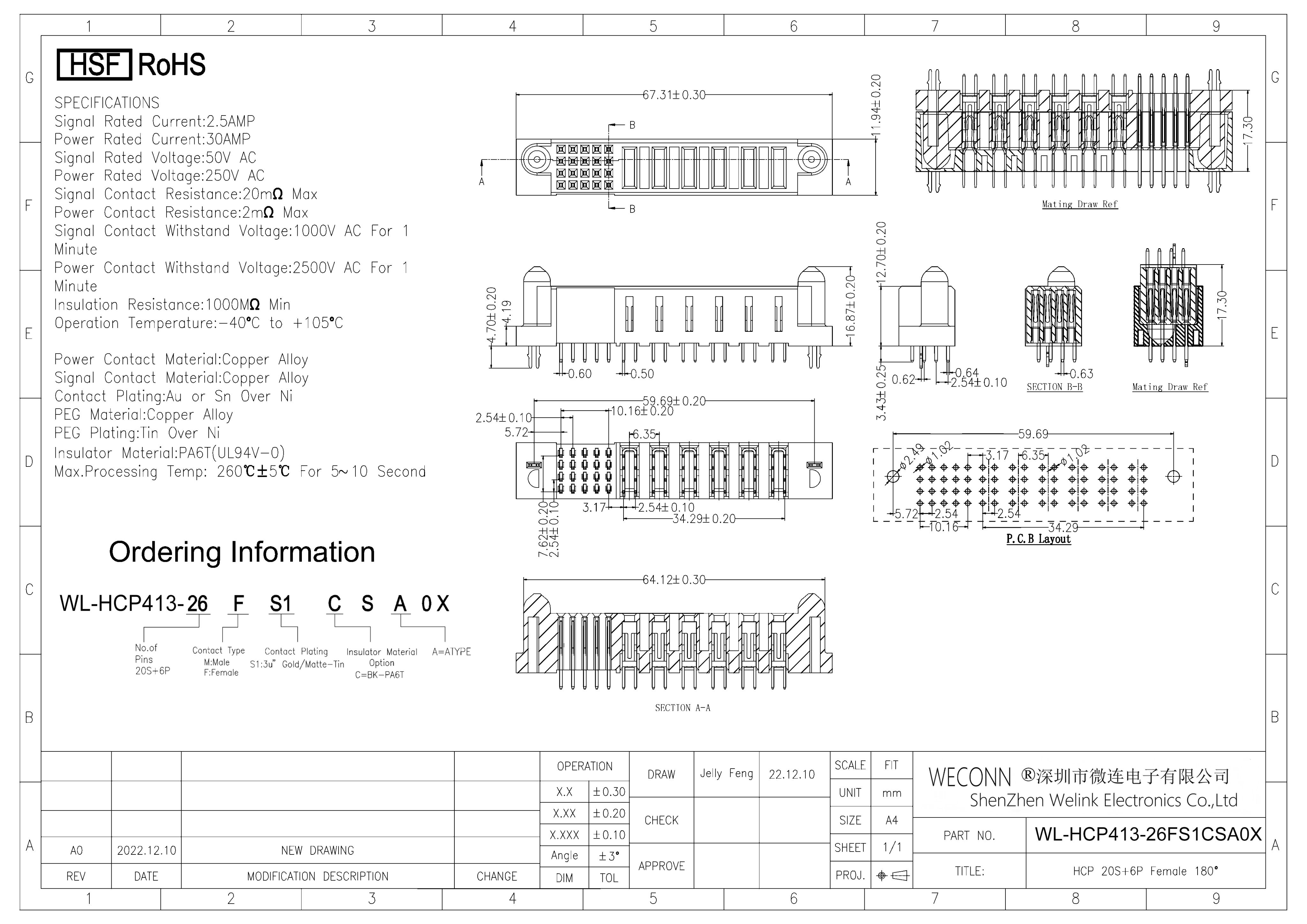

Drawing:
