Battery connector

WL-HCP417-18FXXCRXXX

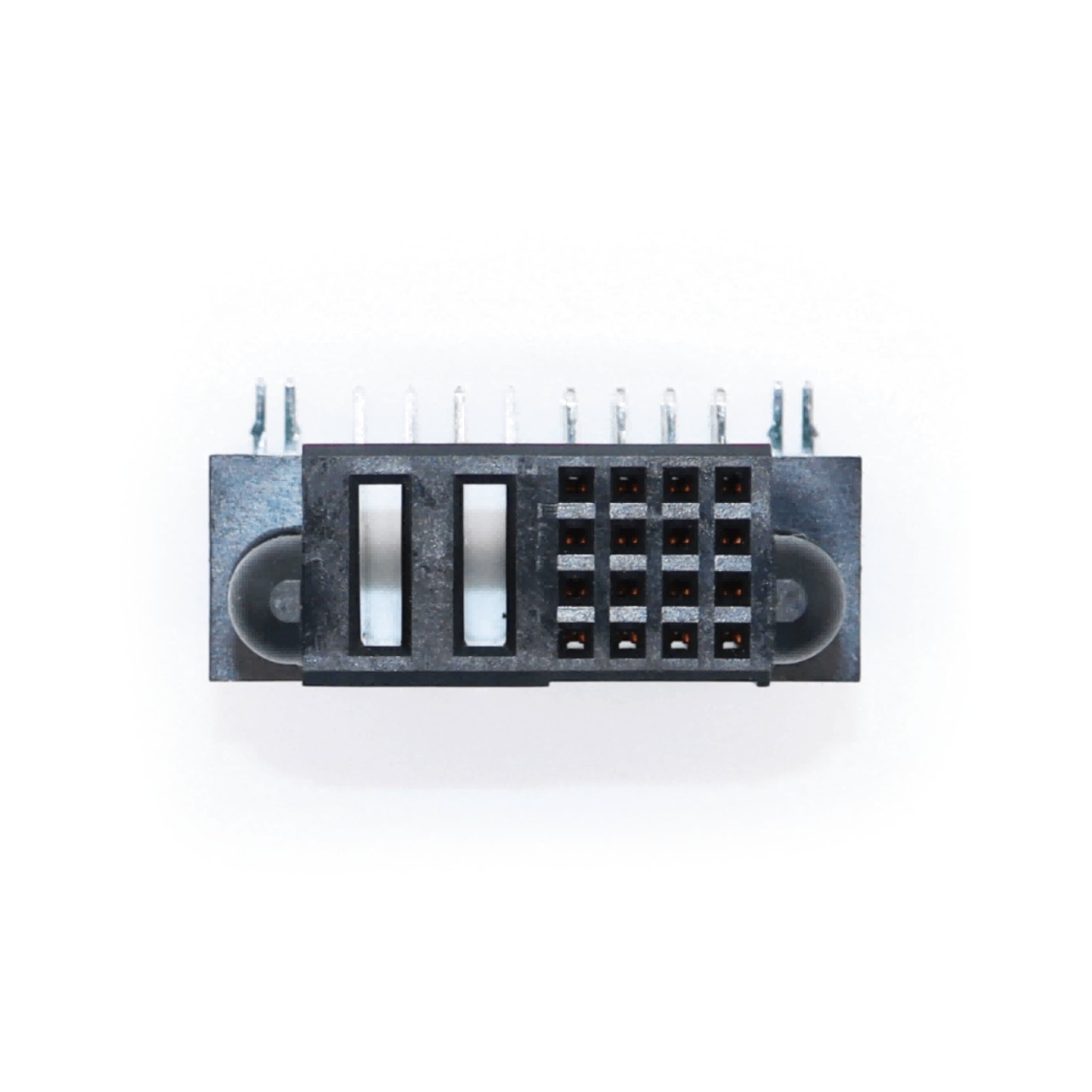

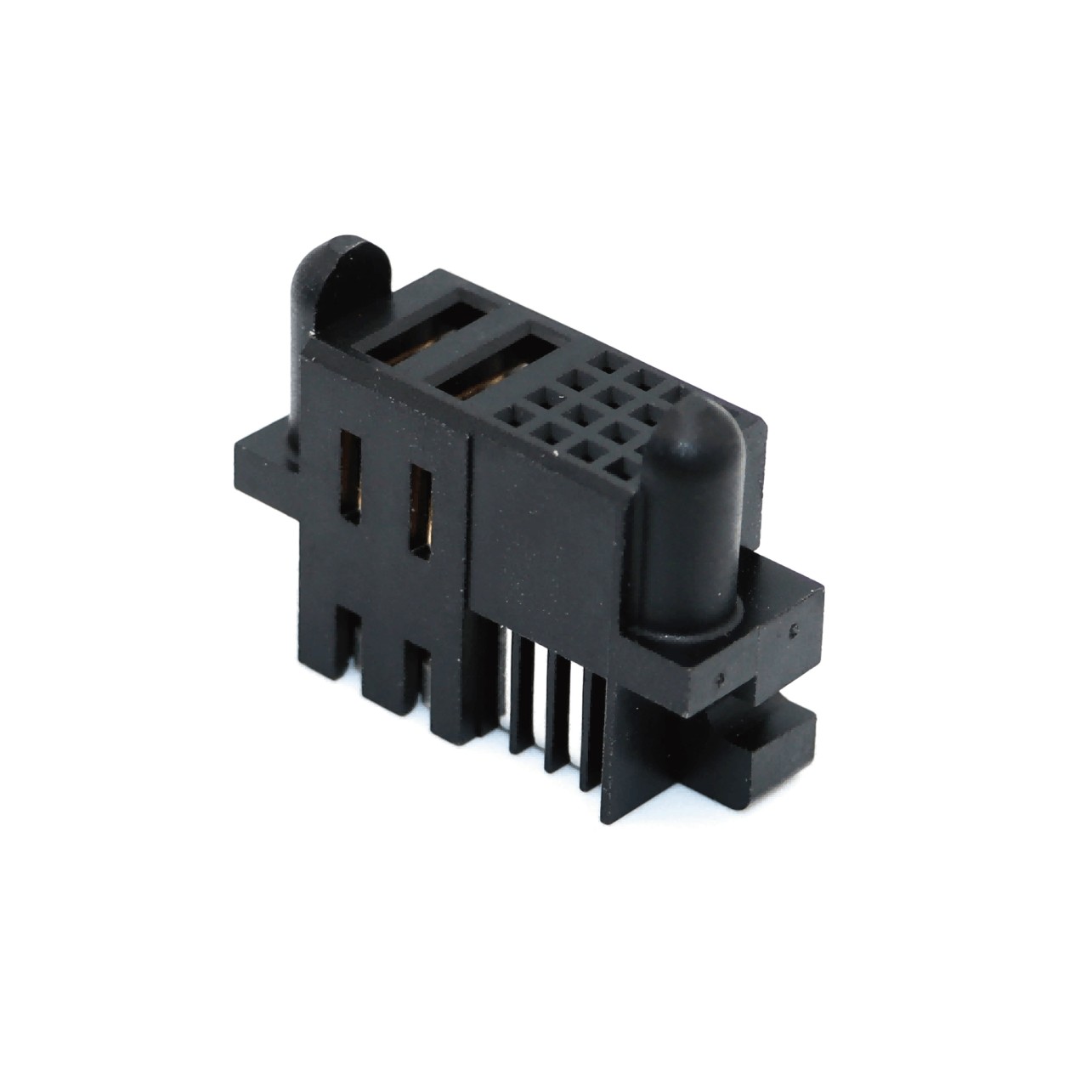

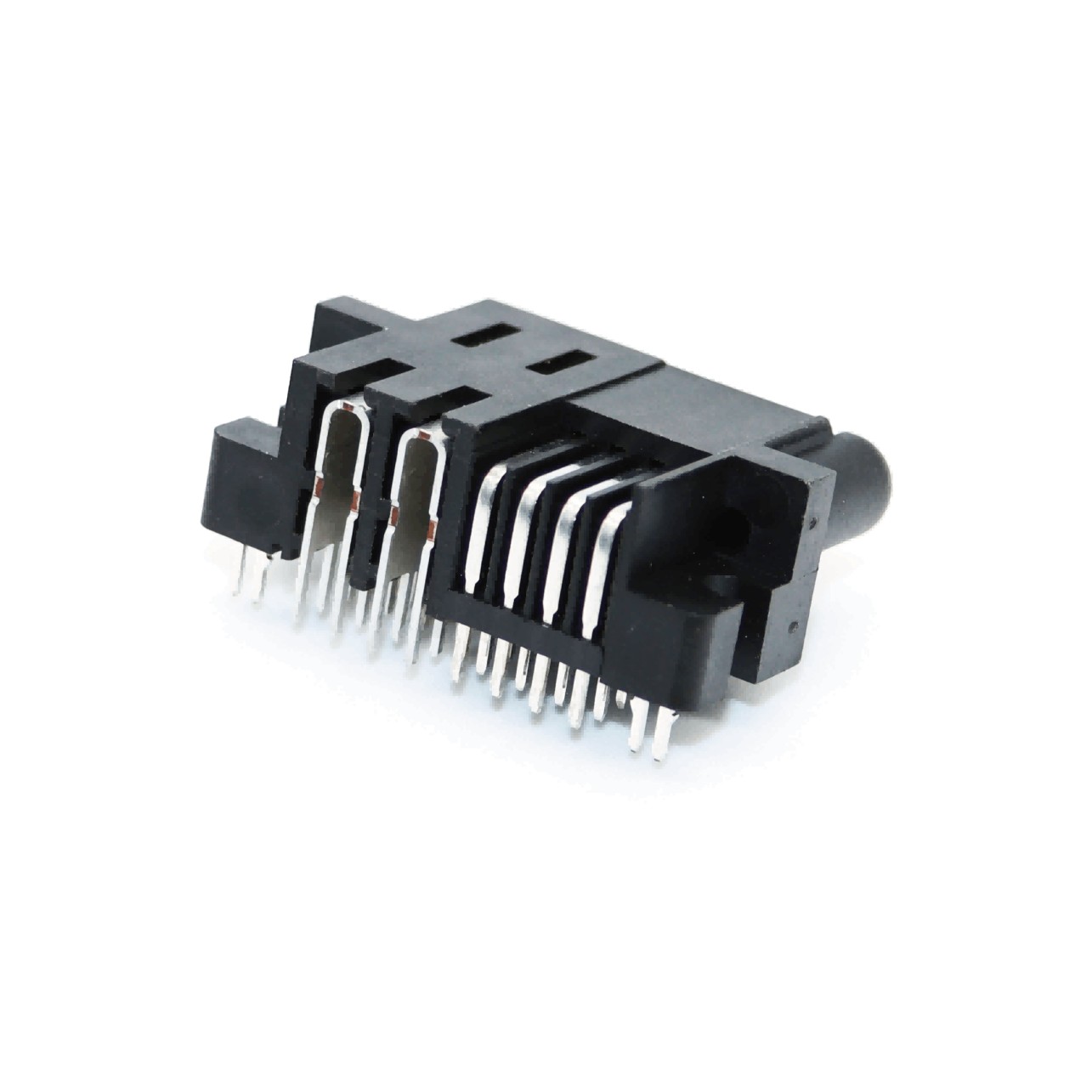

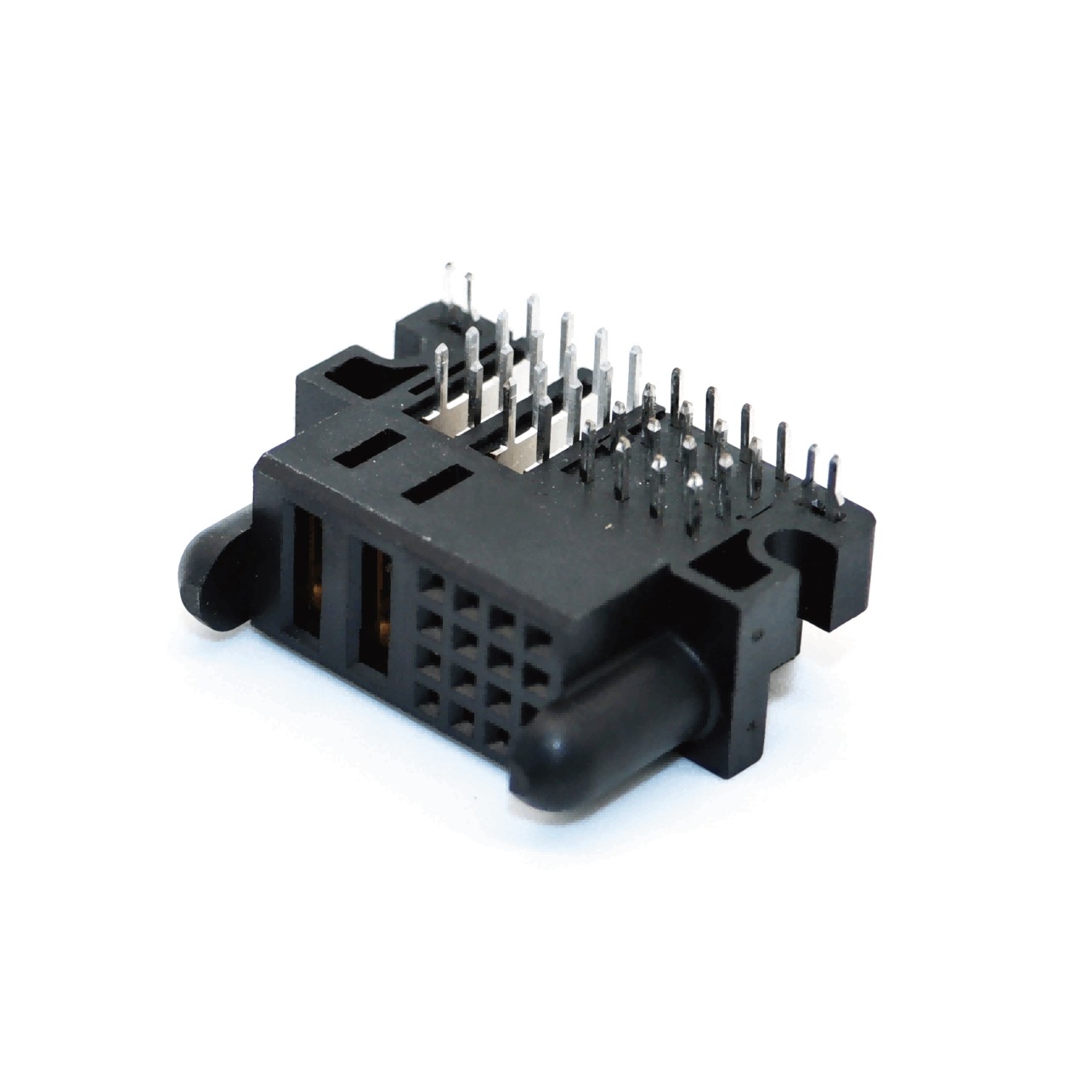

Product name: HCP power connector
Number: WL-HCP417-18FXXCRXXX
Specifications: Power port :5.08mm/ Signal port :2.54mm/16S signal pin+2P power pin/right angle female/with harpoon/RA
INQUIRY EMAIL

Technical parameters:

1.Signal Rated Current:2.5AMP

2.Power Rated Current:30AMP

3.Signal Rated Voltage:50V AC

4.Power Rated Voltage:250V AC

5.Signal Contact Resistance:20mΩ Max

6.Power Contact Resistance:2mΩ Max

7.Signal Contact Withstand Voltage:1000V AC For 1 Minute

8.Power Contact Withstand Voltage:2500V AC For 1 Minute

9.Insulation Resistance:1000MΩ Min

10.Operation Temperature:-40°C to +105°C

11.Power Contact Material:Copper Alloy

12.Signal Contact Material:Copper Alloy

13.Contact Plating:Au or Sn Over Ni

14.PEG Material:Copper Alloy

15.PEG Plating:Tin Over Ni

16.Insulator Material:PA6T(UL94V-0)

17.Max.Processing Temp: 260℃±5℃ For 5~10 Second

Product Description:

1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

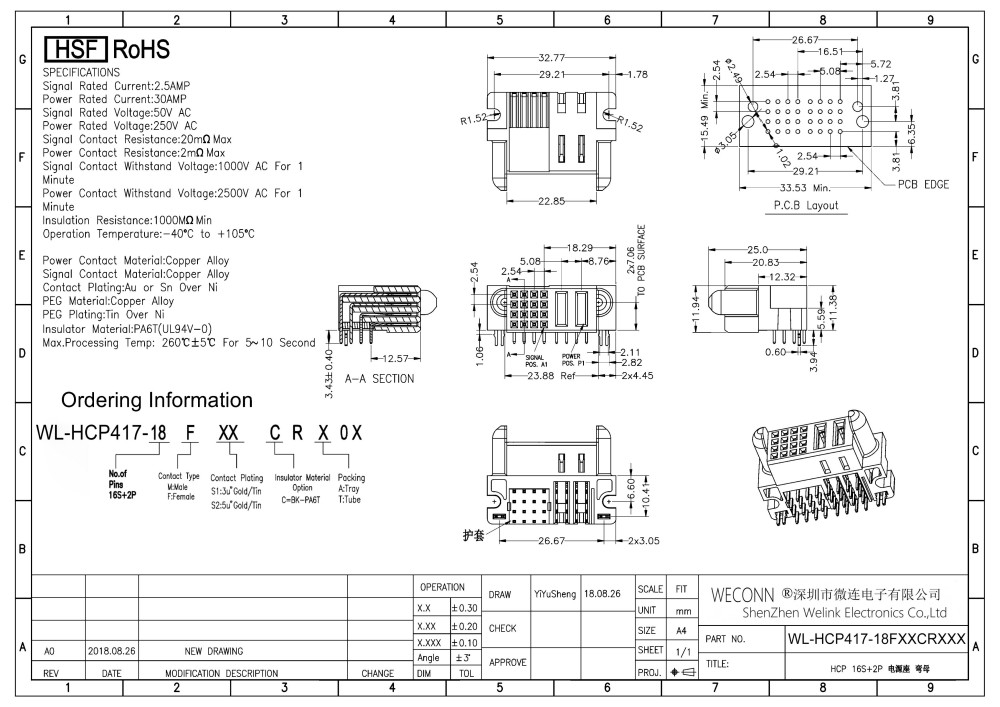

Drawing:
