Automotive connector

WL-AC502-206XXAB0X

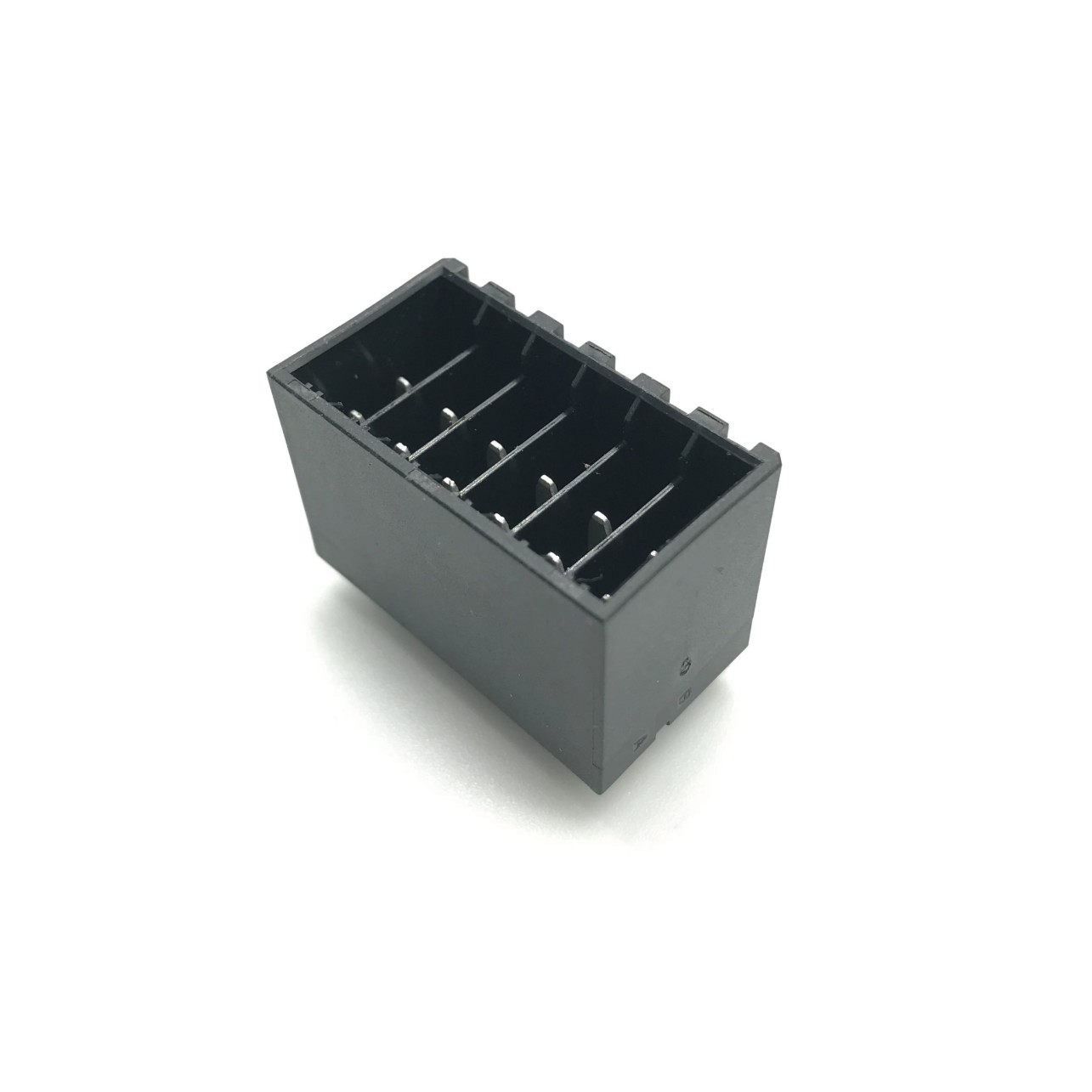

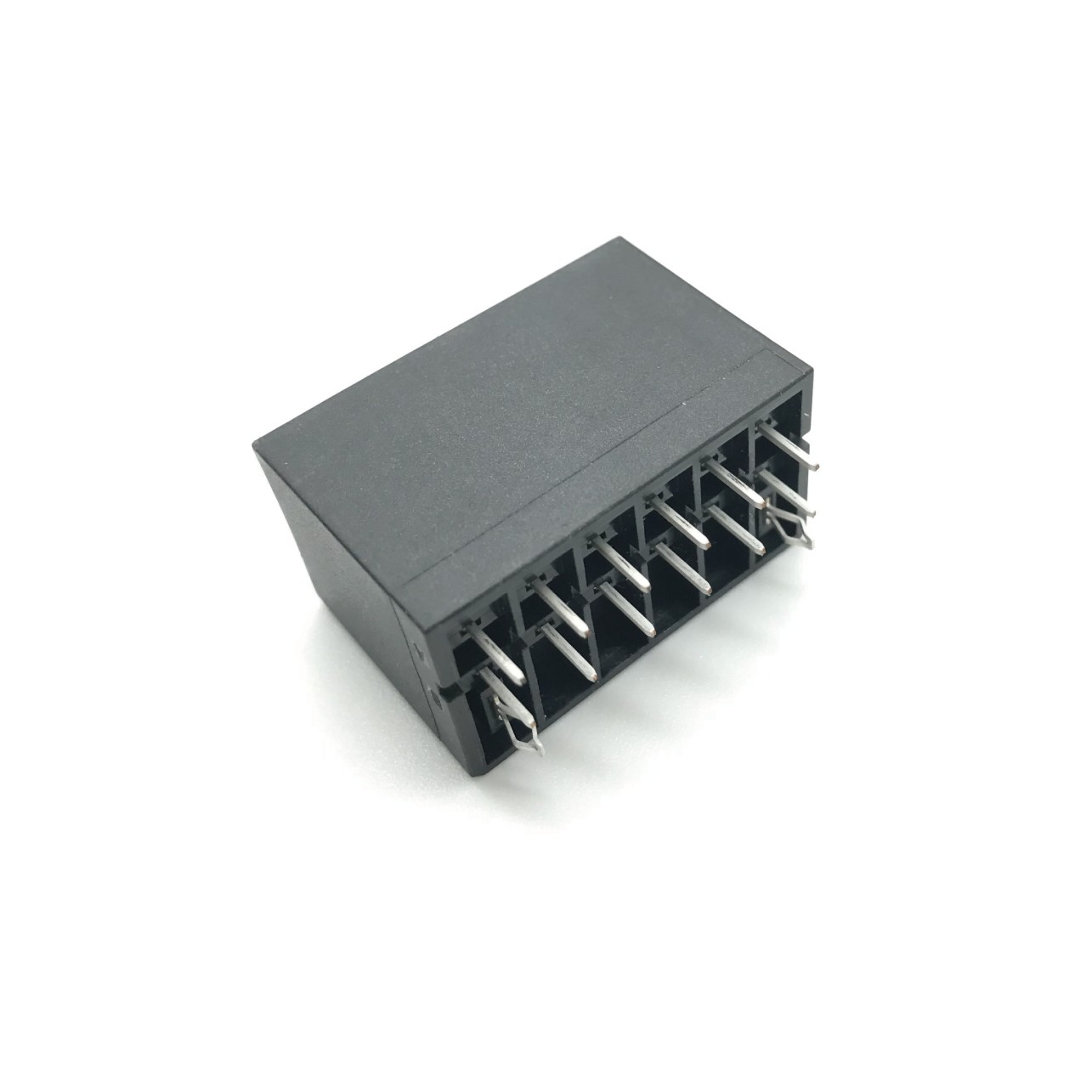

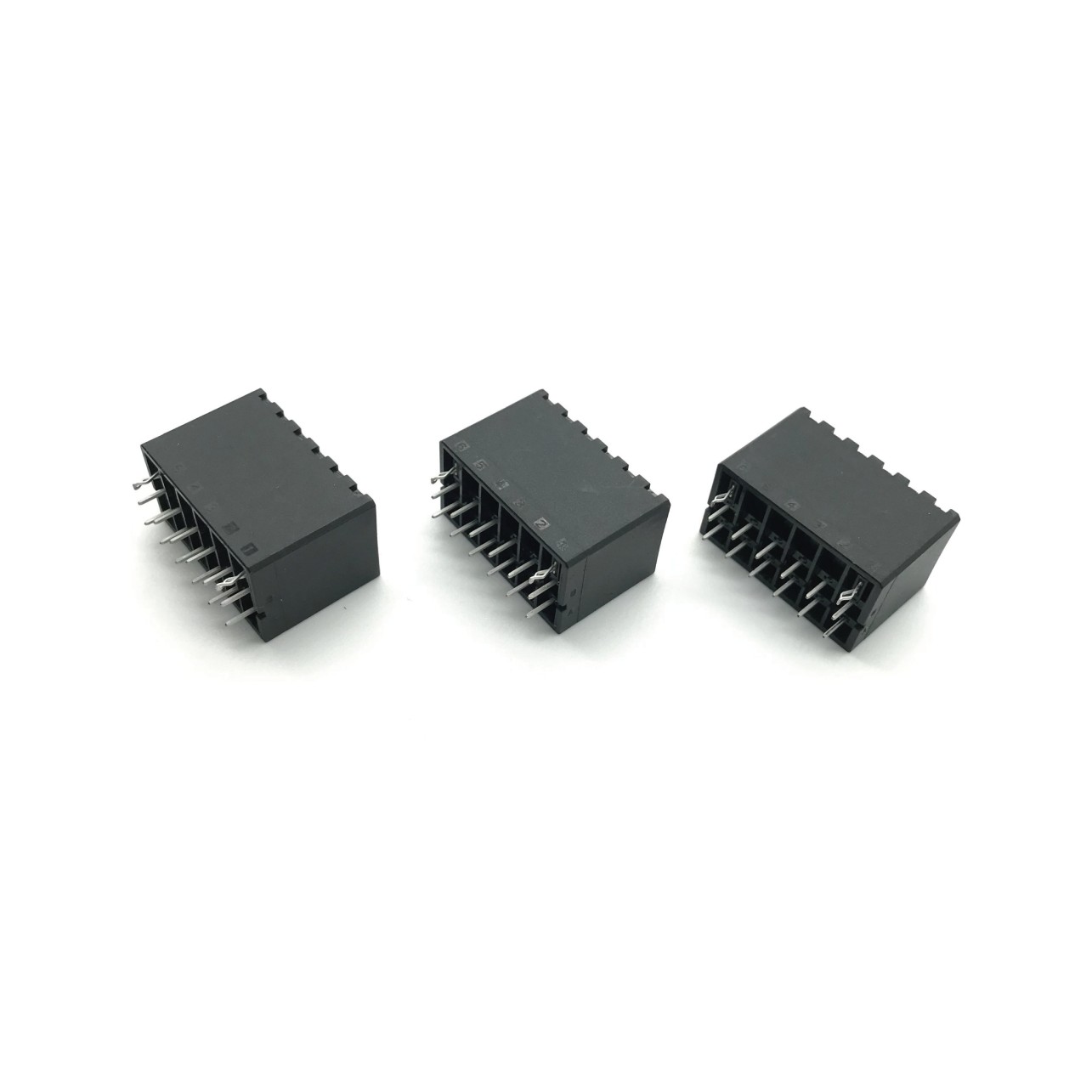

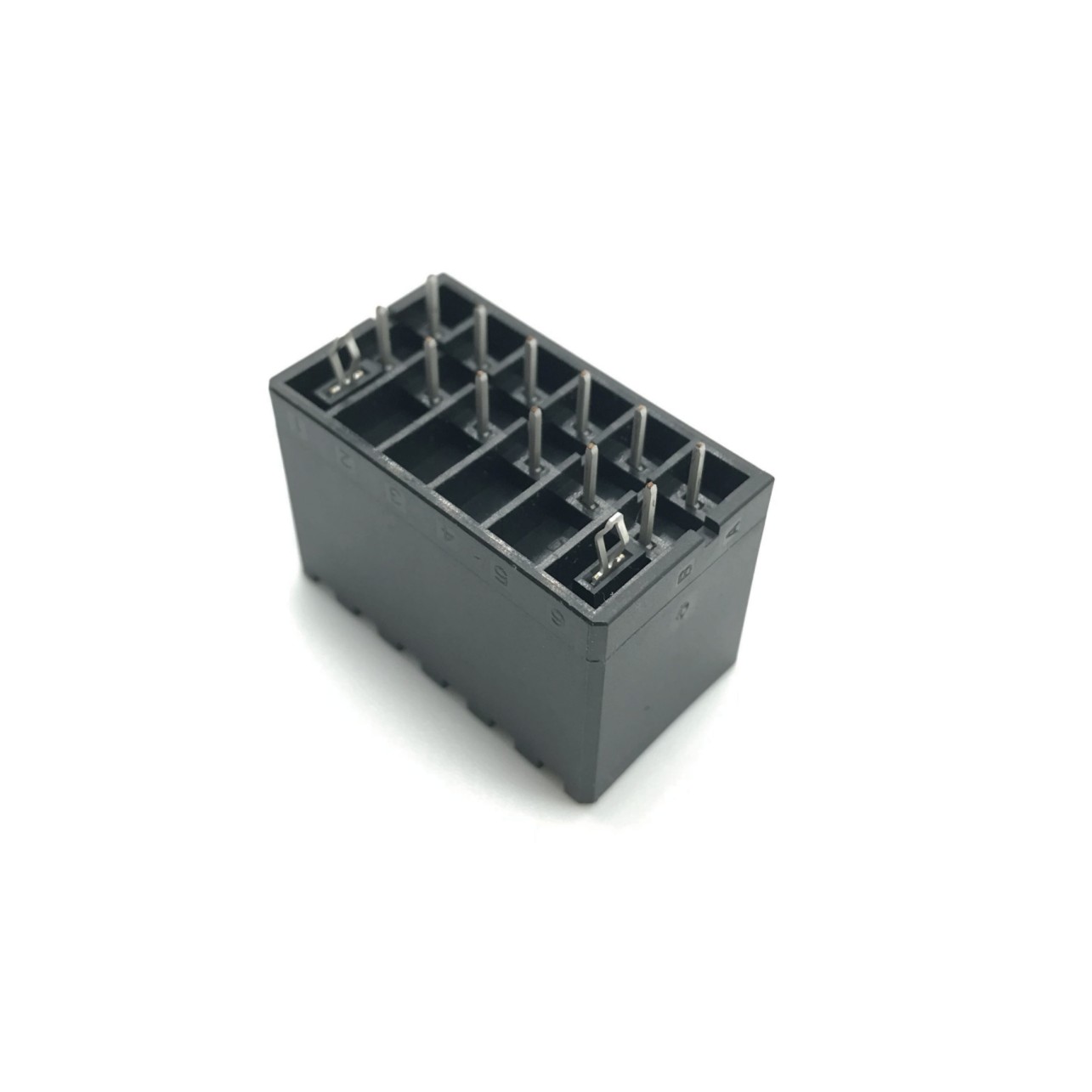

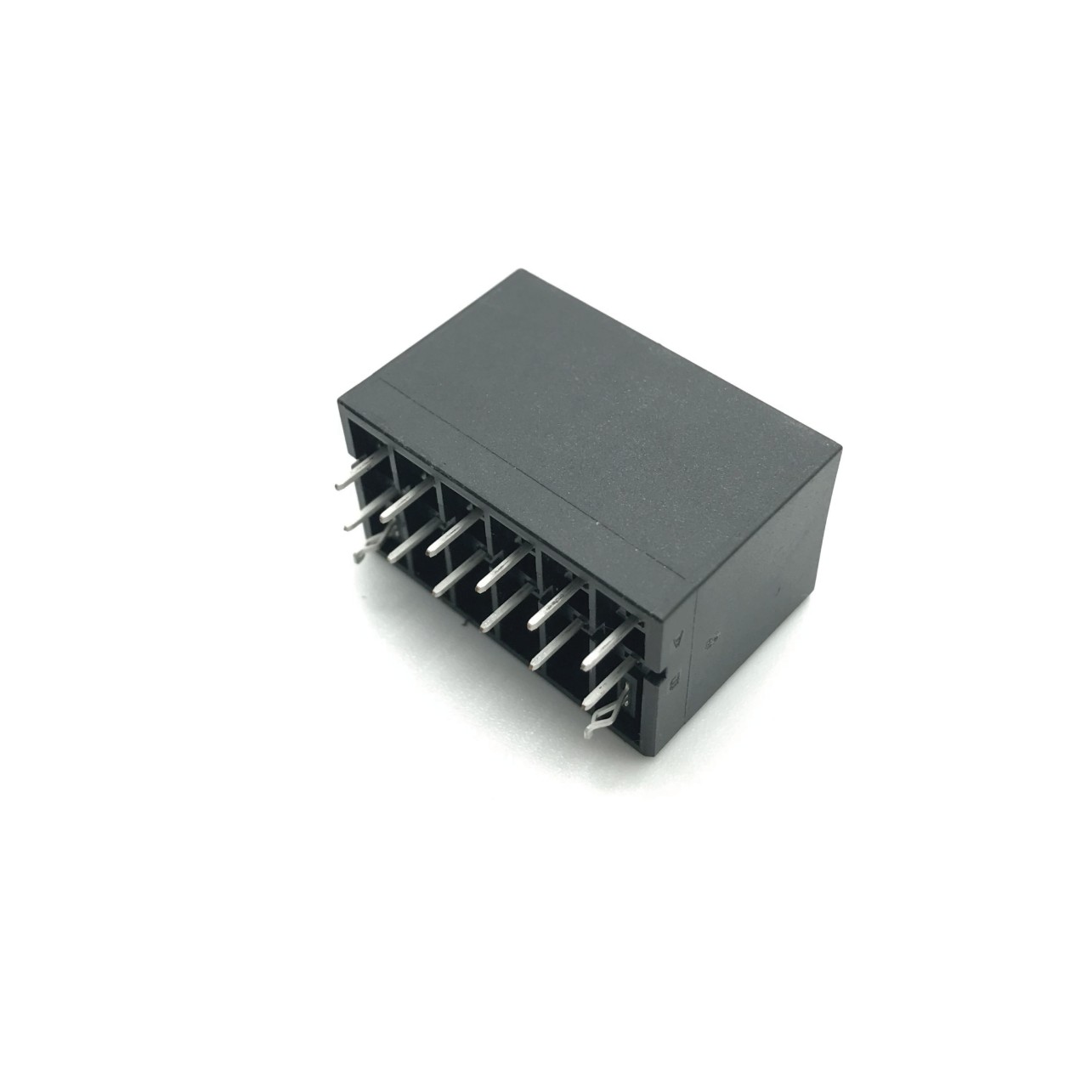

Product name: Type A Connector Housing(316516-5)
Number: WL-AC502-206XXAB0X
Specifications: 12Pin/5.08mm Pitch/ST
INQUIRY EMAIL

Technical parameters:

1.Rated Current:5.0AMP

2.Contact Resistance:20mΩ Max

3.Withstand Voltage:1000V AC/DC

4.Insulation Resistance:1000MΩ Min

5.Operation Temperature:-40rC to +105℃

6.Contact Material:Phosphor Bronze

7.Contact Plating:Au or Sn Over Ni

8.Retention LEG:Copper Alloy

9.Retention LEG Plating:Tin Over Ni

10.Insulator Material:Polyester(UL94V-0)

11.Resistance To Soldering Heat:245°C±5°C,10s(PBT insulator)

260°C±5°C,10s(PA6T&PA9T&LCPinsulator)

Product Description:

1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

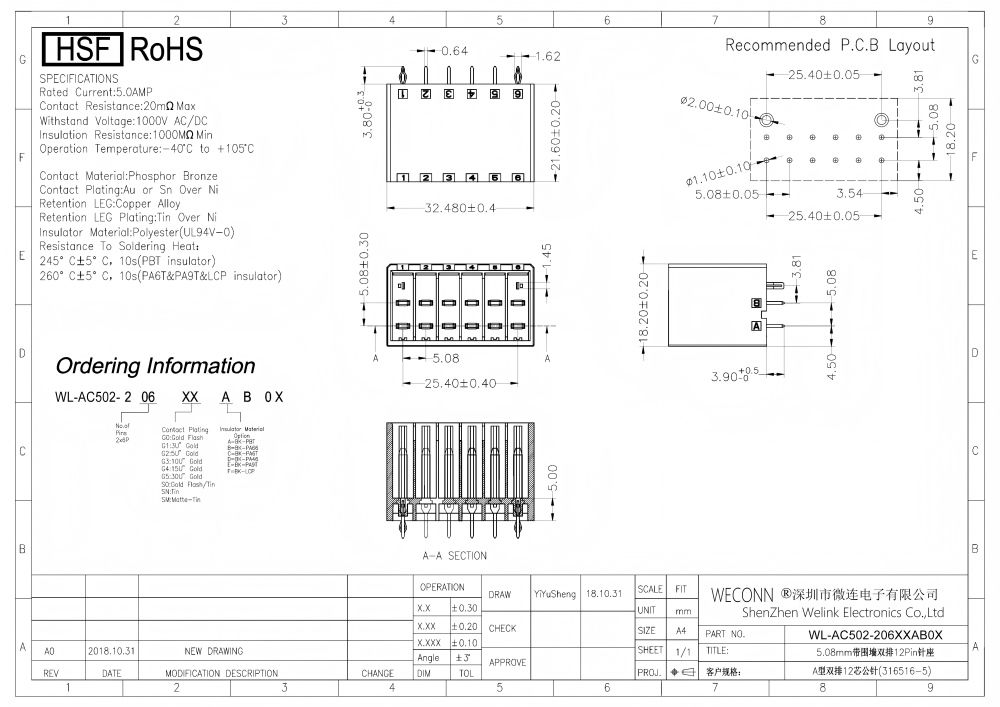

Drawing:
