Automotive connector

WL-AC520-206XXAA0X

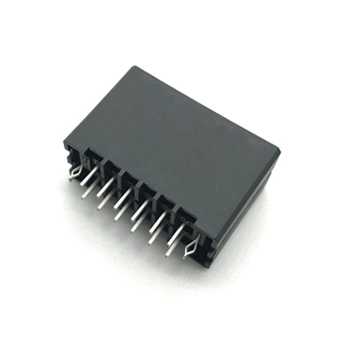

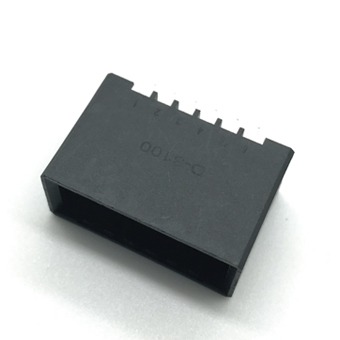

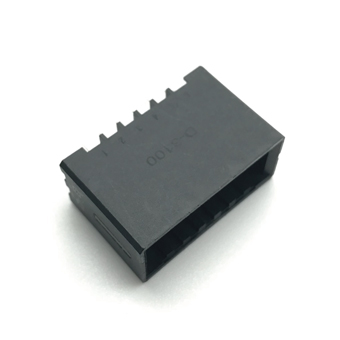

Product name: Type A Connector Housing(178326-5)
Number: WL-AC520-206XXAA0X
Specifications: 12Pin/3.81mm Pitch/ST
INQUIRY EMAIL

Technical parameters:

1.Rated Current:5.OAMP

2.Contoct Resistance:20mΩ Max

3.Withstand Voltage:1000v AC/DC

4.Insulation Resistance:1000MΩ Min

5.Operation Temperature;-40C to +105℃

6.Contoct Matericl:Phosphor Bronze

7.Contoct Plating:Au or Sn Over Ni

8.Retention LEG:Copper Alloy

9.Retention LEG Plating:Tin Over Ni

10.Insulator Material:Polyester(UL94V-0)

11.Standard:PBT

12.Max.Processing Temp: 230C±5C 5S

Product Description:

1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

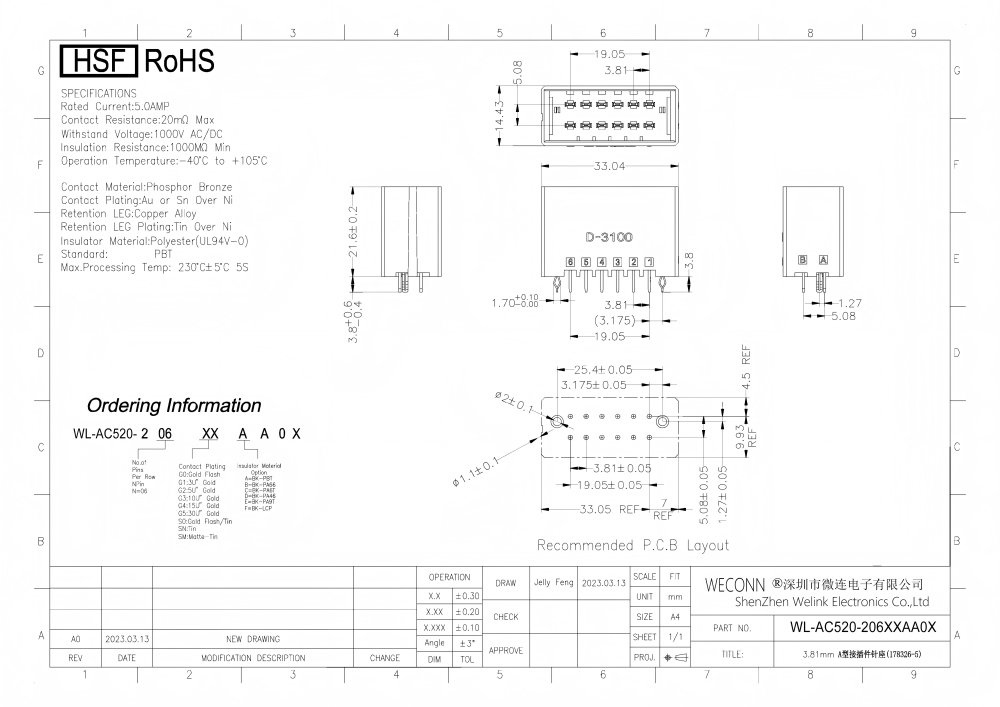

Drawing:
