WL-AC526-204XXAB0X

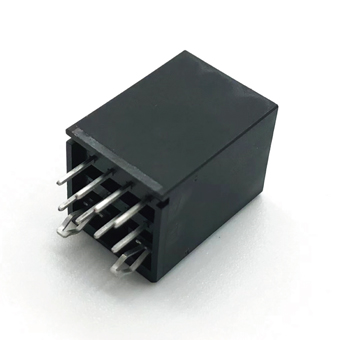

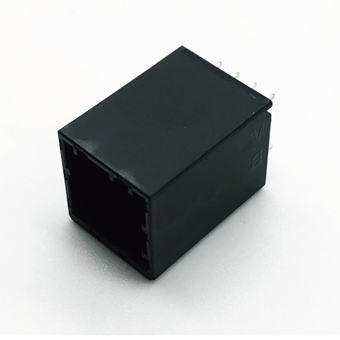

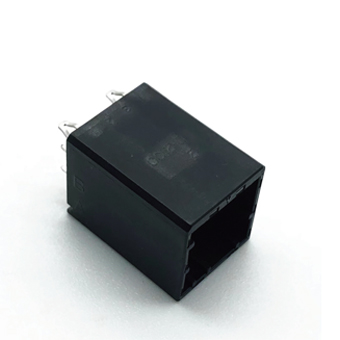

Product name: Type A Connector Housing(1318125-2)
Number: WL-AC526-204XXAB0X
Specifications: 8Pin/2.5mm Pitch/ST
INQUIRY EMAIL

Technical parameters:

1.Rated Current:3.0AMP

2.Contact Resistance:20mΩ Max

3.Withstand Voltage:1000V AC/DC

4.Insulotion Resistance:1000MΩ Min

5.Operation Temperature:-40°C to +105°C

6.Contact Moterial:Phosphor Bronze

7.Contact Plating:Au or Sn Over Ni

8.Retention LEG:Copper Aoy

9.Retention LEG PIating:Tin Over Ni

10.Insulotor Material:Polyester(UL94V-0)

12.Resistance To Soldering Heot:245°C±5°C,10s(PBT insulator)

13.260°C±5°C，10s(PA6T&cPA9T&LCPinsulator)

Product Description:

1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

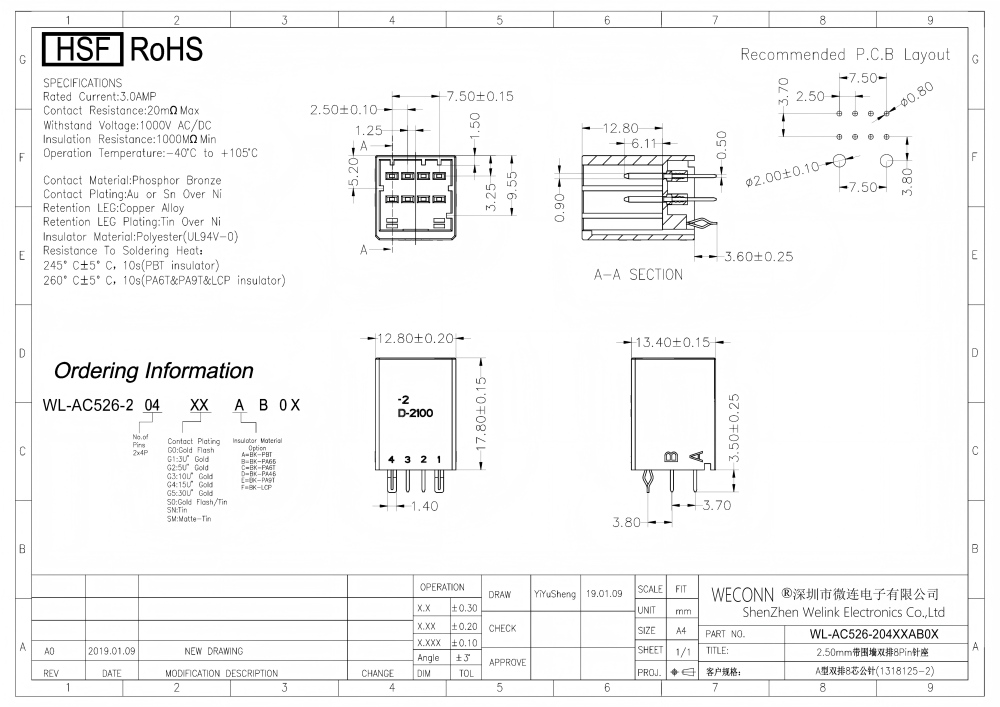

Drawing:
