MINI USB

WL-USB920-008

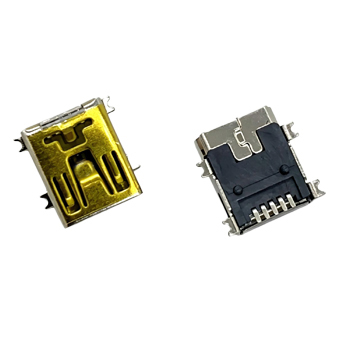

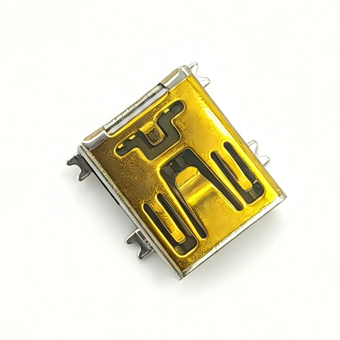

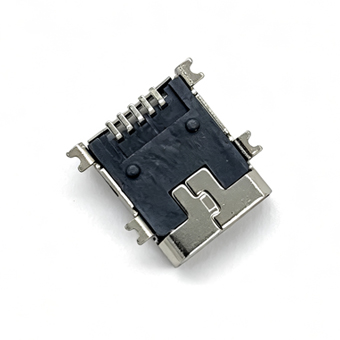

Product name: MINI USB Female
Number: WL-USB920-008
Specifications: Top Mount/Dual SMT/4 Mounting Feet/With Locating Pins/With Mylar Sheet
INQUIRY EMAIL

Technical parameters:
Electrical:
1.Current Rating:1.0A contact terminal
2.Voltage Rating:30V DC
3.Contact Resistance:50MΩ MAX
4.Withstanding Voltage:300 V AC
5.Insulation Resistance:100MΩ MIN
Material:
1.Plastic:Hing Temperature Thermoplastics,LCP Black
2.Contact:Copper Alloy C2680
3.Shell: SPCC Copper Alloy C2680
Plating:
1.Contact: Piated Gold in Mating Area;Tin On Solder Talls
2.Shell:Nickel Plating

Product Description:

1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

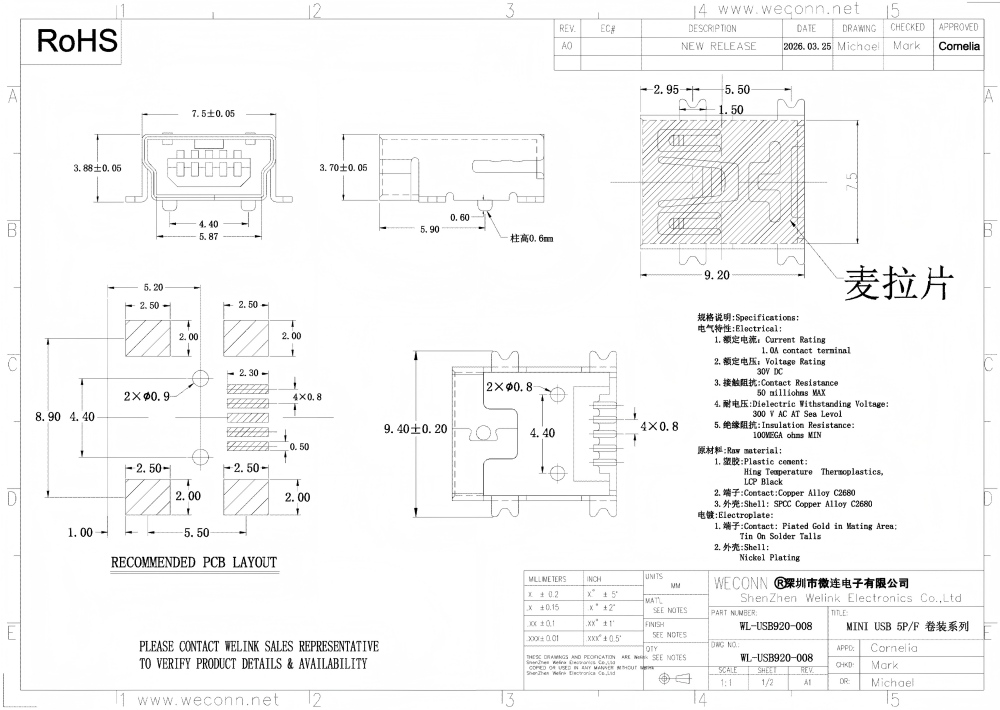

Drawing:
