Technical Parameters:
1. Rated Current: 1.0A AC/DC
2. Rated Voltage: 50V AC/DC
3. Operating Temperature: -25°C ~ +85°C
4. Storage Temperature: -40°C ~ +85°C
5. Contact Impedance: 100m ohms max.
6. Withstand Voltage: 500V AC / 1 minute
7. Insulation Resistance: 1000M ohms min./500VDC
8. Durability: 1500 times
9. Product Temperature Resistance: 260±5°C 10S
10. Flatness: 0.10mm MAX.
11. RoHS Compliant
12. Stable And Superior Performance
Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

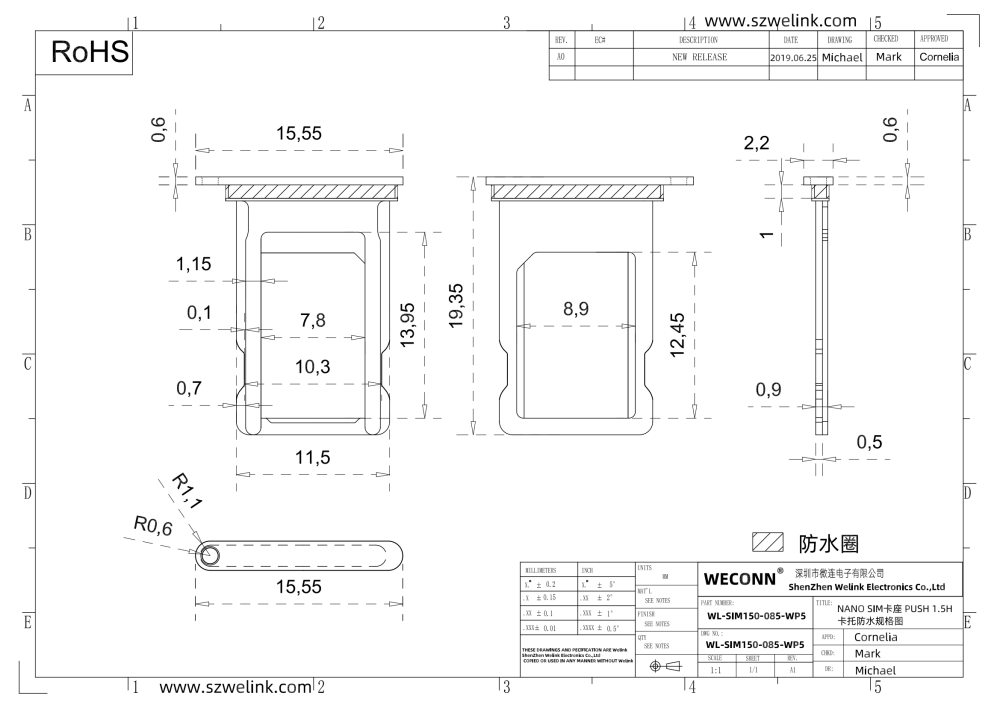

Drawing:
