Pin Header Connector

WL-PH0624-13XX21XXXNXXSXXXX0X

Product name: Pin Header Connector
Part Number: WL-PH0624-13XX21XXXNXXSXXXX0X
Specification:2.0mm Pin Header / SMT Vertical / Single Row / Dual Insulator / H1.0/H1.5/H2.0/H2.5/H3.0/H4.0/ 02~40 Pins / Male Header
INQUIRY EMAIL

Technical Parameters:
1.Rated Current:2.0AMP
2.Contact Resistance:20mΩ Max
3.Withstand Voltage:500V AC/DC
4.Insulation Resistance:1000MΩ Min
5.Operation Temperature:-40c to +105c
6.Contact Material:Brass
7.Contact Plating:Au Over Ni
8.Insulator Material:Polyester(UL94V-0)
9.Resistance To Soldering Heat:
245°C±5°C，10s(PBT insulator)
260°C±5°C，10s(PA6T&PA9T&LCP insulator)

Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

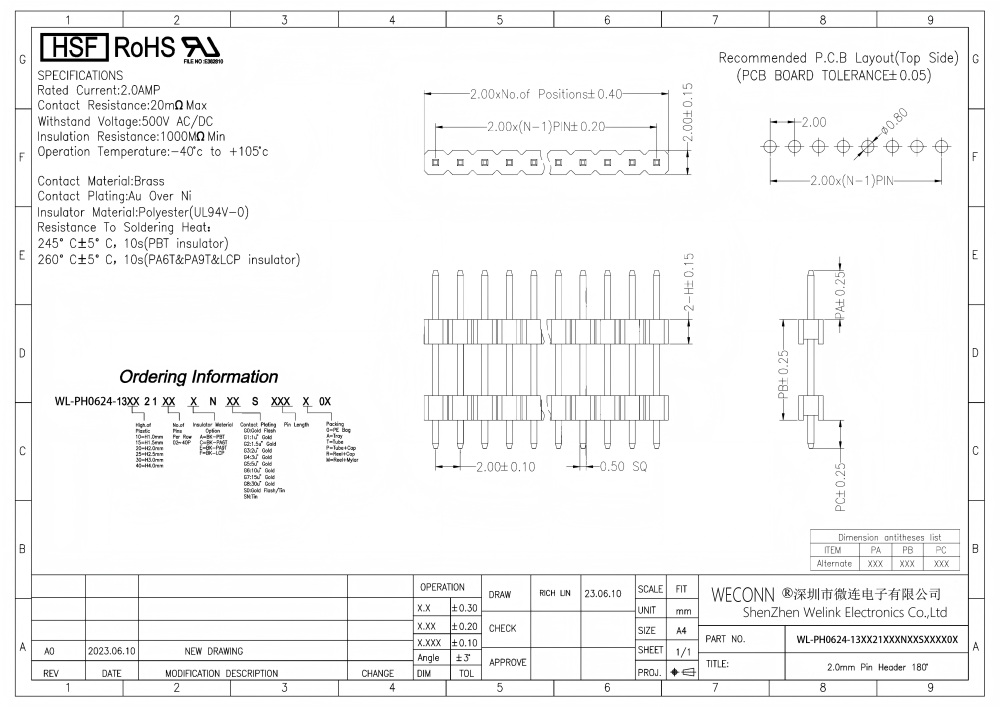

Drawing:
