Battery Connector

A11F-C-9P-S2

Product name: Battery Connector
Number: A11F-C-9P-S2
Specifications: Battery Connector,Female Header, 9Pin, 2.03mm Pitch, ST
INQUIRY EMAIL

Technical parameters:

1.Insulator:Nylon 9T(UL94V-0)

2.Contact:phosphor Bronze

3.Contact Plated: Gold over Nickel or Tin

4.Current Rating: 5A

5.Instant current:7A

6.Contact Resistance: 30MΩ

7.Insulation Resistance: 100MΩ

8.Dielectric Voltage: 500V

9.Operdting Temperature: -40°~105°

Product Description:

1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

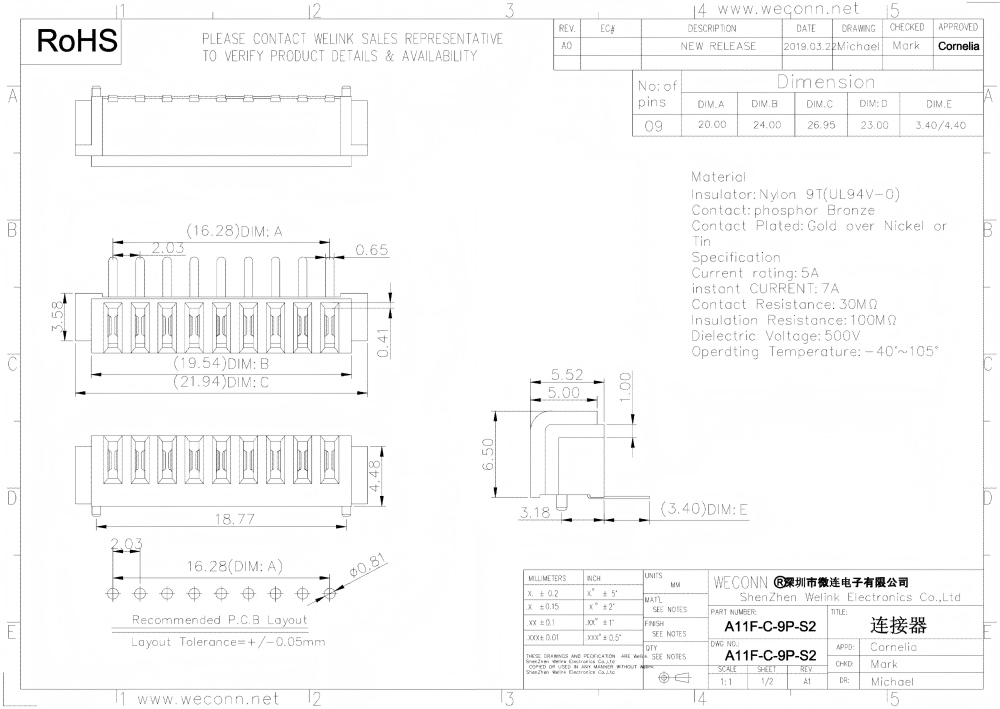

Drawing:
