Board To Board Connector

WL-HSP501-M060032XXFX0X

Product name: High‑Speed Planar Board to Board Connector
Number: WL-HSP501-M060032XXFX0X
Specifications: 0.5mm High-Speed BTB 60Pin H4.06 Female
INQUIRY EMAIL

Technical parameters:

1.Signal contact current rating: 2.0 A

2.Ground Plane powered current rating: 25.0 A

3.Voltage Rating: 125 V AC

4.Signal current rating: 2 A per pin

5.Contact resistance: 50 mΩ max.

6.Insulation resistance: 500 MΩ min.

7.Withstang voltage: 500 V AC for 1 minute

8.Operating temperature: -55℃ ~ +125℃

9.Contact: Phosphor bronze, gold plated

10.Max. soldering temperature: 260℃±5℃ for 5 seconds

11.Housing: LCP

Product Description:

1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

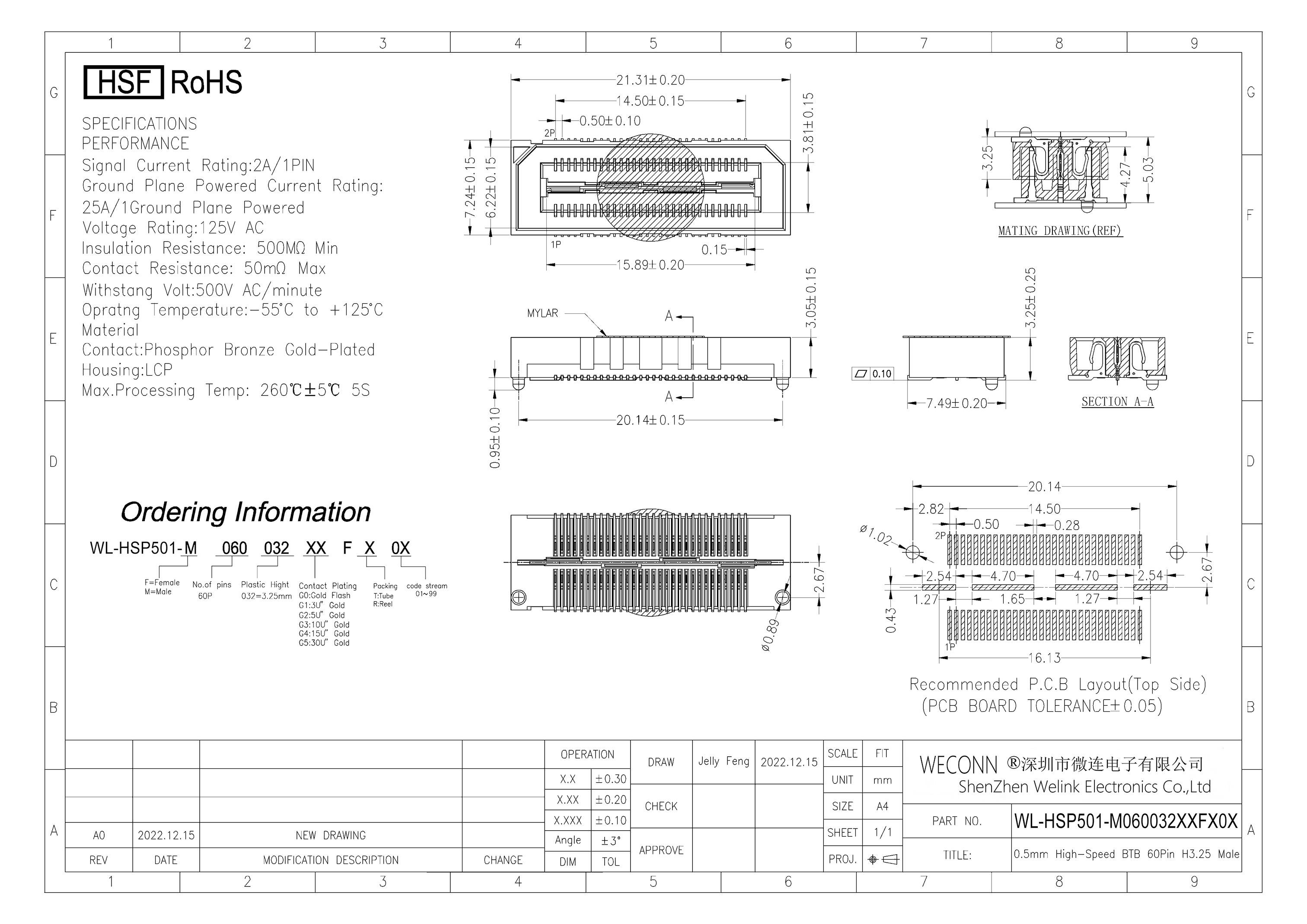

Drawing:
