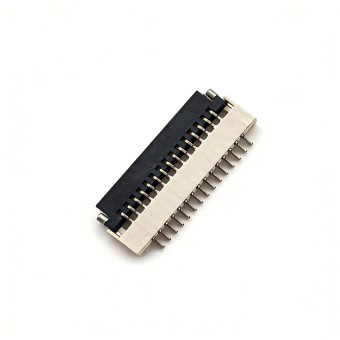

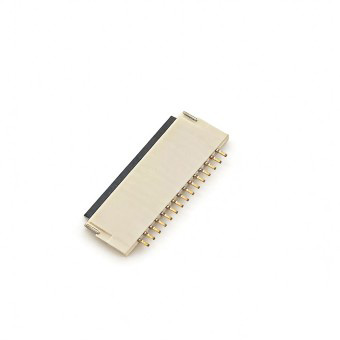

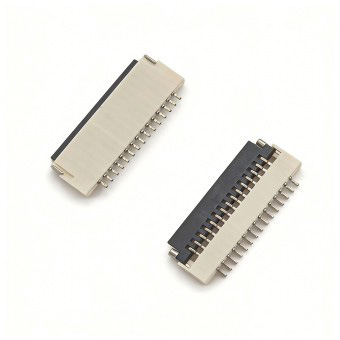

FPC connector

WL-FA0510-xxRD-GX

Product name: FPC connector;
Part Number: WL-FA0510-xxRD-GX;
Specifications: FPC 0.5P 1.0H connector 0.3P FPC;
Plastic: LCP, Natural/Black, High Temp Resistant, UL94 V-0;
Terminal: Phosphor Bronze;
Shell: LCP
INQUIRY EMAIL

Technical Parameters:

1.Housing: High-Temp Plastic,Ul 94-V0,Color:White;

2.COVER: HIGHT-TEMP PLASTIC,UL 94-V0,COLOR:BLACK;

3.Contact: Phosphor Bronze

4.Leg: Brass.

5.Contact: Gold Or Tin Plated On Nickel Overall.

6.Leg: Tin Plated On Nickel Overall.

7.Current Rating: 0.4A AC/DC

8.Voltage Rating: 50V AC/DC

9.Temperature Range: -55'C~+85'C;

Product Description:

1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

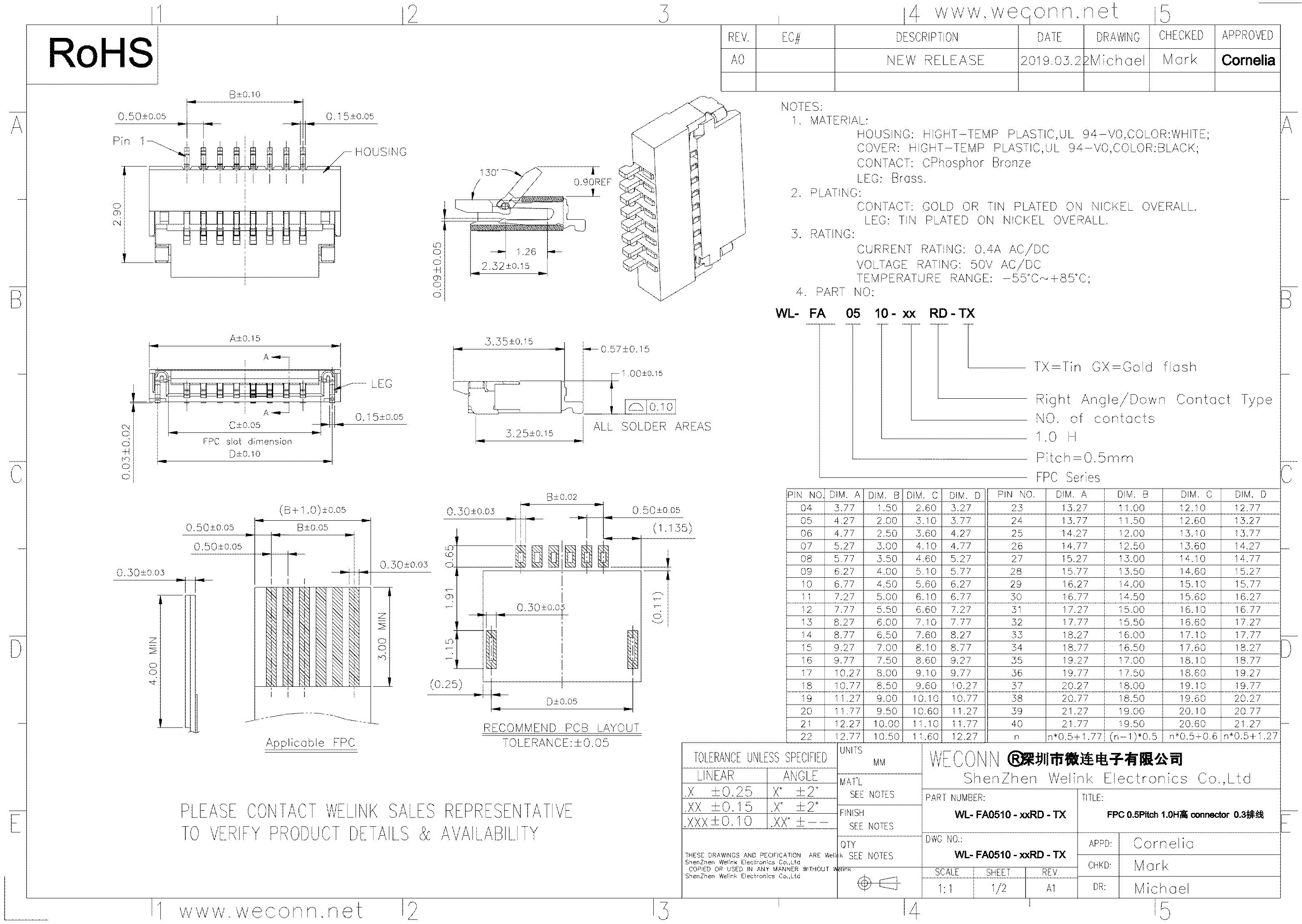

Drawing:
