FPC connector

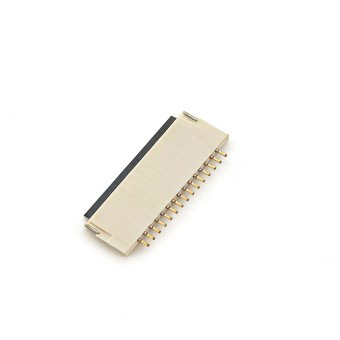

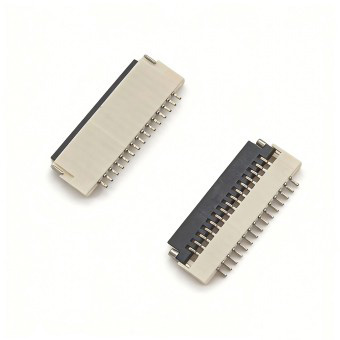

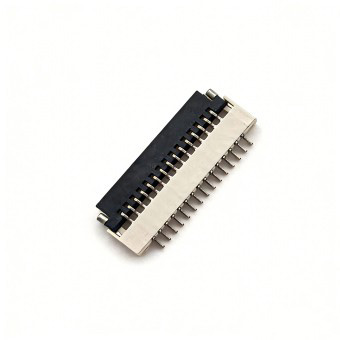

WL-FA0515-xxRD-GX

Product name: FPC connector;
Part Number: WL-FA0515-xxRD-GX;
Specifications: FPC 0.5Pitch 1.5H ZIF R/A Down Contact Connector ;
Plastic: LCP, Natural/Black, High Temp Resistant, UL94 V-0;
Terminal: Phosphor Bronze;
Shell: LCP
INQUIRY EMAIL

Technical parameters:
1.HOUSING: HIGHT-TEMP PLASTIC,UL 94-V0,COLOR:WHITE;
2.COVER: HIGHT-TEMP PLASTIC,UL 94-V0,COLOR:BLACK;
3.CONTACT: Phosphor Bronze
4.LEG: Brass.
5.CONTACT: GOLD OR TIN PLATED ON NICKEL OVERALL.
6.LEG: TIN PLATED ON NICKEL OVERALL.
7.CURRENT RATING: 0.4A AC/DC
8.VOLTAGE RATING: 50V AC/DC
9.TEMPERATURE RANGE: -55'C~+85'C;

Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

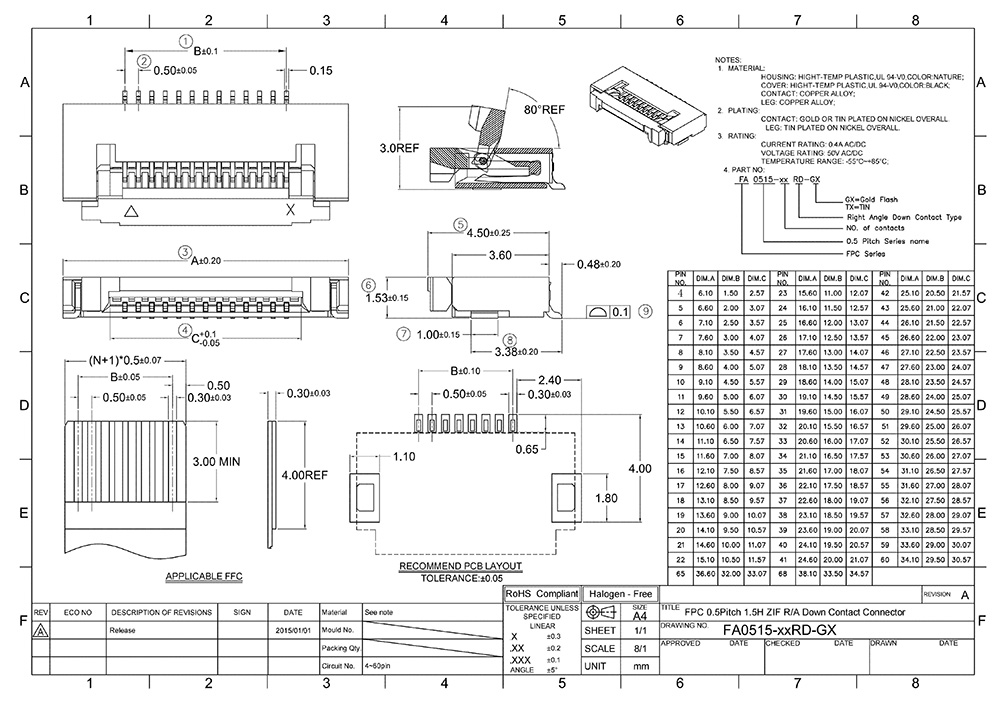

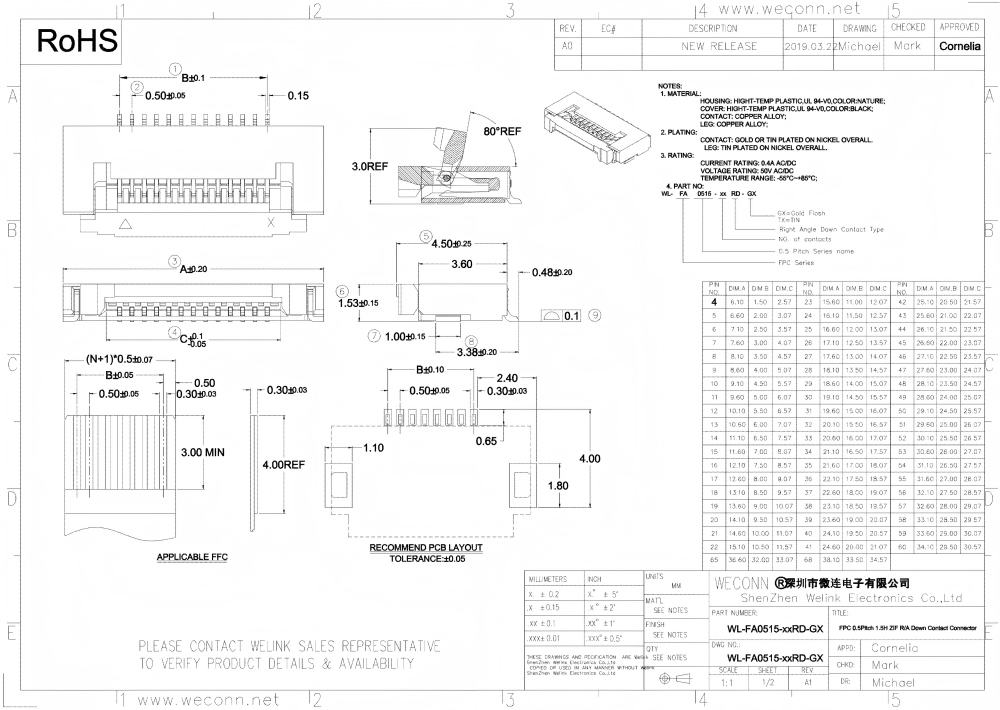

Drawing:
