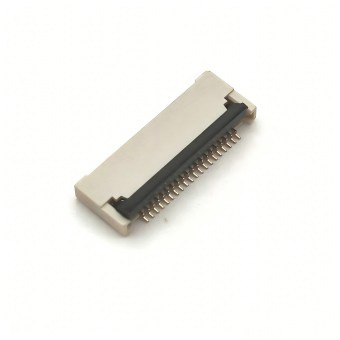

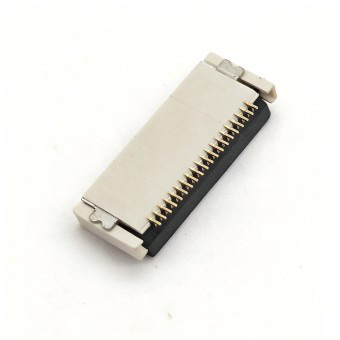

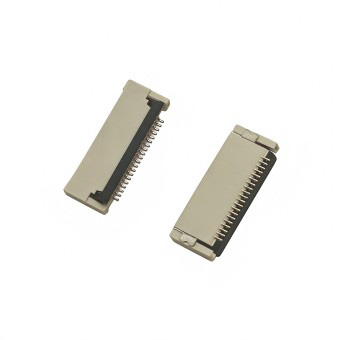

FPC connector

WL-FB0520-xxR-GX

Product name: FPC connector;
Part Number: WL-FB0520-xxR-GX;
Specifications: FPC 0.5P H2.0 BACK FLIP TYPE CONNECTOR;
Plastic: LCP, Natural/Black, High Temp Resistant, UL94 V-0;
Terminal: Phosphor Bronze;
Shell: LCP
INQUIRY EMAIL

Technical parameters:
1. Rated current: 0.5A AC/DC
2. Rated voltage: 50V AC/DC
3. Operating temperature: -55°C ~ +85°C
4. Storage temperature: -55°C ~ +85°C
5. RoHS compliant
6. Stable and superior performance

Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

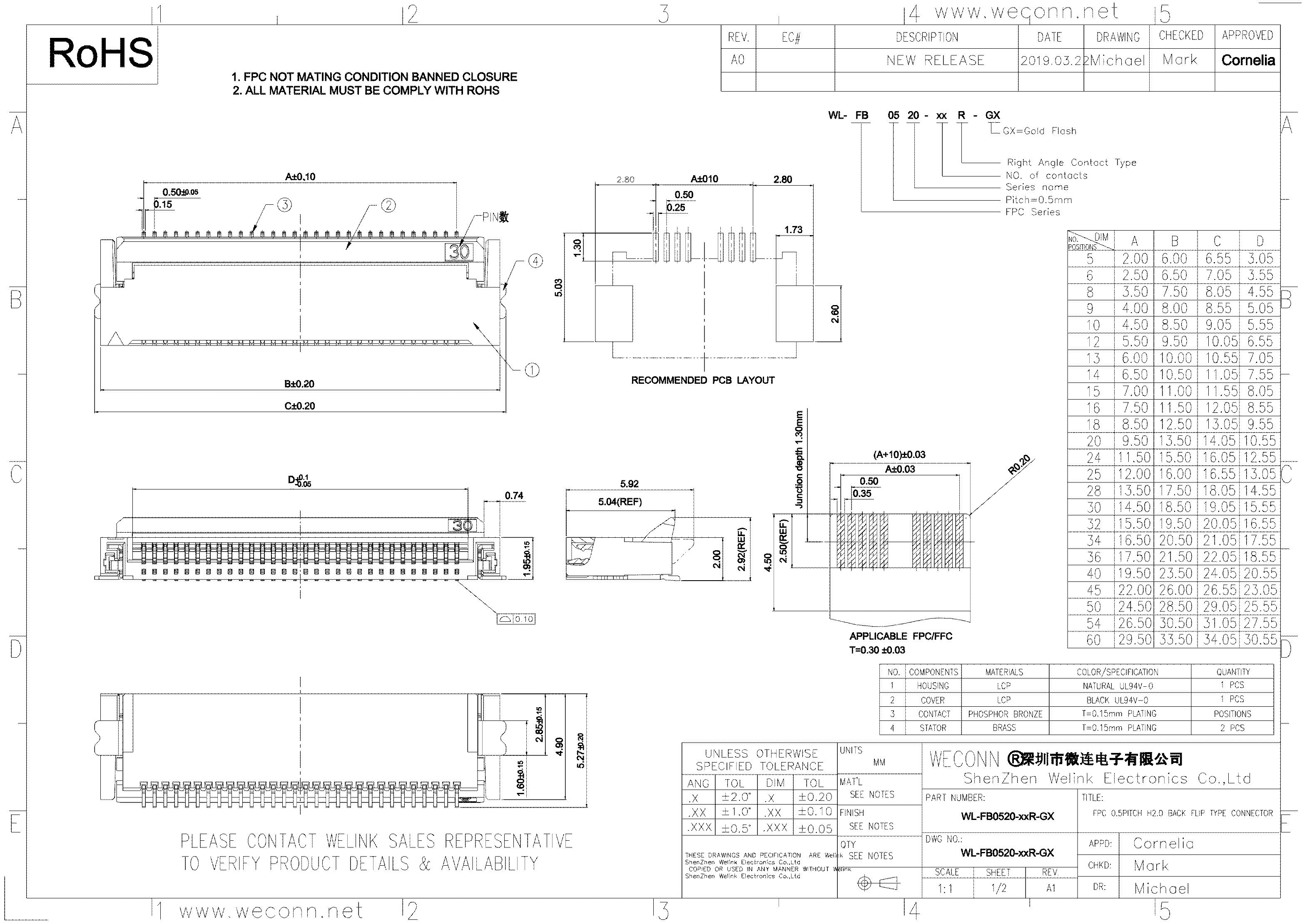

Drawing:
