Technical parameters:
1.Insulator:Nylon 9T(UL94V-0)
2.Contact:phosphor Bronze
3.Contact Plated: Gold over Nickel or Tin
4.Current Rating: 5A
5.Instant current:7A
6.Contact Resistance: 30MΩ
7.Insulation Resistance: 100MΩ
8.Dielectric Voltage: 500V
9.Operdting Temperature: -40°~105°
Product Description:
1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

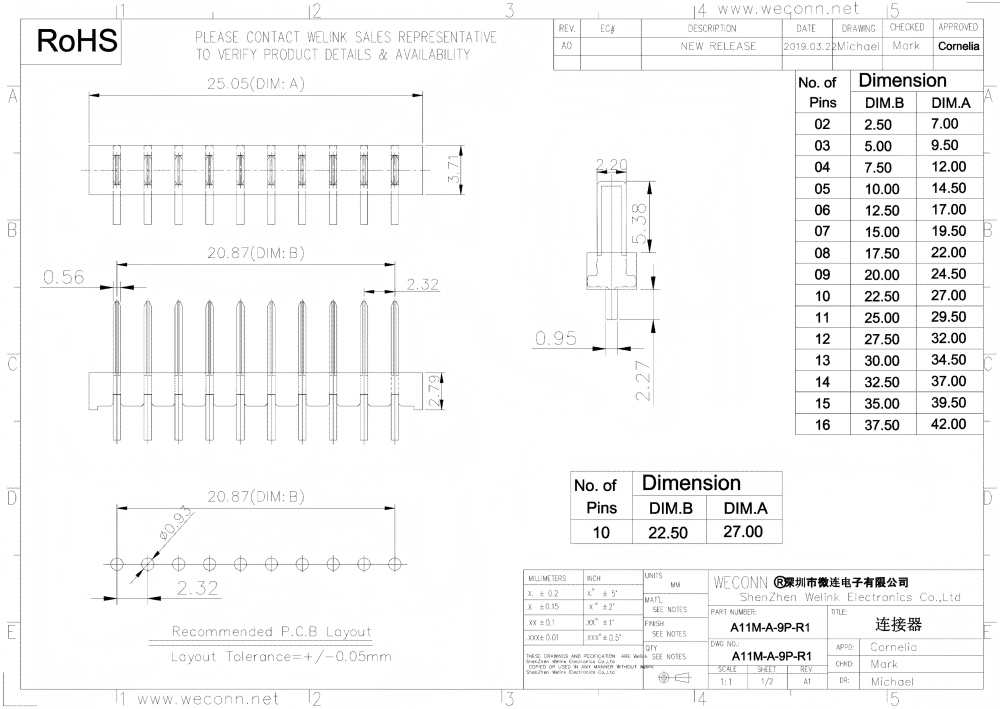

Drawing:
