Inquiry:
Technical parameters:
1. Rating: DC 12V 5A/Pin
2. Contact Resis: 30MΩ MAX(Inital)
3. Dielectric Withstanging Voltage: 500V AC For One Minute
4. Insulation Resistance: 500MΩ MIN , Measured By 500V DC
5. Life Test : Mechanical Life Test 5, 000 Cycles.
6. Temperature Rise : 30° C MAX
Product Description:
1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

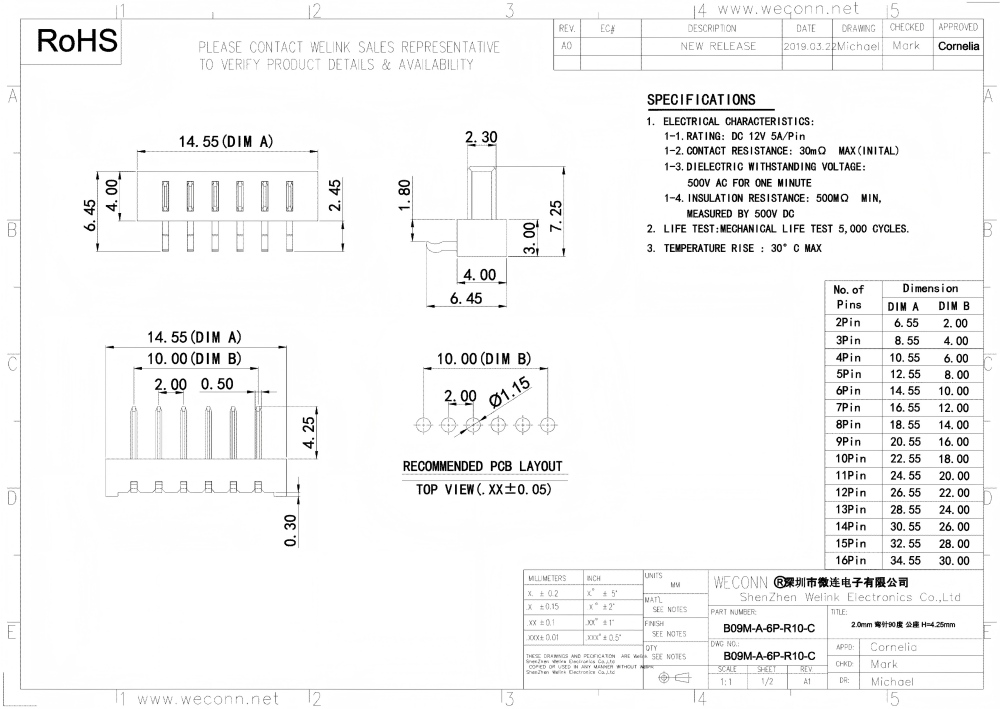

Drawing:
