Technical parameters:
Current Rating:1.0AMP
Contact Resistance:10mΩ Max
Dielectric Strength:Min 1000V RMS
Operation Temperature:-40°c to +105°c
Contact Material:Brass
Contact Plating:Au Over Ni
Insulator Material:Polyester(UL94V-0)
Standard:PPS
Max.Processing Temp:260°± 5°C For 5~ 10 Second
Product Description:
1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

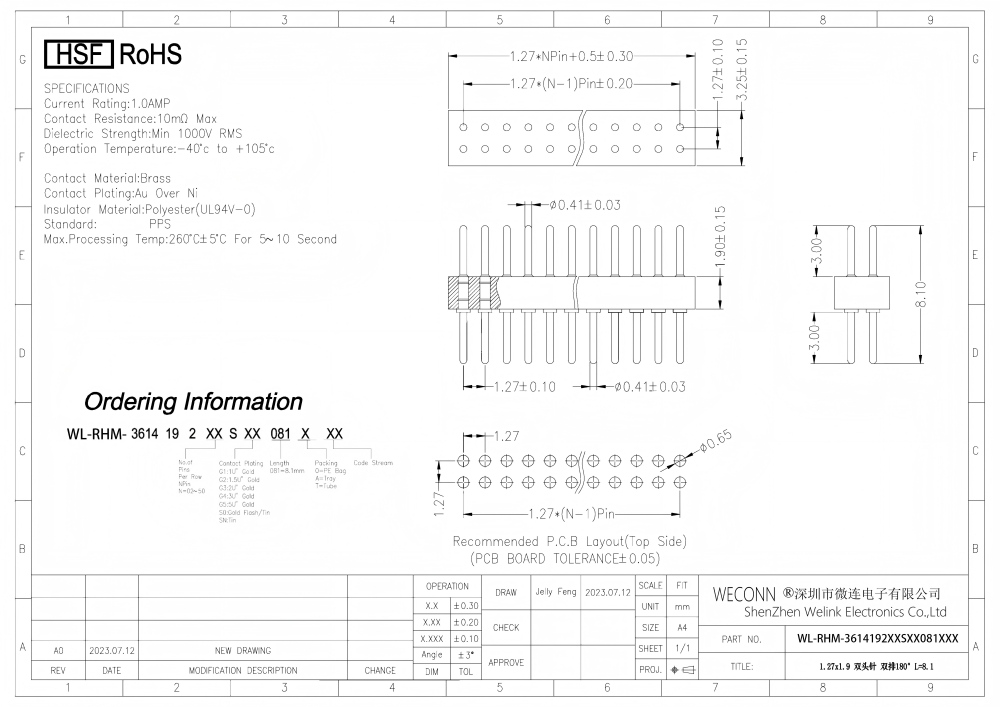

Drawing:
