Technical parameters:
Insulator: Black glass filled polyester PPS-GF30-FR
Flammability: UL 94V-0
Sleeve: Brass
Accepted pin: Φ0.41 mm
Mechanical life: min500 cycles
Rated current: 1A
Dielectric resistance: Min 1000V RMS
Coplanarity SMD
terminations: max 0.1 mm(measured on 25 mm long connectors)
Product Description:
1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

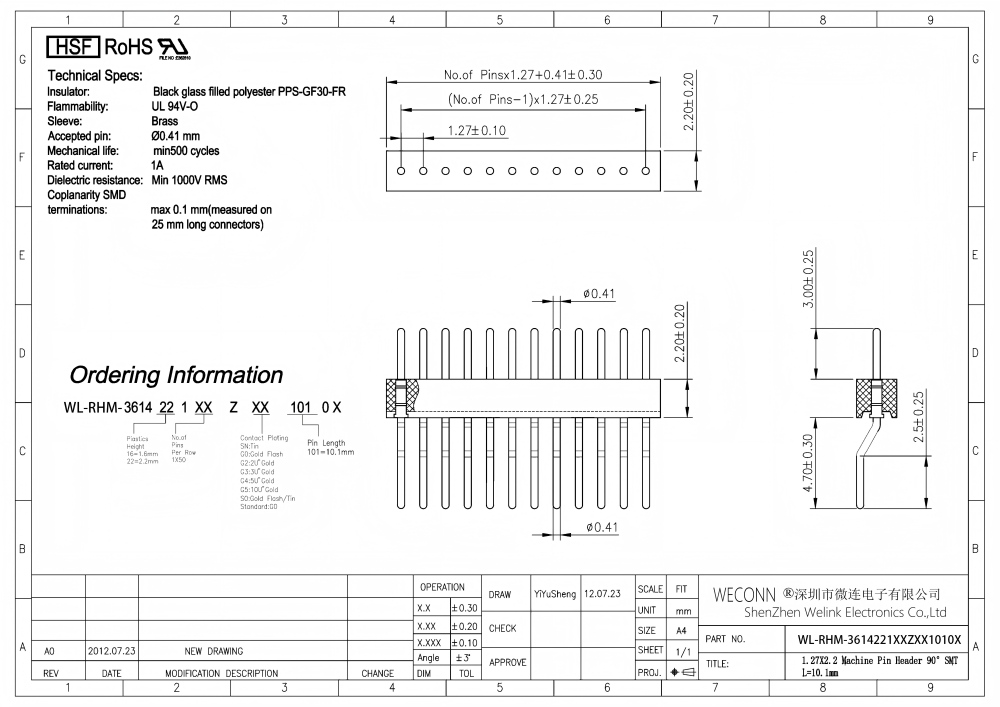

Drawing:
