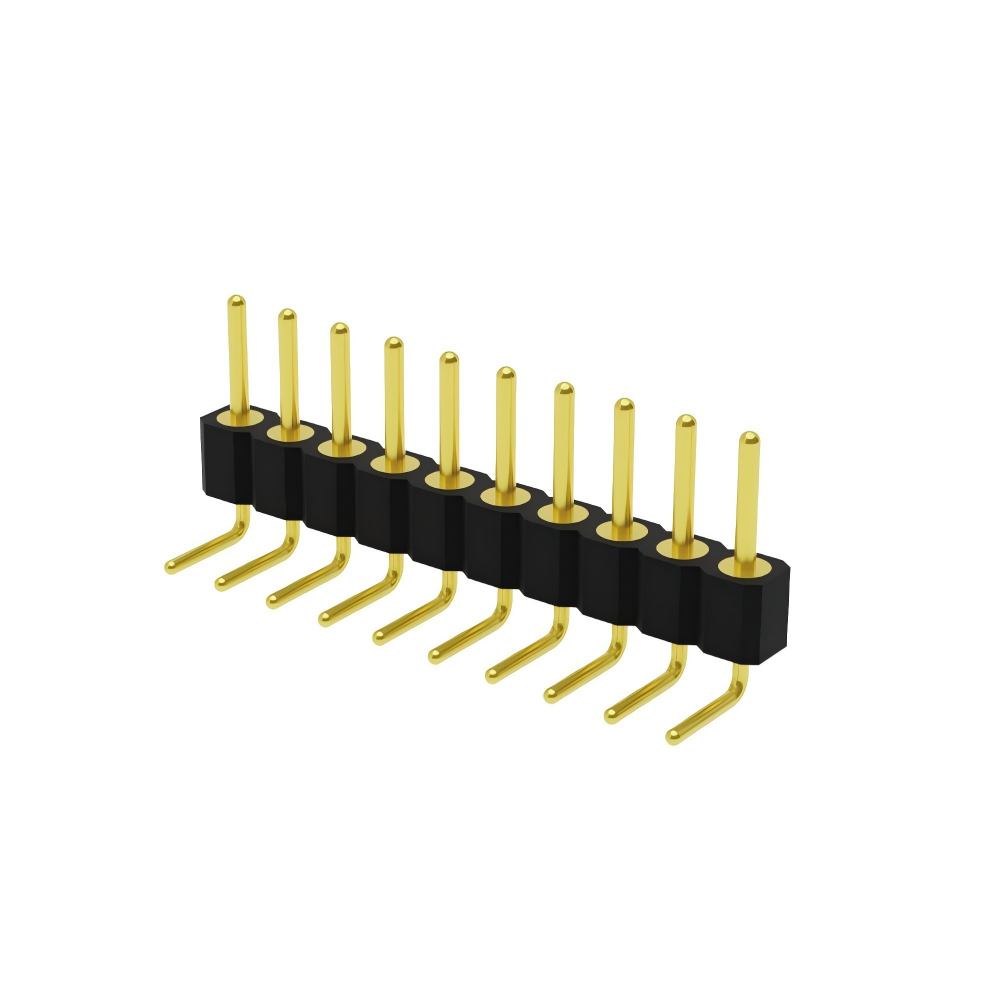

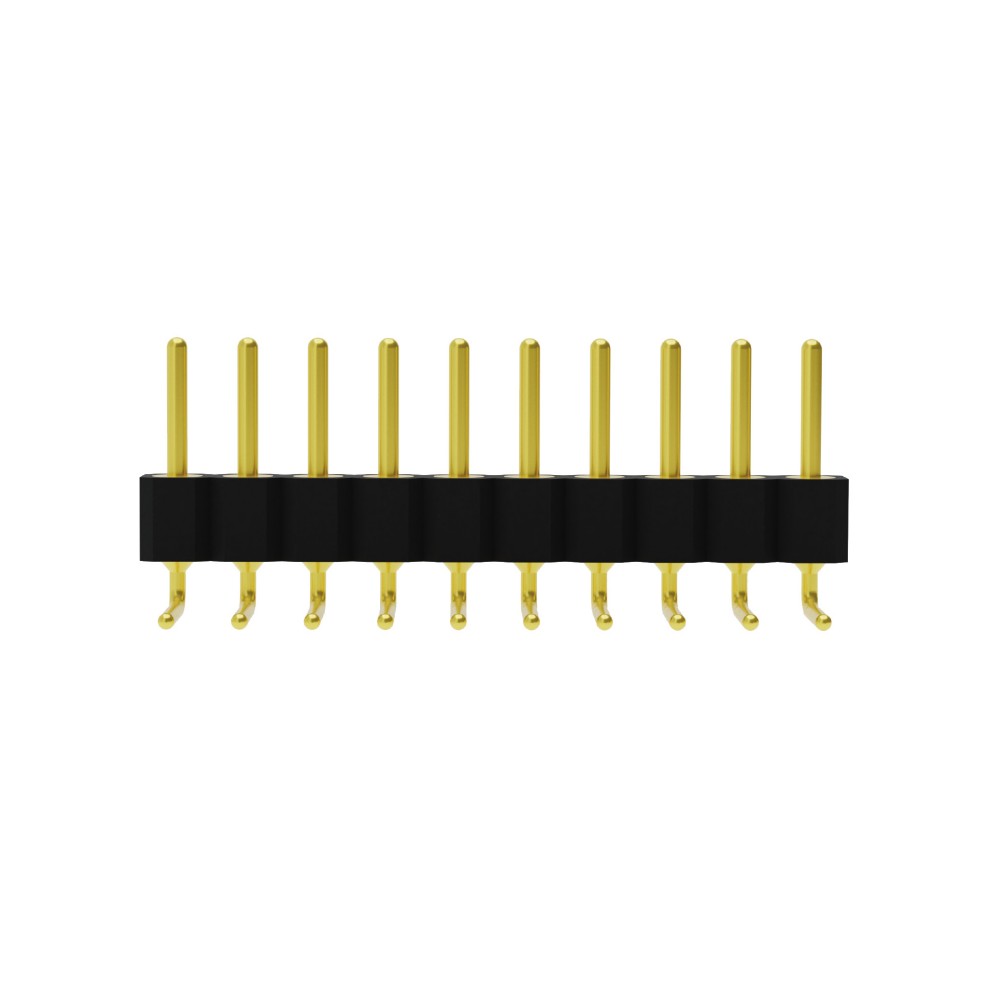

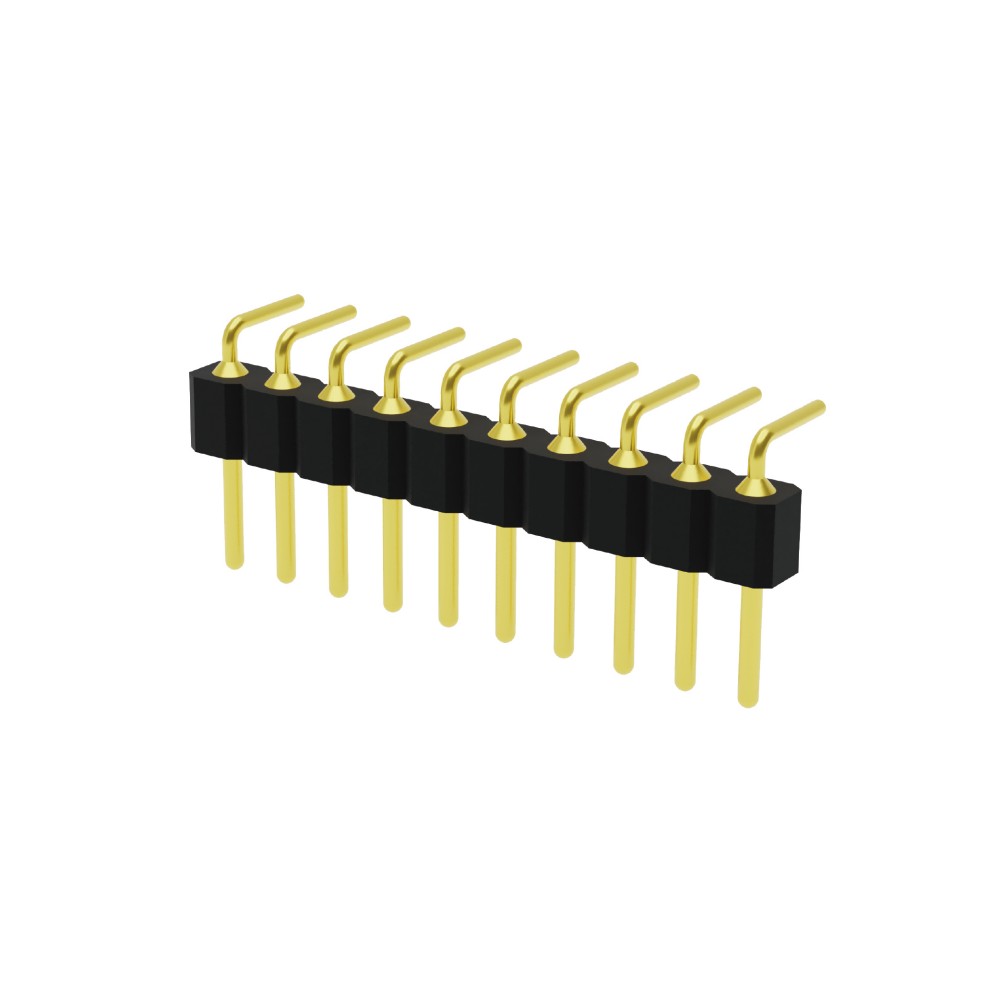

Round Pin Header

WL-RHM-3610301XXG0R1370X

Product name: Round Pin Header
Number:WL-RHM-3610301XXG0R1370X
Specifications: 2.54mm Round Hole Double End Pin / H3.0 / Single Row 90° / L13.76
INQUIRY EMAIL

Technical parameters:

Masterials:

Pin :Brass,

Plating:

Tin plated :1.25u"m/50u"nickel,5um/200u"Tin

Gold plated:1.25u"m/50u"nickel,full gold

Insulator body(black):Glass filled polyester Valox UL94V-0

Rated Current:3.0AMP

Contact Resistance:20mΩMax

Withstand Voltage:1000V AC/DC

Insulation Resistance:1000MΩ Min

Mechanical:

Operating temperature :-40°C to +105°C

Soldering temperature:260°C,10s max

Product Description:

1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

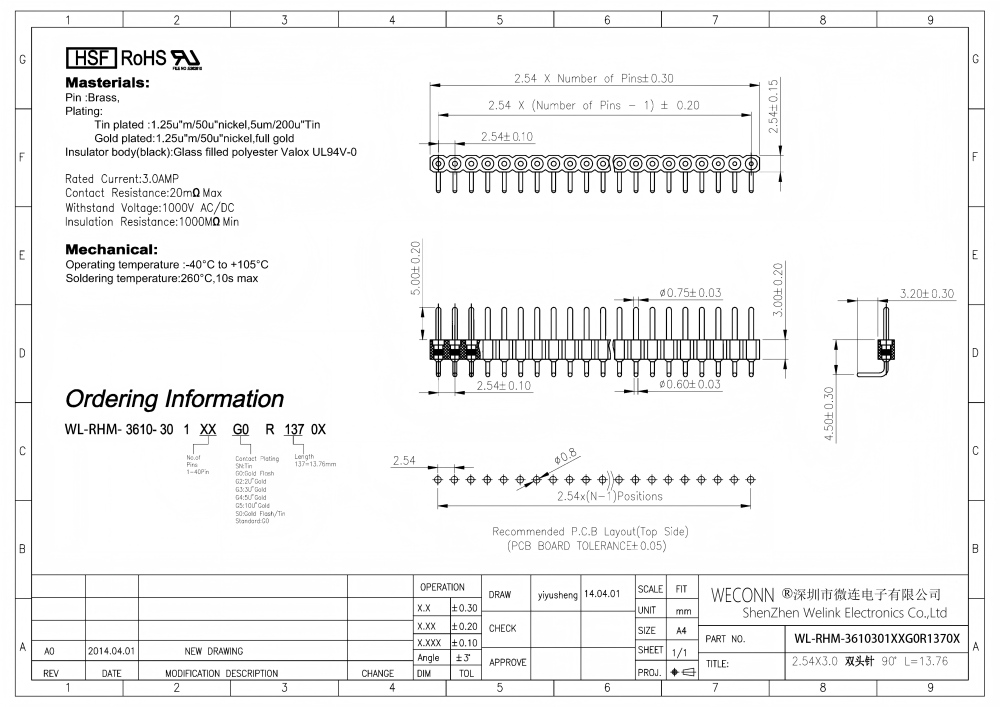

Drawing：
