Fiber Optic Connector

WL-FOC-7310-44110SXX103X0X

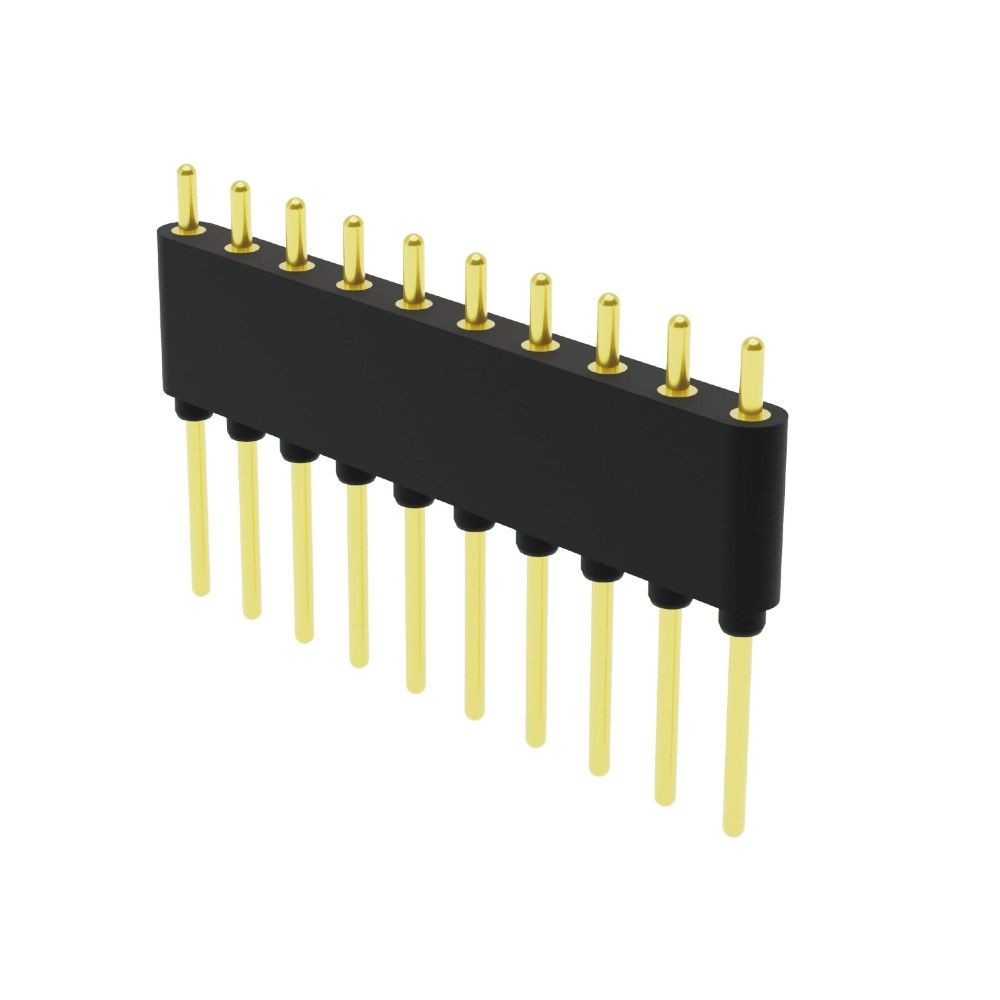

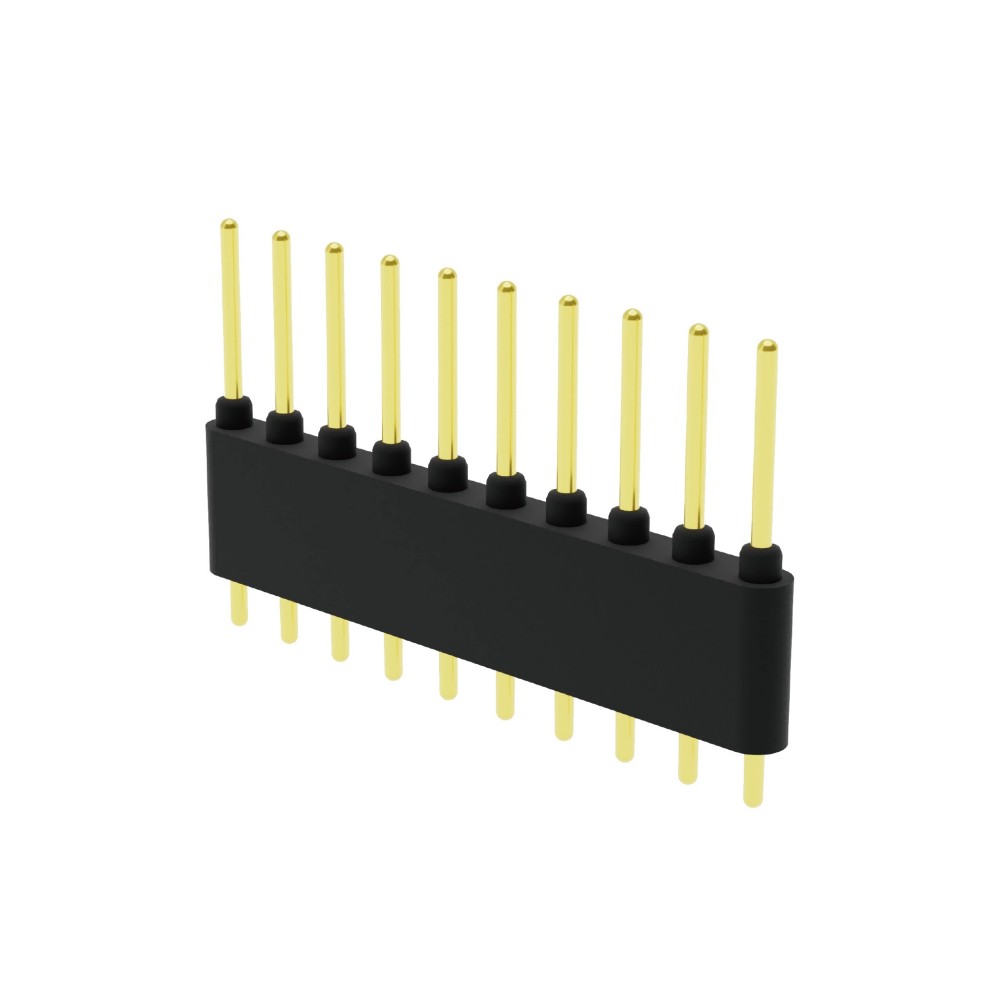

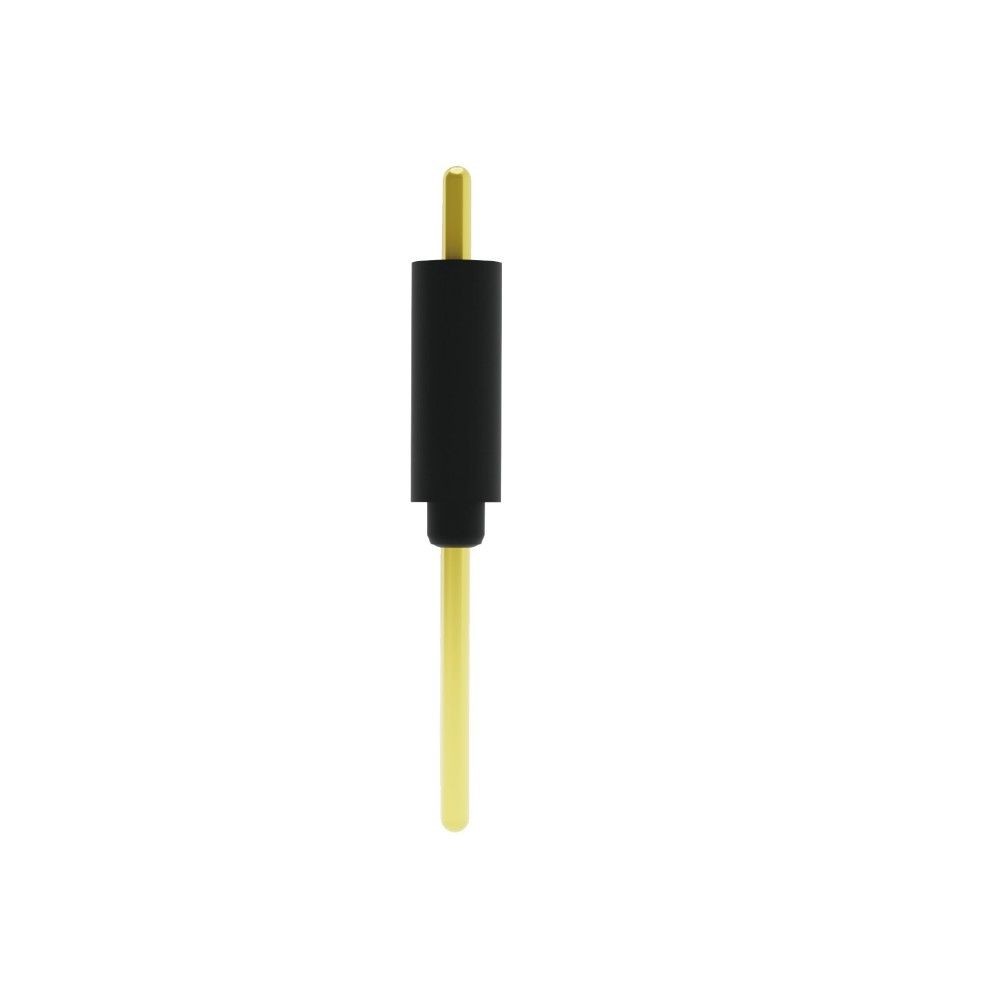

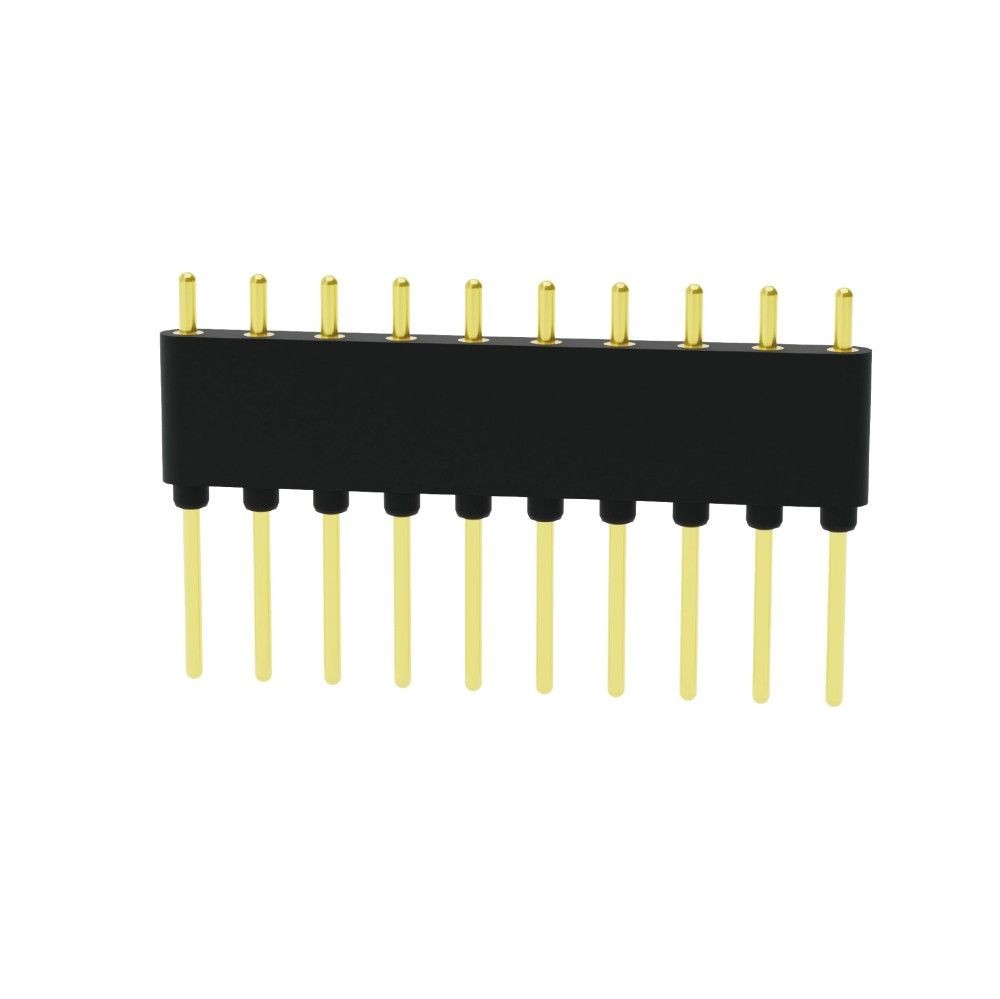

Product name: Fiber Optic Connector
Number:WL-FOC-7310-44110SXX103X0X
Specifications: Pitch 1.778mm,H3.7 Round Hole Pin Header,Single Row,180°,L10.3
INQUIRY EMAIL

Technical parameters:
Current Rating:1.0AMP
Contact Resistance:20mΩ Max
Withstand Voltage:500V AC/DC
Insulation Resistance:1000MΩ Min
Operation Temperature:-40°c to +105°c
Contact Material:Brass
Contact Plating:Au Over Ni
Insulator Material:Polyester(UL94V-0)
Resistance To Soldering Heat: 260°C±5°C , 10s(PA46 insulator)

Product Description:
1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

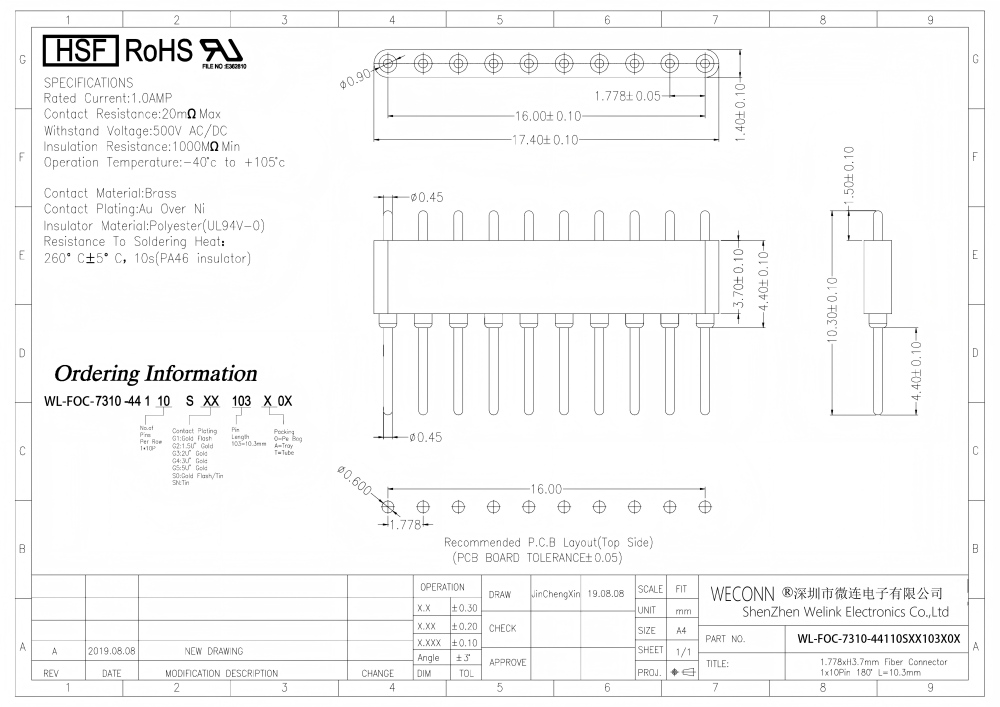

Drawing：
