Technical parameters:
1.Mechanical:
1.1 Insertion Force: 5N ~ 20N
1.2 Withdrawal Force:8N ~ 20N For Initial,6N~20N After Test
1.3 Durability :10,000 Cycles
2.Electrical:
2.1 Current Rating: 5.0A ,
Voltage Rating:5.0V
2.2 LLCR:VBUS&GND And Other Pin:40 MΩ(max)
Initial,Shield:50 MΩ(max)
LLCR Change Of All Pins:10 MΩ(max)
2.3 Dielectric Withstanding Voltage: 100 VAC For 1 Minute
2.4 Insulation Resistance : 100 MΩ Min
3.Environmental:Operation Temperature : -25°C~ +85°C.
4.IR Reflow:The Peak Temperature On The Board Shall Be Maintained For 10 Seconds At 260°C
Product Description:
1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

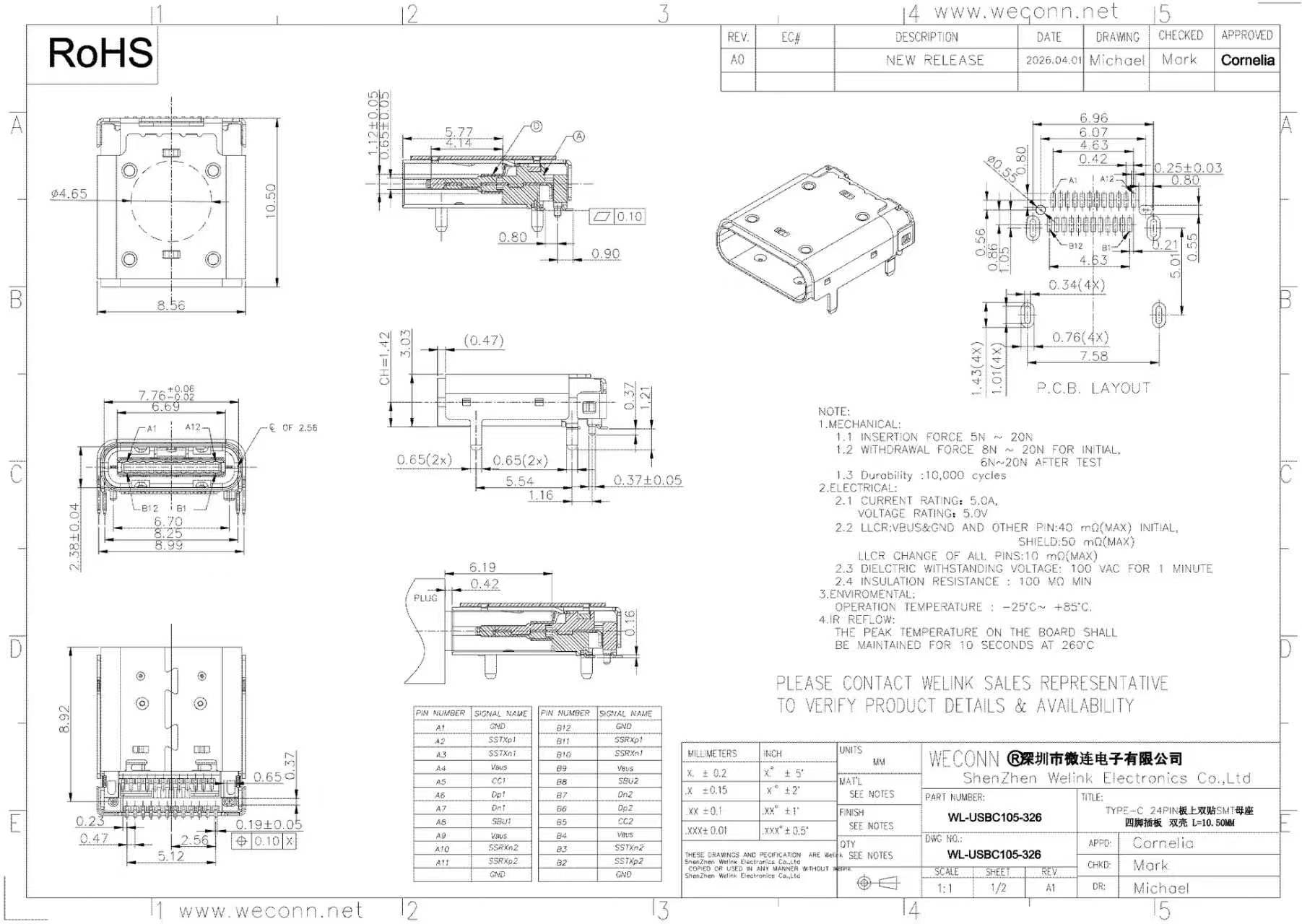

Drawing:
