TYPE C

WL-UTC965-418

Product name: Type-C Female;
Part Number: WL-UTC965-418;
Specifications: USB Type-C Female, 24P, Top-Mount Dual SMT, L=9.65mm, CH=1.75mm;
INQUIRY EMAIL

Technical Parameters:
1.Electrical Performance
1-1.Current Rating:3A
1-2.Contact Resistance:40MΩ Max Initial,50MΩ Max After Text
1-3.Dielectric Withanding Voltage:100V AC R.M.S
1-4.Insulation Resistance:100MΩ
2.Mechanical Performance
2-1.Insertion Force:5~20N
2-2.Extraction Force:2~20N
2-3.After Text:6~20N
2-4.Durability:10000 Cycles
3.Environmental Performance
3-1.Operating Temperature:-40℃~85℃
4.IR Reflow:Board Peak Temperature Shall Be Kept At 260℃ For 10 Seconds

Product Description:
1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

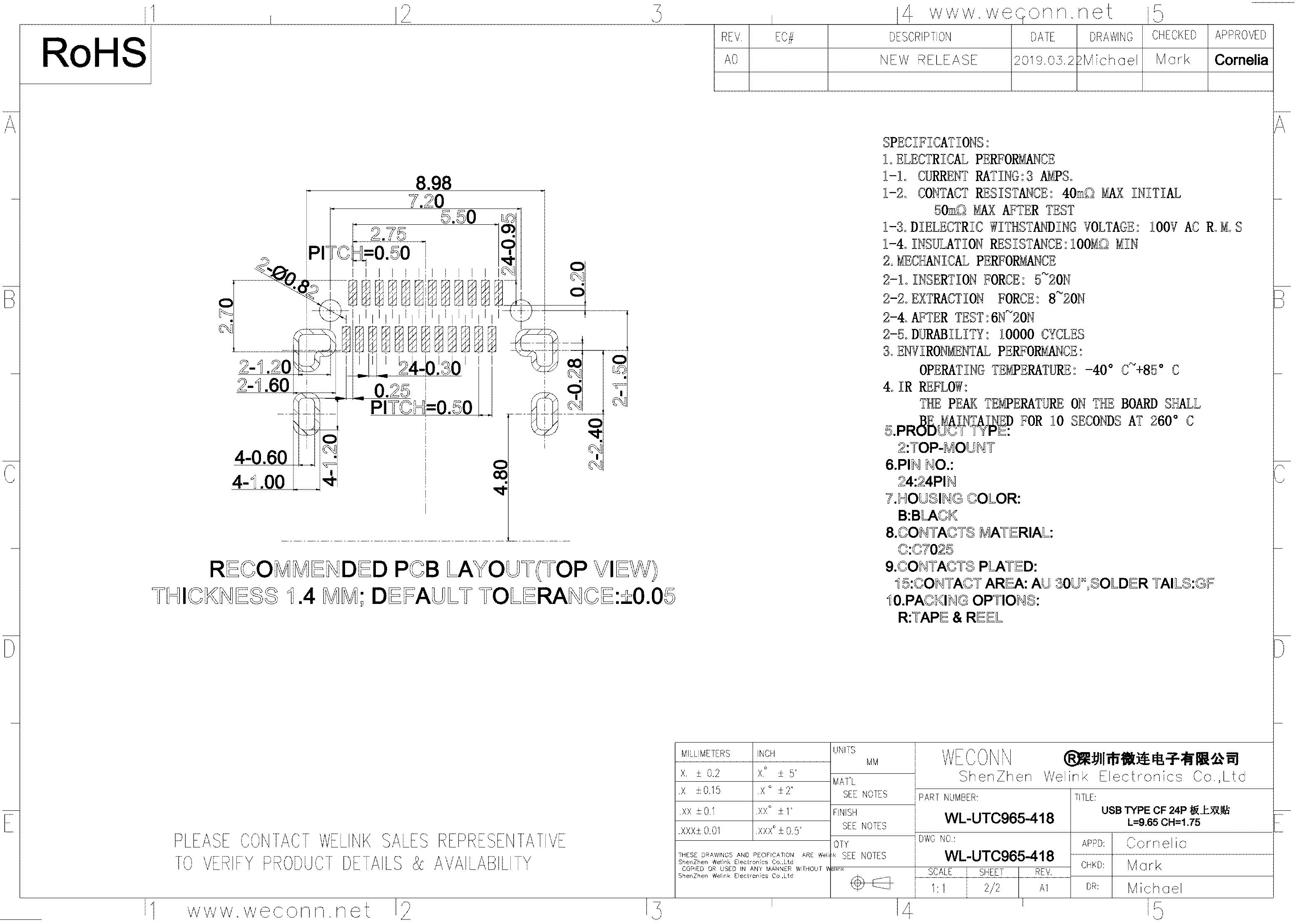

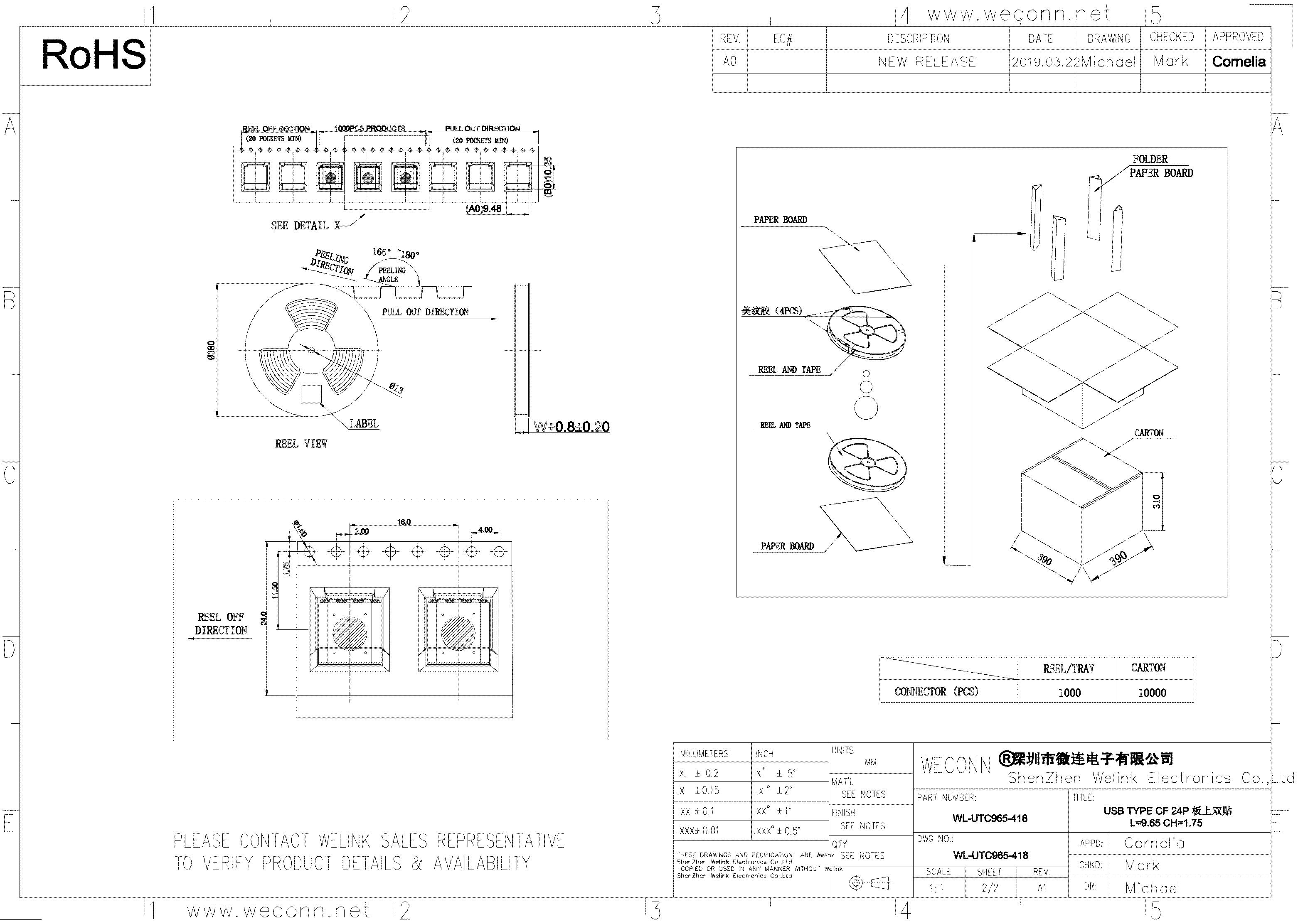

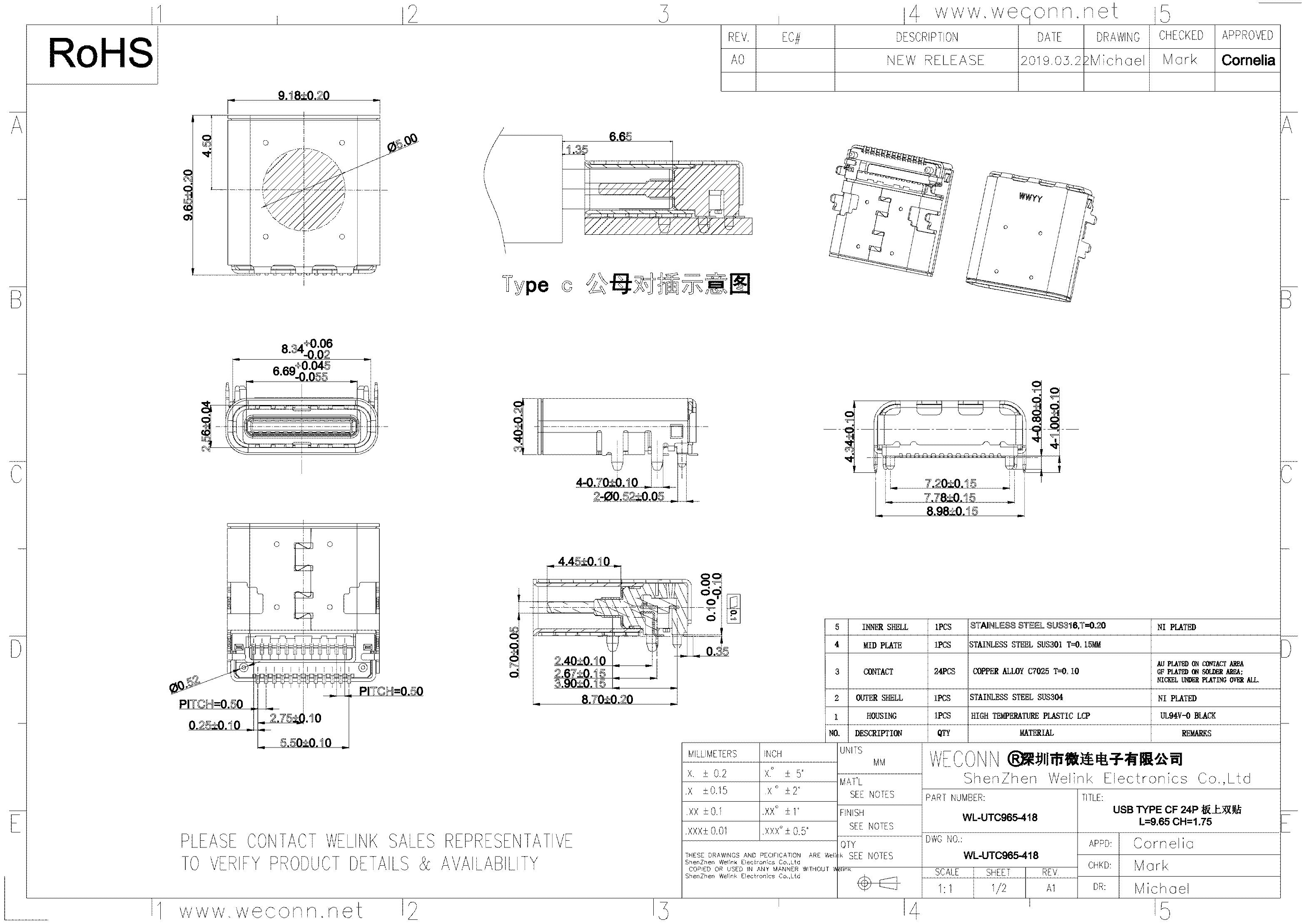

Drawing:
