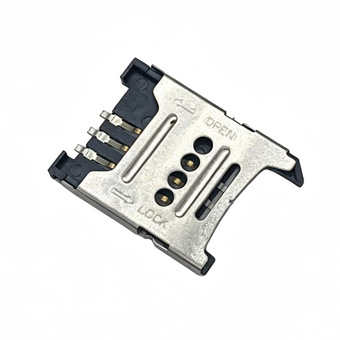

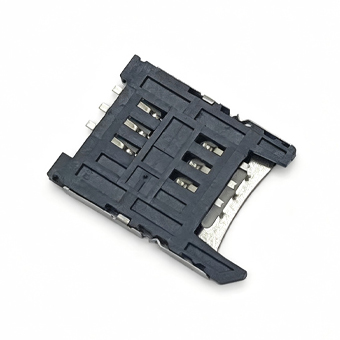

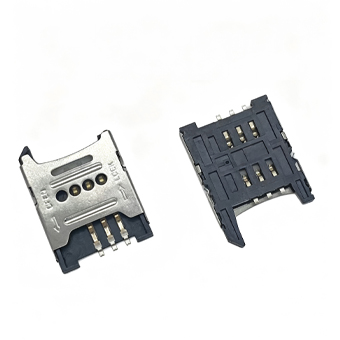

Technical parameters:
1.MATERIAL:
1.1.Housing:HI-TEMP Plastic,UL94V-0,Black;
1.2.Terminal:Copper allloy
1.3 Shell:Stainless Steel
2.FINISH:
2.1 Terminal:Au Plated on the contact area,Matte tin plated onthe solder tails underplated over nickel;
2.2 NAIL: Plated Au On The Solder Area.
3. Electrical Performance:
3.1 Contact Resistance:50mΩ Max
3.2 Dielectric Withstanding Voltage:350V AC rms for 1 minute
3.3 Insulation Resistance:1000 MΩ Min
4. Mechanical Performance:
4.1 Durability:3000 cycles;
4.2 Normal force: 20gf/PIN Min;
Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

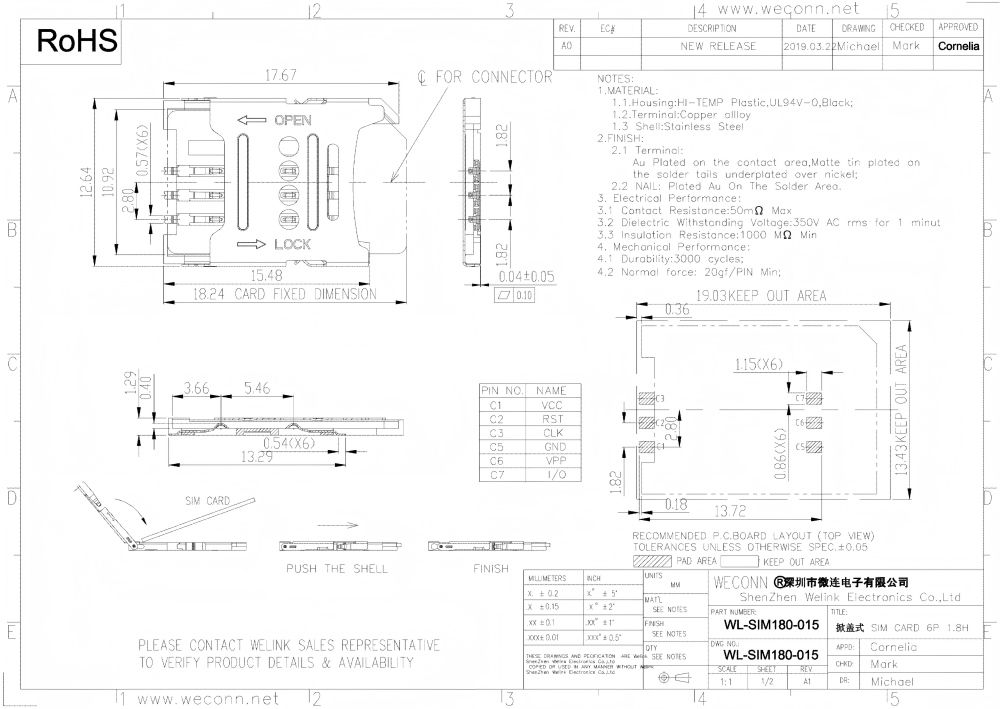

Drawing:
