Technical parameters:
Material:
Insulator: High Temperature Thermoplastic,UL 94V-0. Black Color LCP
Contact: Copper Alloy
Plating:
Contact: Plated 50u'' Ni Overall
Plated Au Selective Contact Area
Plated 100u''Sn Over Ni On Solder Area
Shell: Plated 50u'' Ni Overall
Plated 1u"Au Selective Contact Area
Electrical:
Current Rating :0.5Amps max
Voltage Rating :5V AC/DC
Ambient Temperature Range :-20°C~+60° C
Storage Temperature Range:-40°C+70°C
Ambient Humidity Range :95% R.H.Max.
Contact Resistance:100mΩmax.
Insulation Resistance:1000MΩmin./500VDC
Mating Cycles:5,000 Insertions
Product Description:
1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

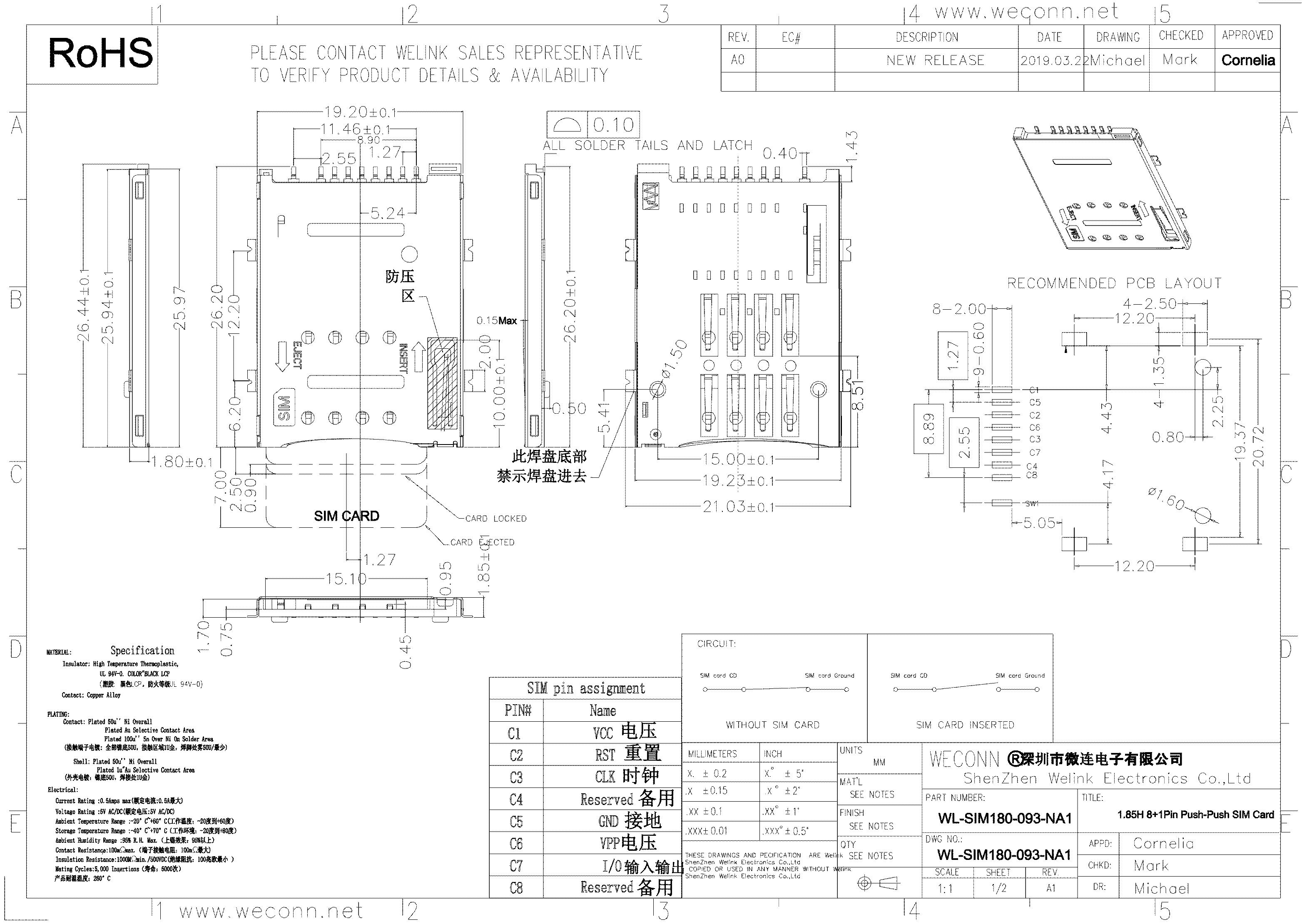

Drawing:
