WAFER Patch Socket

WL-WR-1*NPX-B

Product name: WAFER Patch Socket
Part Number: WL-WR-1*NPX-B
Specification:MX2.54 Bent Pin Header (YCDG)
INQUIRY EMAIL

Technical parameters:
1.Voltage Rating:250V AC/DC;
2.Current Rating:3A AC/DC;
3.Withstanding Voltage:1500V AC/minute
4.Insulatin Resistance:1000MΩ Min
5.Temperature Range:-25°C~+85°C
6.Contact Resistance:20MΩ Max
7.Poles:2-20P
8.Housing Material:PA66 UL94-V0
9.PIN Material:Brass

Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

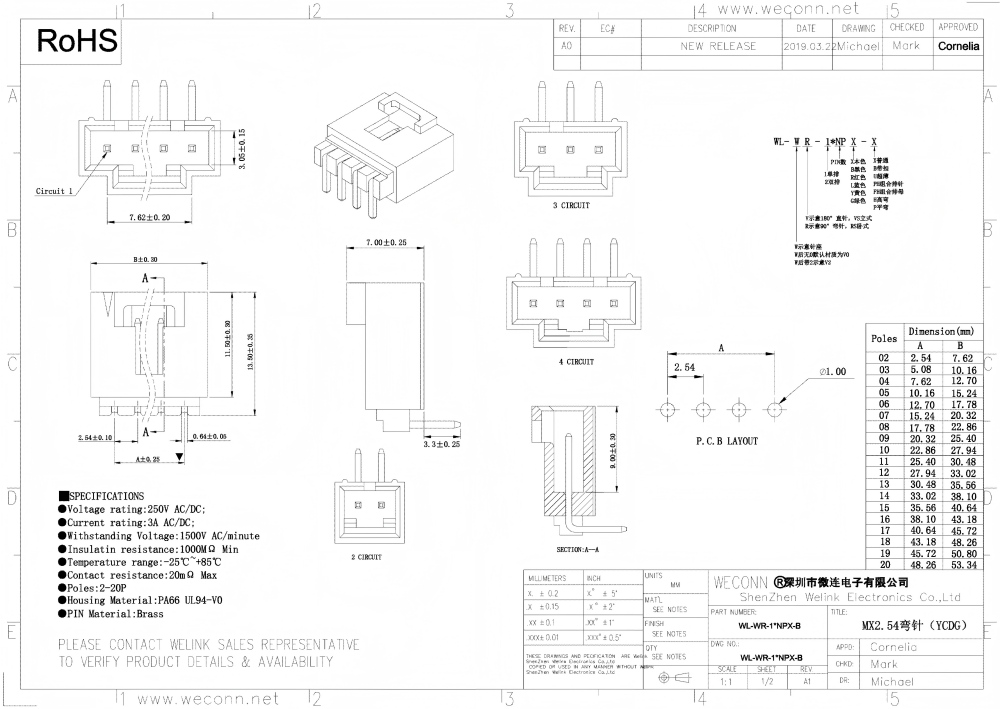

Drawing:
