Technical parameters:
1.Voltage Rating: 250V AC, DC
2.Current Rating: 5A, AC, DC
3.Withstanding Voltage: 1500V AC/Minute
4.Insulation Resistance:1000MΩ min
5.Temperature Range: -25° C~+85° C
6.Contact Resistance: 10MΩ max
Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

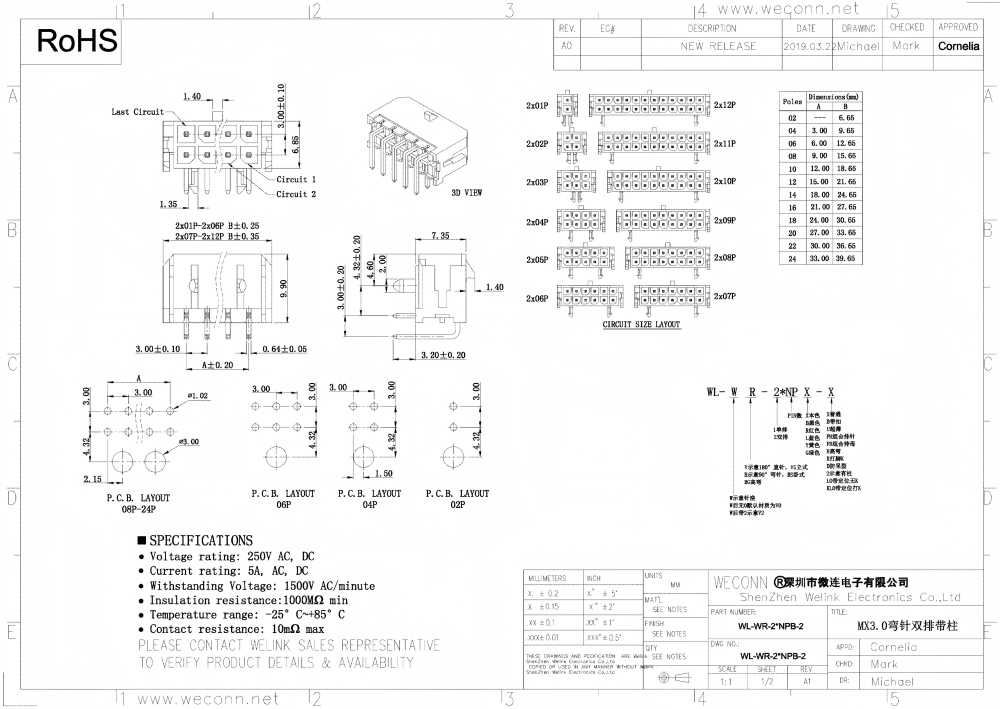

Drawing:
