Technical parameters:
Insulator:Black glass filled polyester
PPS-GF30-FR
Flammability: UL 94V-0
Sleeve: Brass
Contact clip(4 finger): Beryllium copper(C17200)
Accepted pin:∅ 0.40 to 0.56mm
Forces: (polished steel gauge @0.43mm)
Rated current:3A
Contact resistance: max 20mΩ
Dielectric resistance: Min 1000V RMS
Product Description:
1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

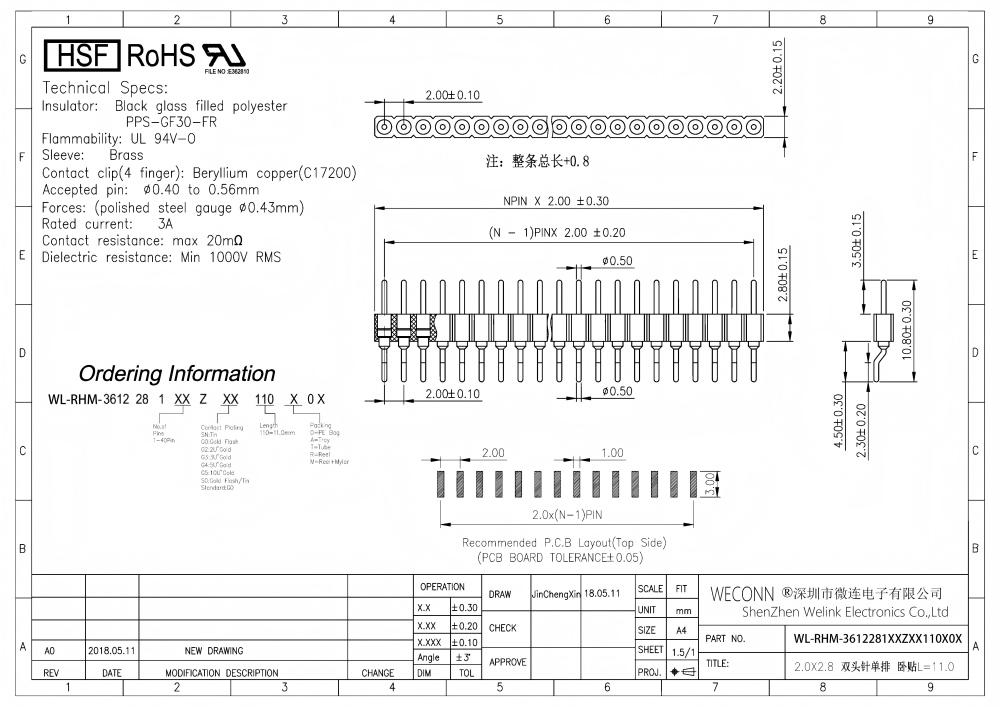

Drawing：
