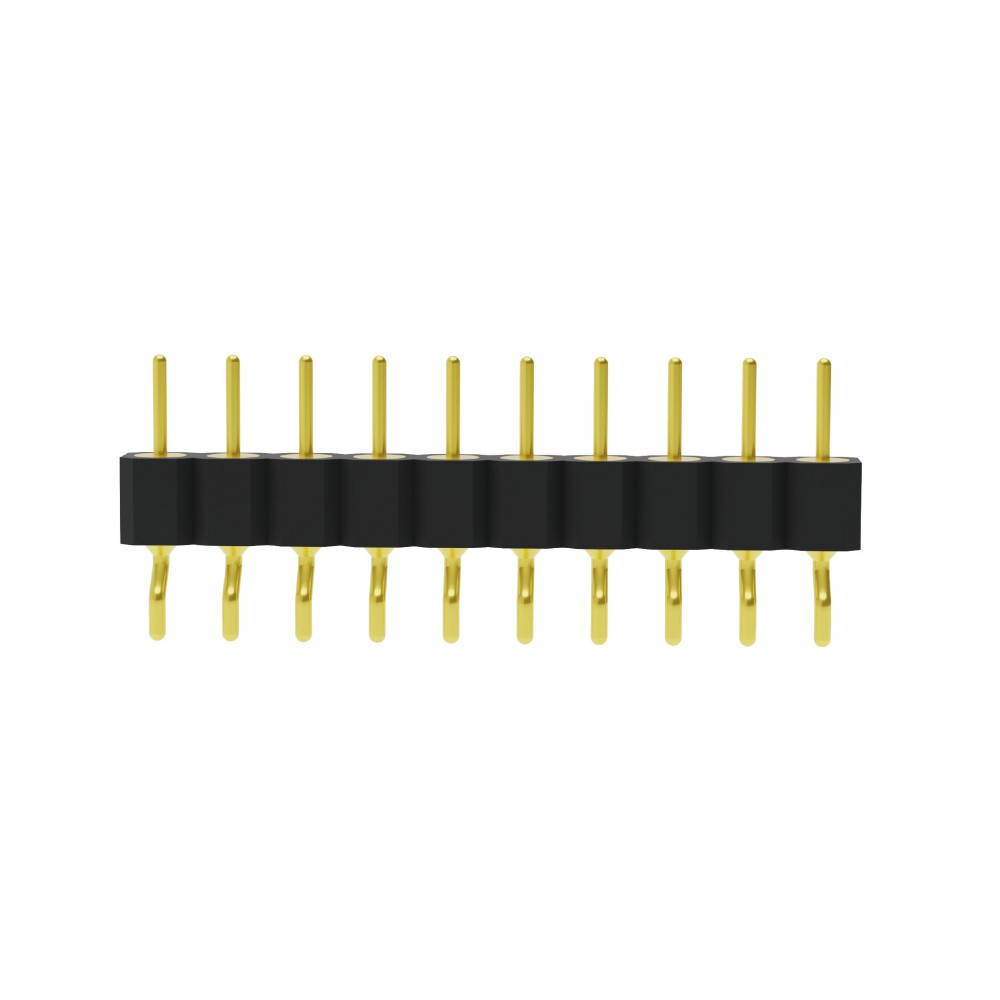

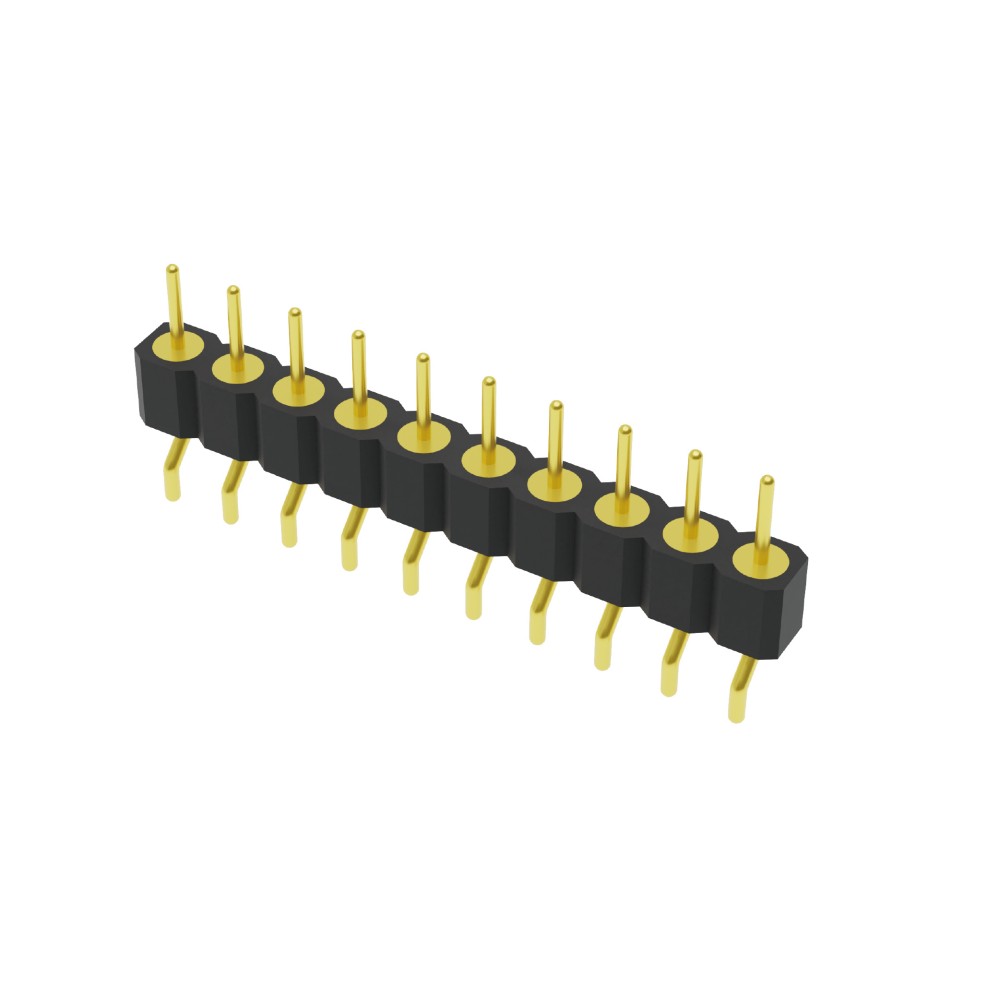

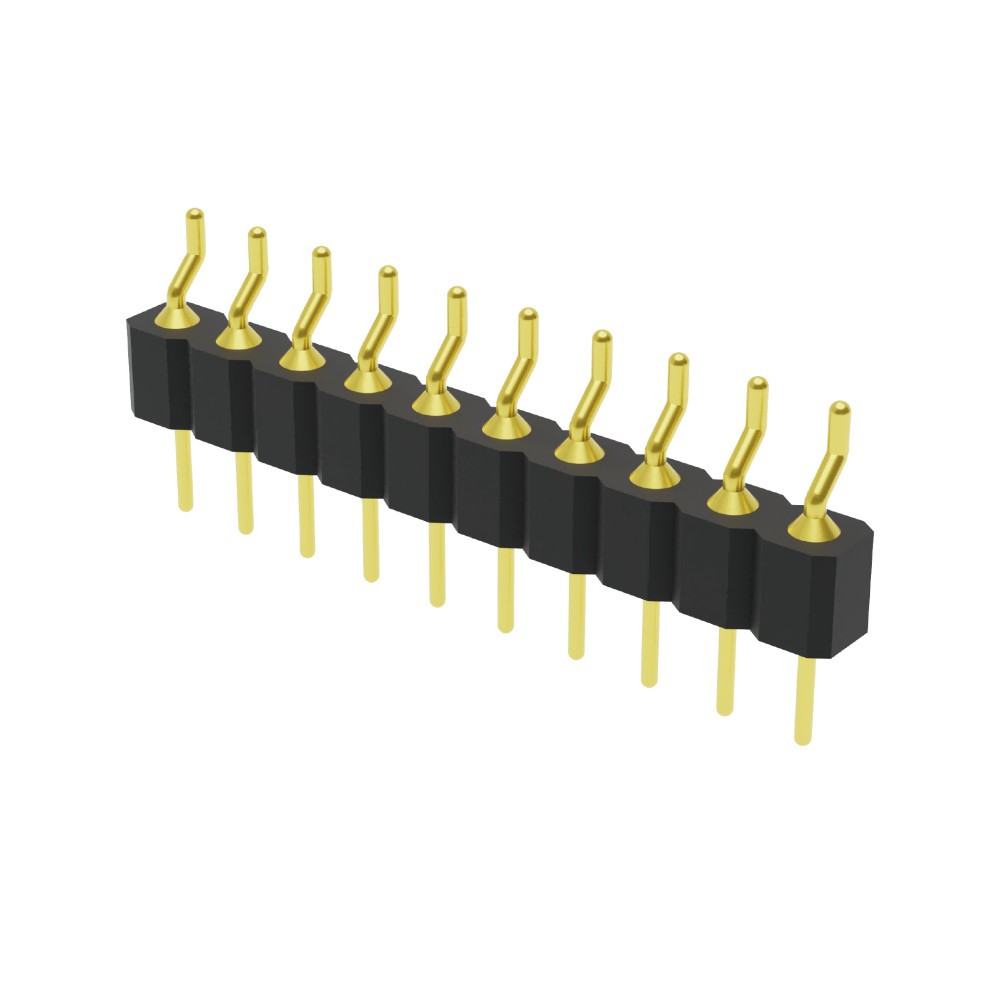

Round Pin Header

WL-RHM-3610301XXZXX1000X

Product name: Round Pin Header
Number:WL-RHM-3610301XXZXX1000X
Specifications: 2.54mm Round Hole Double End Pin / H3.0 / Single Row Horizontal Mount / L10.0
INQUIRY EMAIL

Technical parameters:

Masterials

Pin:Brass,machined, (H59-3)

Plating:Gold plated:1.25u"m/50u"nickel,full gold

Insulator body(black):PPS( UL94V-0)

Electrical

Current rating:3 Amps/contact max.

Contact resistance:20mΩ

Insulation resistance:1000MΩ

Operating voltage:60 AC/DC

Mechanical

Operating temperature :Gold plated:-55°C to +105°C

(Continuous) -67"H to +105"H

Tin plated:-40°C to +105°C

Soldering temperature:260°C,10s max

Product Description:

1. This Connector Is Widely Used In Mobile Phones, Tablet PCs, Navigators, LCD TVs, Automobiles, Aviation, Smart Wearable Devices, Etc.;
2. Inspection Of This Product Process Is: IQC Feed Inspection -> Into The Warehouse ->Before The On-Line Self-Test -> IPQC Inspection -> FQC Final Inspection -> OQC Out Of The Cargo Inspection
3. This Product Production Process is: On-Line Inspection - > Cutting Filament Ribbons-->Assembly Shell-->Electrical Test-->Flatness Test-->Positiveity Test-->Appearance Test-->FQC Test-->Into Storage

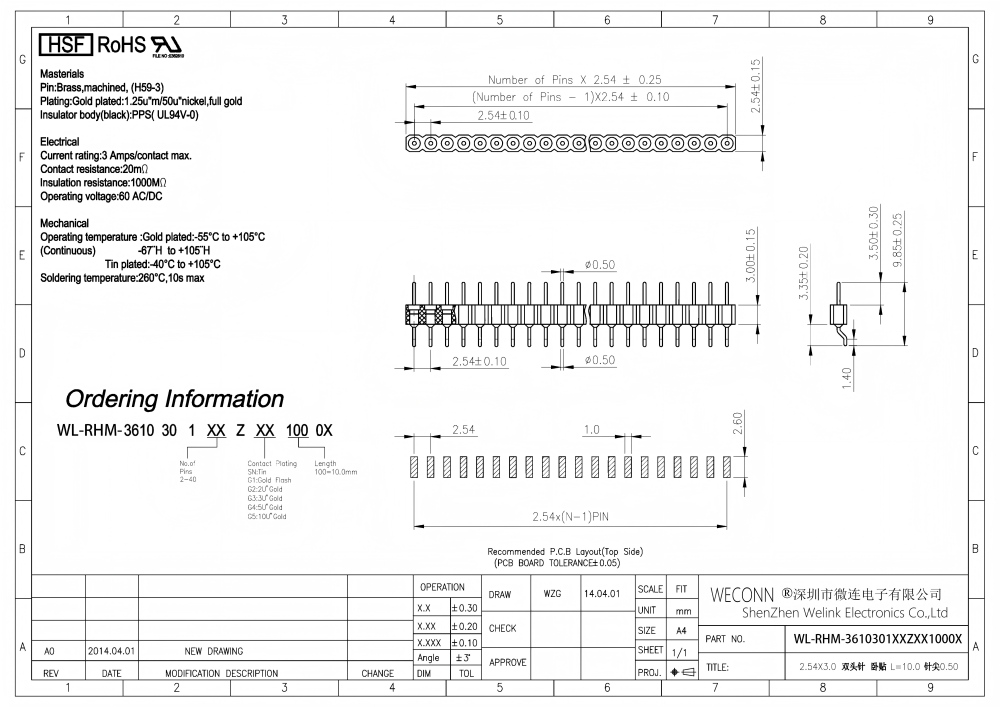

Drawing：
